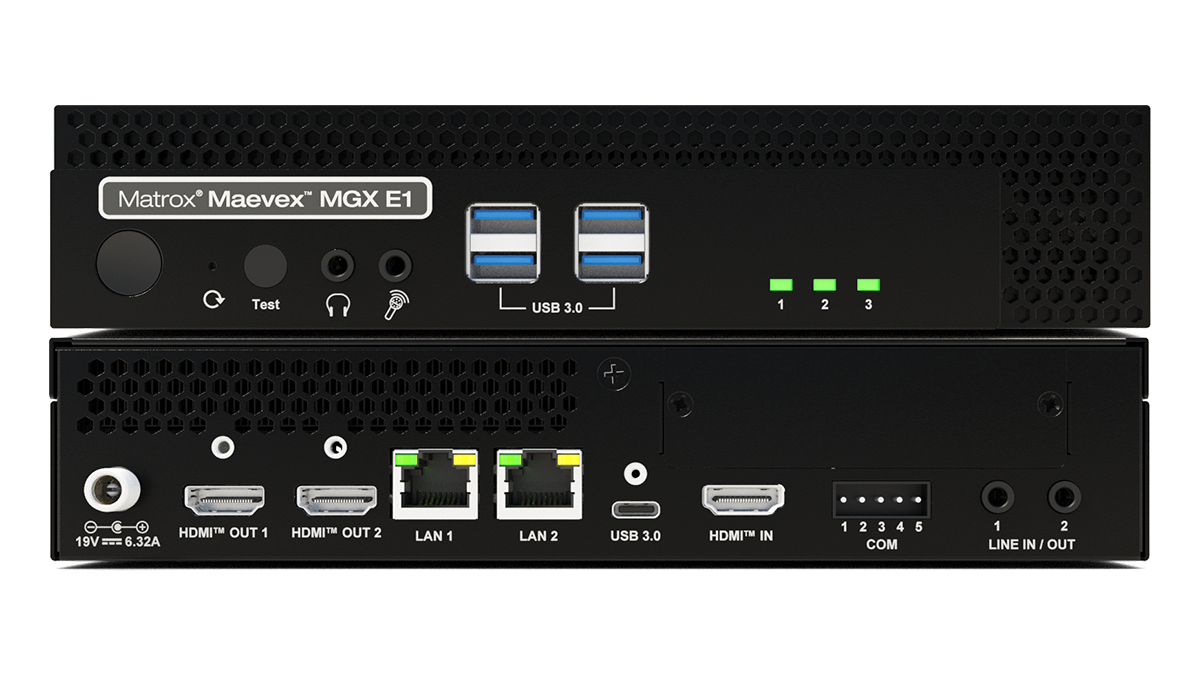

Maevex MGX E1 Encoder / MVX-MGXE1Y-EU
Model MVX-MGXE1Y-EUEAN 790750264097
22 specifications
- Weight1.22 kg
- ColourBlack
- Maximum video resolution3840 x 2160 pixels
- Built-in processorYes
- Power over Ethernet (PoE)No
- Width206 mm
Overview
- Weight
- 1.22 kg
- Colour
- Black
- Maximum video resolution
- 3840 x 2160 pixels
- Built-in processor
- Yes
- Power over Ethernet (PoE)
- No
- Width
- 206 mm
- Brand
- Matrox
- Category
- Video Servers/Encoders
- Model
- MVX-MGXE1Y-EU
- Part number
- MVX-MGXE1Y-EU
- EAN / UPC
- 790750264097
- Also known as
- Matrox Maevex MGX E1 Encoder / MVX-MGXE1Y-EU
Specifications
22 specifications in 9 groups
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 60 fps |
| Video compression formats | H.264, H.265 |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Web-based management | Yes |
| Firmware upgradeable | Yes |
| Resolution | 3840 x 2160 pixels |
| Frame rate | 60 fps |
| Bitrate at maximum video resolution | 100 Mbit/s |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Network
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 206 mm |
| Depth | 185 mm |
| Height | 46 mm |
| Weight | 1.22 kg |
Packaging content
| Specification | Value |
|---|---|
| Power adapter included | Yes |
| Bundled software | User interfaces: • Matrox Central Manager: Included app to discover, update and configure MGX devices. • Web UI: Main GUI for configuration and settings • NMOS IS-04 and IS-05 API: Discovery and routing of IPMX signals |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
