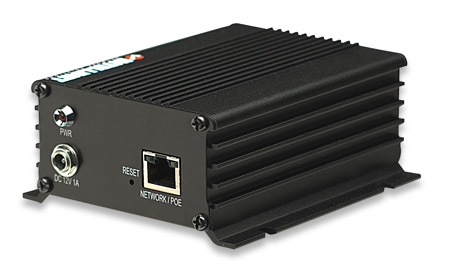

NVS30 video servers/encoder
704 x 576 pixels 30 fps
Model NVS30Part no. 550994EAN 766623550994
39 specifications
- Memory64 MB
- Weight900 g
- Maximum video resolution704 x 576 pixels
- Built-in processor32-bit ARM9 RISC CPU
- LED indicatorsPower
- Copper ethernet cabling technology100BASE-TX, 10BASE-T
Overview
- Memory
- 64 MB
- Weight
- 900 g
- Maximum video resolution
- 704 x 576 pixels
- Built-in processor
- 32-bit ARM9 RISC CPU
- LED indicators
- Power
- Copper ethernet cabling technology
- 100BASE-TX, 10BASE-T
- Brand
- Intellinet
- Category
- Video Servers/Encoders
- Model
- NVS30
- Part number
- 550994
- EAN / UPC
- 766623550994, 7666235509942
- Also known as
- Intellinet NVS30 video servers/encoder 704 x 576 pixels 30 fps
Specifications
39 specifications in 11 groups
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 704 x 576 pixels |
| Maximum frame rate | 30 fps |
| MPEG-4 frame rate | 30 fps |
| Motion JPEG frame rate | 30 fps |
| NTSC resolutions | 704 x 480, 352 x 240, 176 x 120 |
| PAL resolutions | 704 x 576, 352 x 288, 176 x 144 |
| Video compression formats | M-JPEG, MPEG4 |
Performance
| Specification | Value |
|---|---|
| Built-in processor | 32-bit ARM9 RISC CPU |
| Internal memory | 64 MB |
| Flash memory | 8 MB |
| PTZ control | Yes |
| Minimum RAM | 64 MB |
| Minimum processor | Pentium IV, 1.8 GHz |
| Compatible operating systems | Windows 2000/XP/Vista/7 Linux Mac OS X |
Design
| Specification | Value |
|---|---|
| LED indicators | Power |
| Wall mountable | Yes |
| Certification | FCC Class B, RoHS, CE |
Network
| Specification | Value |
|---|---|
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Power over Ethernet (PoE) | Yes |
| Supported network protocols | TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, HTTP, TCP, UDP, 3GPP / ISMA / RTSP, Bonjour |
| Wi-Fi | No |
Security
| Specification | Value |
|---|---|
| Security algorithms | HTTPS |

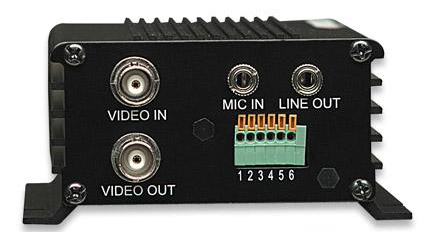

Ports & interfaces
| Specification | Value |
|---|---|
| Line-in | No |
| Line-out | Yes |
| BNC input ports | 1 |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| I/O terminal ports | 1 |
| Microphone in | Yes |
| RS-485 ports | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 5 W |
| Power requirements | 12 V DC, 1.0 A |
| Power consumption | 1000 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 100 x 110 x 45 mm |
| Weight | 900 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Technical details
| Specification | Value |
|---|---|
| Technical features | ISO/IEC 14496-2 IEEE 802.3af PoE |
Antenna
| Specification | Value |
|---|---|
| Antenna connector type | BNC |
