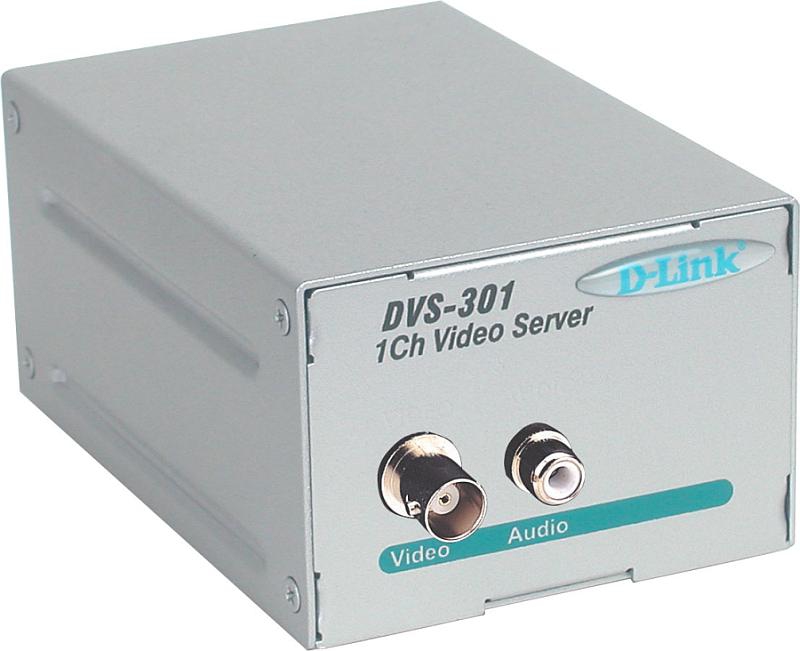

DVS-301 video servers/encoder
704 x 576 pixels 30 fps
Model DVS-301
27 specifications
- Memory16 MB
- Weight340 g
- Maximum video resolution704 x 576 pixels
- LED indicatorsLAN, Link, Yes
- Copper ethernet cabling technology100BASE-T, 100BASE-TX, 10BASE-T
- Video motion detectionYes
Overview
- Memory
- 16 MB
- Weight
- 340 g
- Maximum video resolution
- 704 x 576 pixels
- LED indicators
- LAN, Link, Yes
- Copper ethernet cabling technology
- 100BASE-T, 100BASE-TX, 10BASE-T
- Video motion detection
- Yes
- Brand
- D-Link
- Category
- Video Servers/Encoders
- Model
- DVS-301
- Part number
- DVS-301
- Also known as
- D-Link DVS-301 video servers/encoder 704 x 576 pixels 30 fps
Specifications
27 specifications in 9 groups
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 704 x 576 pixels |
| Maximum frame rate | 30 fps |
| NTSC resolutions | 704 x 480 pixels |
| PAL resolutions | 704 x 576 pixels |
Performance
| Specification | Value |
|---|---|
| Internal memory | 16 MB |
| Flash memory | 2 MB |
| PTZ control | Yes |
| Minimum system requirements | IE 4.0+ |
| Compatible operating systems | Windows 98 SE Windows ME Windows NT 4.0 Windows 2000 Windows XP |
Design
| Specification | Value |
|---|---|
| LED indicators | LAN, Link, Yes |
| Certification | FCC, CE, CNS |
Network
| Specification | Value |
|---|---|
| Copper ethernet cabling technology | 100BASE-T, 100BASE-TX, 10BASE-T |
| Supported network protocols | TCP/IP, HTTP, SMTP, FTP, Telnet, NTP, DNS, DHCP |
| Wi-Fi | No |
Security
| Specification | Value |
|---|---|
| Video motion detection | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC input ports | 1 |
| I/O terminal ports | 2 |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 4 W |
| Power requirements | 100 - 240V, 50/60Hz |
| Power consumption | 400 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 122.9 x 72.3 x 50 mm |
| Weight | 340 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
