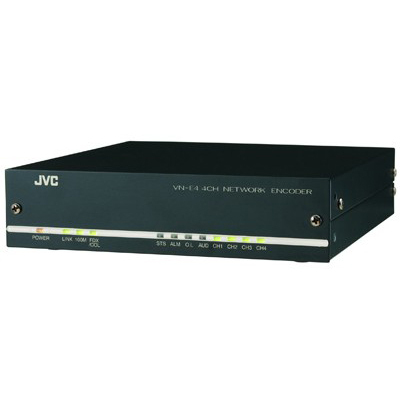

VN-E4E video servers/encoder 30 fps
Model VN-E4E
24 specifications
- Memory2 MB
- Maximum frame rate30 fps
- Wi-FiYes
- Power requirementsDC 5 V (AC)
- Operating temperature (T-T)0 - 40 °C
Overview
- Memory
- 2 MB
- Maximum frame rate
- 30 fps
- Wi-Fi
- Yes
- Power requirements
- DC 5 V (AC)
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- JVC
- Category
- Video Servers/Encoders
- Model
- VN-E4E
- Part number
- VN-E4E
- Also known as
- JVC VN-E4E video servers/encoder 30 fps
Specifications
24 specifications in 8 groups
Video
| Specification | Value |
|---|---|
| Maximum frame rate | 30 fps |
| PAL resolutions | 640 x 480 pixels |
| Video compression formats | M-JPEG, MPEG4 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 2 MB |
| Minimum RAM | 1024 MB |
| Minimum processor | Pentium IV 1.5 GHz/3.4 GHz |
| Minimum system requirements | >20 MB HDD 1600 x 1200@24/32bit Sound Card |
| Compatible operating systems | Windows XP Pro (SP2) / Home (SP2) |
Network
| Specification | Value |
|---|---|
| Supported network protocols | UDP / IP, TCP / IP, HTTP, FTP, DHCP, IGMP, ARP |
| Wi-Fi | Yes |
Security
| Specification | Value |
|---|---|
| Video motion detection | Yes |

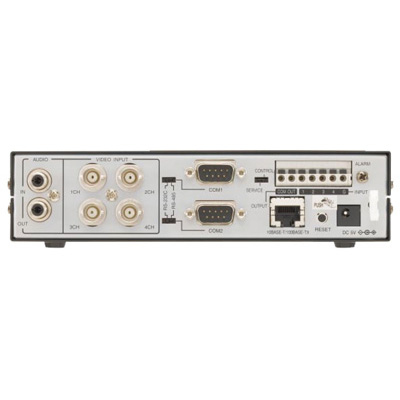

Ports & interfaces
| Specification | Value |
|---|---|
| Line-in | Yes |
| Line-out | Yes |
| BNC input ports | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| I/O terminal ports | 5 |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
| VGA (D-Sub) ports quantity | 2 |
Power
| Specification | Value |
|---|---|
| Power requirements | DC 5 V (AC) |
| Power consumption | 3000 mA |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 189 x 185 x 44 mm |
| Package weight | 1.1 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
