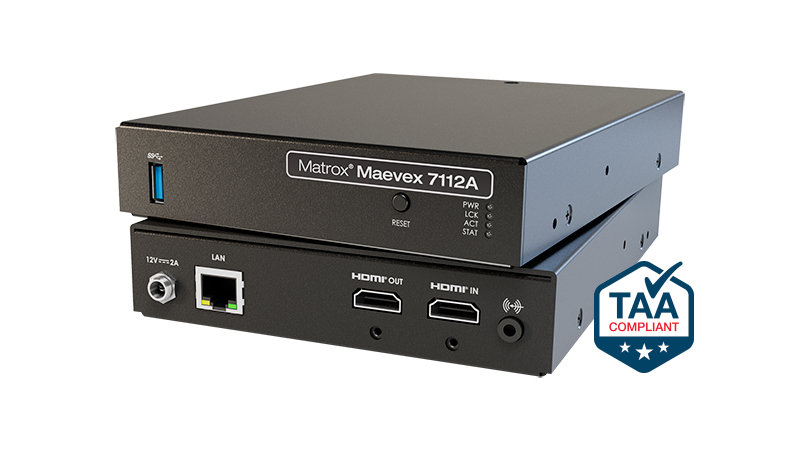

Maevex 7112A Single-Channel 4K H.264 Encoder
Model MVX-E7112A-1EAN 790750261539
28 specifications
- Weight350 g
- Maximum video resolution3840 x 2160 pixels
- HDD interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-A
- Copper ethernet cabling technology1000BASE-T
- HDMI input ports quantity1
- Input voltage12 V
Overview
- Weight
- 350 g
- Maximum video resolution
- 3840 x 2160 pixels
- HDD interface
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- Copper ethernet cabling technology
- 1000BASE-T
- HDMI input ports quantity
- 1
- Input voltage
- 12 V
- Brand
- Matrox
- Category
- Video Servers/Encoders
- Model
- MVX-E7112A-1
- Part number
- MVX-E7112A-1
- EAN / UPC
- 790750261539
- Also known as
- Matrox Maevex 7112A Single-Channel 4K H.264 Encoder
Specifications
28 specifications in 8 groups
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 60 fps |
| Video compression formats | AVC, H.264 |
Performance
| Specification | Value |
|---|---|
| HDD interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Audio compression formats | AAC |
| Web-based management | Yes |
| Firmware upgradeable | Yes |
| Compatible operating systems | Matrox PowerStream Plus Sofware (free download): Microsoft® Server® 2022, Windows® Server® 2019, Windows® 11, Windows® 10 |
Network
| Specification | Value |
|---|---|
| Copper ethernet cabling technology | 1000BASE-T |
| Networking standards | IEEE 802.1x |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| HDMI version | 2.0 |
| Audio connector type | 3.5 mm (1/8") |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 V |
| Power consumption (typical) | 12 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 217 mm |
| Depth | 191 mm |
| Height | 43 mm |
| Weight | 350 g |
Packaging content
| Specification | Value |
|---|---|
| Power adapter included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
