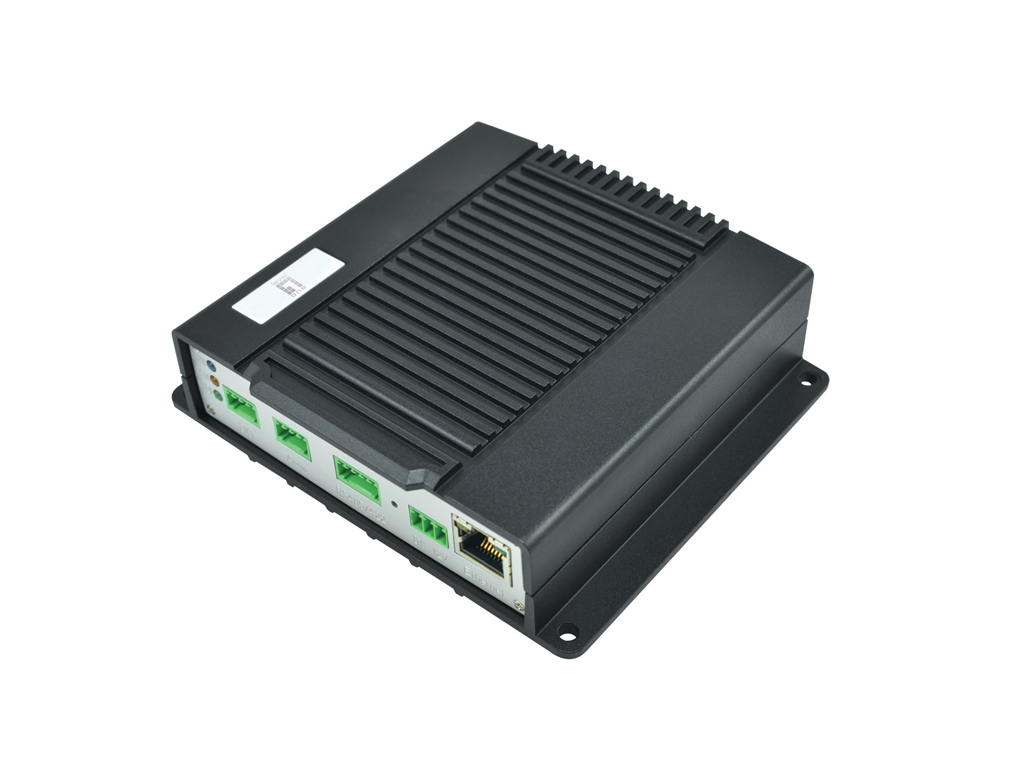

HUBBLE 4-Channel Video Encoder, 802.3af PoE
Model FCS-7004EAN 4015867190319
27 specifications
- Weight462 g
- Maximum video resolution960 x 480 pixels
- Card reader integratedYes
- Networking standardsIEEE 802.3af
- BNC input ports4
- Width137 mm
Overview
- Weight
- 462 g
- Maximum video resolution
- 960 x 480 pixels
- Card reader integrated
- Yes
- Networking standards
- IEEE 802.3af
- BNC input ports
- 4
- Width
- 137 mm
- Brand
- LevelOne
- Category
- Video Servers/Encoders
- Model
- FCS-7004
- Part number
- FCS-7004
- EAN / UPC
- 4015867190319, 5050914961305
- Also known as
- LevelOne HUBBLE 4-Channel Video Encoder, 802.3af PoE
Specifications
27 specifications in 10 groups
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 960 x 480 pixels |
| Maximum frame rate | 30 fps |
| Channels quantity | 4 channels |
| NTSC resolutions | 960 x 480, pixels |
| PAL resolutions | 960 x 576, 720 x 576 pixels |
| Video compression formats | H.264, M-JPEG |
Performance
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| PTZ control | Yes |
Design
| Specification | Value |
|---|---|
| Certification | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3af |
| Power over Ethernet (PoE) | Yes |
Security
| Specification | Value |
|---|---|
| Video motion detection | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC input ports | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| I/O terminal ports | 3 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 137 mm |
| Depth | 122 mm |
| Height | 36 mm |
| Weight | 462 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 200 mm |
| Package depth | 90 mm |
| Package height | 200 mm |
| Package weight | 146 g |
Packaging content
| Specification | Value |
|---|---|
| Resource CD | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 10 - 85% |
