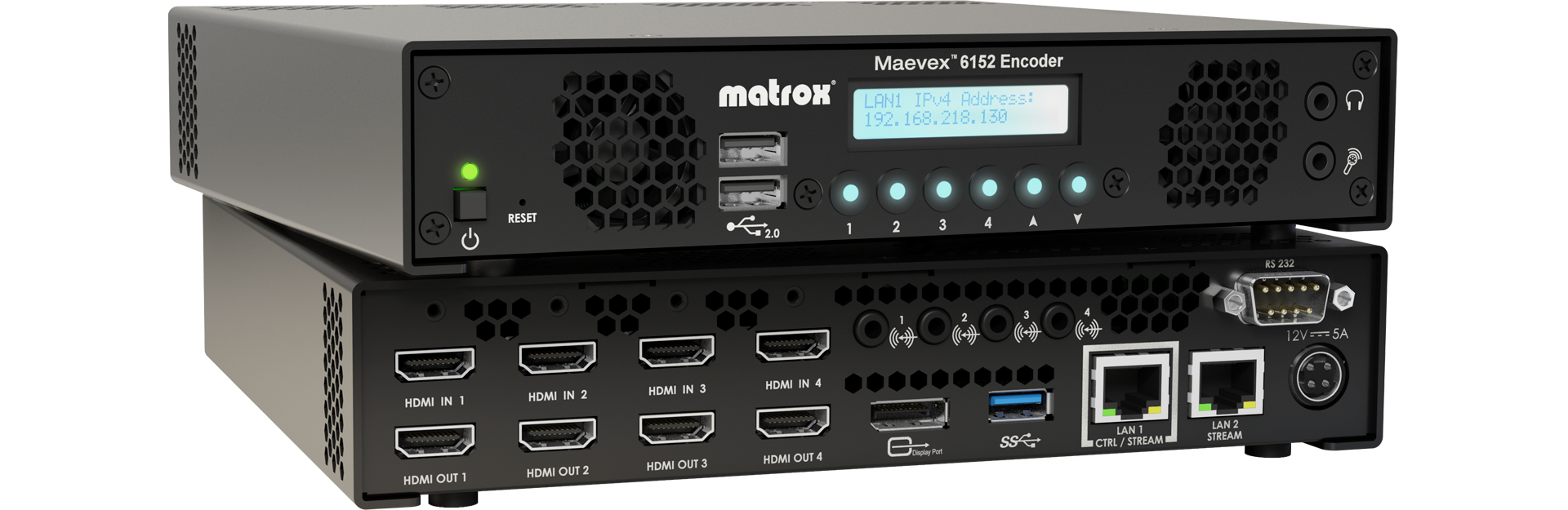

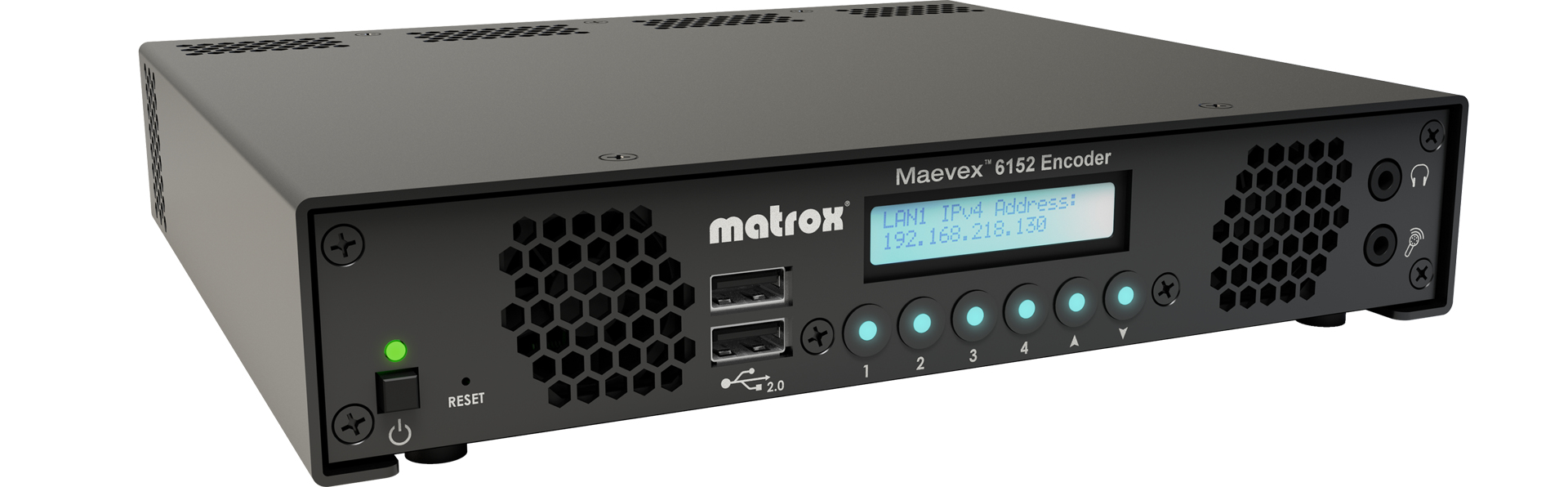

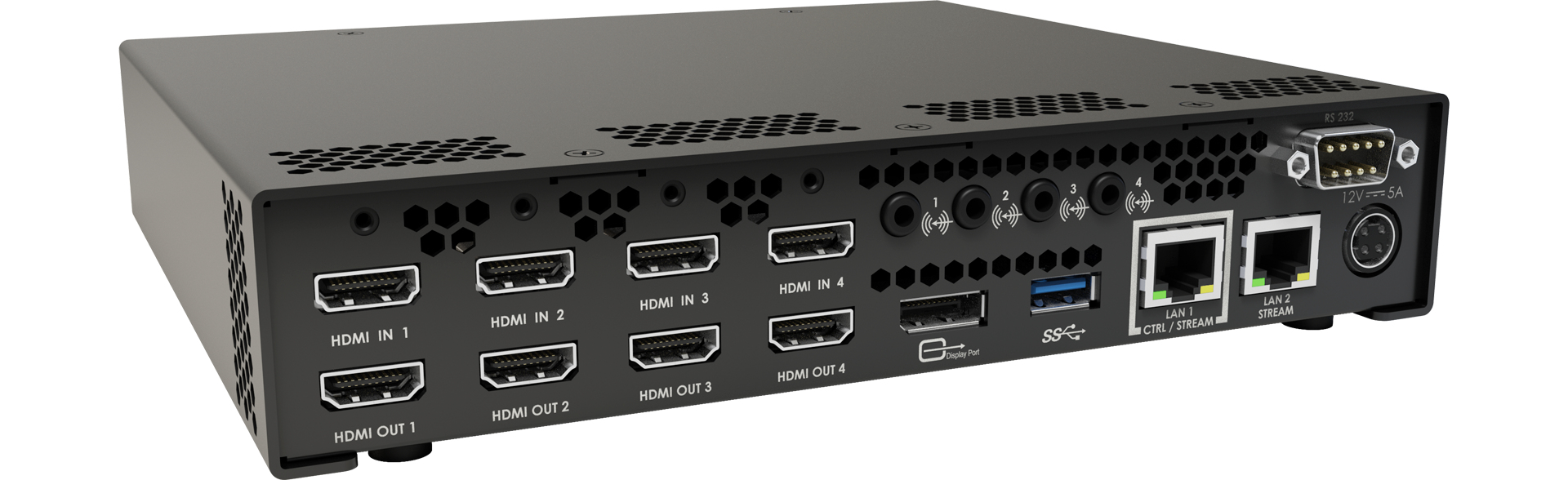

Maevex 6152 Quad 4K Enterprise Encoder Appliance / MVX-E6152-42
Model MVX-E6152-42EAN 790750260808
13 specifications
- ColourBlack
- Maximum video resolution3840 x 2160 pixels
- Firmware upgradeableYes
- Copper ethernet cabling technology100BASE-T, 1000BASE-T
- HDMI input ports quantity4
- Power consumption (typical)45 W
Overview
- Colour
- Black
- Maximum video resolution
- 3840 x 2160 pixels
- Firmware upgradeable
- Yes
- Copper ethernet cabling technology
- 100BASE-T, 1000BASE-T
- HDMI input ports quantity
- 4
- Power consumption (typical)
- 45 W
- Brand
- Matrox
- Category
- Video Servers/Encoders
- Model
- MVX-E6152-42
- Part number
- MVX-E6152-42
- EAN / UPC
- 790750260808
- Also known as
- Matrox Maevex 6152 Quad 4K Enterprise Encoder Appliance / MVX-E6152-42
Specifications
13 specifications in 8 groups
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 60 fps |
| Video compression formats | H.264 |
Performance
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Network
| Specification | Value |
|---|---|
| Copper ethernet cabling technology | 100BASE-T, 1000BASE-T |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 4 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 45 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 217 x 189 x 43 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
