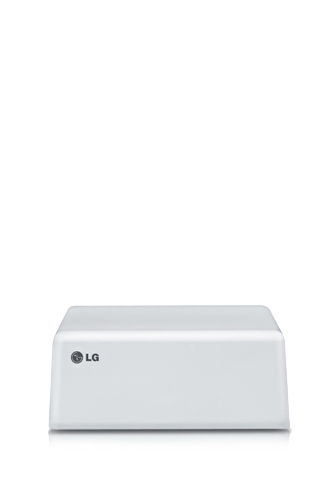

LVS201 video servers/encoder
Model LVS201
16 specifications
- Weight204 g
- Motion JPEG frame rate30 fps
- Resolution704 x 480 pixels
- Copper ethernet cabling technology100BASE-TX
- Password protection typeYes
- RS-422 ports1
Overview
- Weight
- 204 g
- Motion JPEG frame rate
- 30 fps
- Resolution
- 704 x 480 pixels
- Copper ethernet cabling technology
- 100BASE-TX
- Password protection type
- Yes
- RS-422 ports
- 1
- Brand
- LG
- Category
- Video Servers/Encoders
- Model
- LVS201
- Part number
- LVS201
- Also known as
- LG LVS201 video servers/encoder
Specifications
16 specifications in 8 groups
Video
| Specification | Value |
|---|---|
| Motion JPEG frame rate | 30 fps |
| NTSC resolutions | 704 x 480 pixels |
| PAL resolutions | 704 x 576 pixels |
| Video compression formats | M-JPEG, MPEG4 |
Performance
| Specification | Value |
|---|---|
| Resolution | 704 x 480 pixels |
Network
| Specification | Value |
|---|---|
| Copper ethernet cabling technology | 100BASE-TX |
| Supported network protocols | TCP/IP(IPv4), HTTP, HTTPS, RTP, RTSP, UDP, DHCP, FTP, SMTP, NTP, ARP, ICMP, DDNS(LG) |
Security
| Specification | Value |
|---|---|
| Password protection type | Yes |
| Security algorithms | HTTPS |
| Video motion detection | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| RS-422 ports | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 3 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 41 x 91 x 100 mm |
| Weight | 204 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 0 - 80% |
