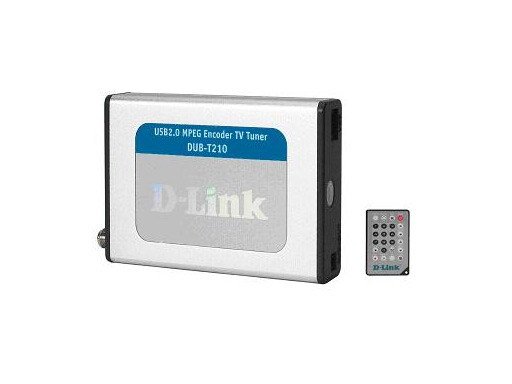

D-Link DUB-T210 video servers/encoder: Full Specifications

Overview

Weight: 168.6 g
Maximum video resolution: 720 x 576 pixels
Image settings: Brightness, Color, Contrast
Certification: FCC, CE, C-Tick
Dimensions (WxDxH): 111 x 70 x 22 mm
Operating temperature (T-T): 0 - 55 °C

Brand: D-Link
Category: Video Servers/Encoders
Model: DUB-T210
Part number: DUB-T210
Also known as: D-Link DUB-T210 video servers/encoder 720 x 576 pixels 30 fps

Specifications

16 specifications in 6 groups

Video

Specification	Value
Maximum video resolution	720 x 576 pixels
Maximum frame rate	30 fps
NTSC resolutions	720 x 480 pixels
PAL resolutions	720 x 576 pixels

Performance

Specification	Value
Image settings	Brightness, Color, Contrast
Minimum RAM	256 MB
Minimum processor	1.2 GHz
Minimum system requirements	DirectX 8.1+ CD-ROM USB 2.0
Compatible operating systems	Windows 2000 SP4 Windows XP

Design

Specification	Value
Certification	FCC, CE, C-Tick

Weight & dimensions

Specification	Value
Dimensions (WxDxH)	111 x 70 x 22 mm
Weight	168.6 g

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-35 - 75 °C
Operating relative humidity (H-H)	10 - 90%

Technical details

Specification	Value
I/O ports	1 x USB 2.0 1 x S-Video
