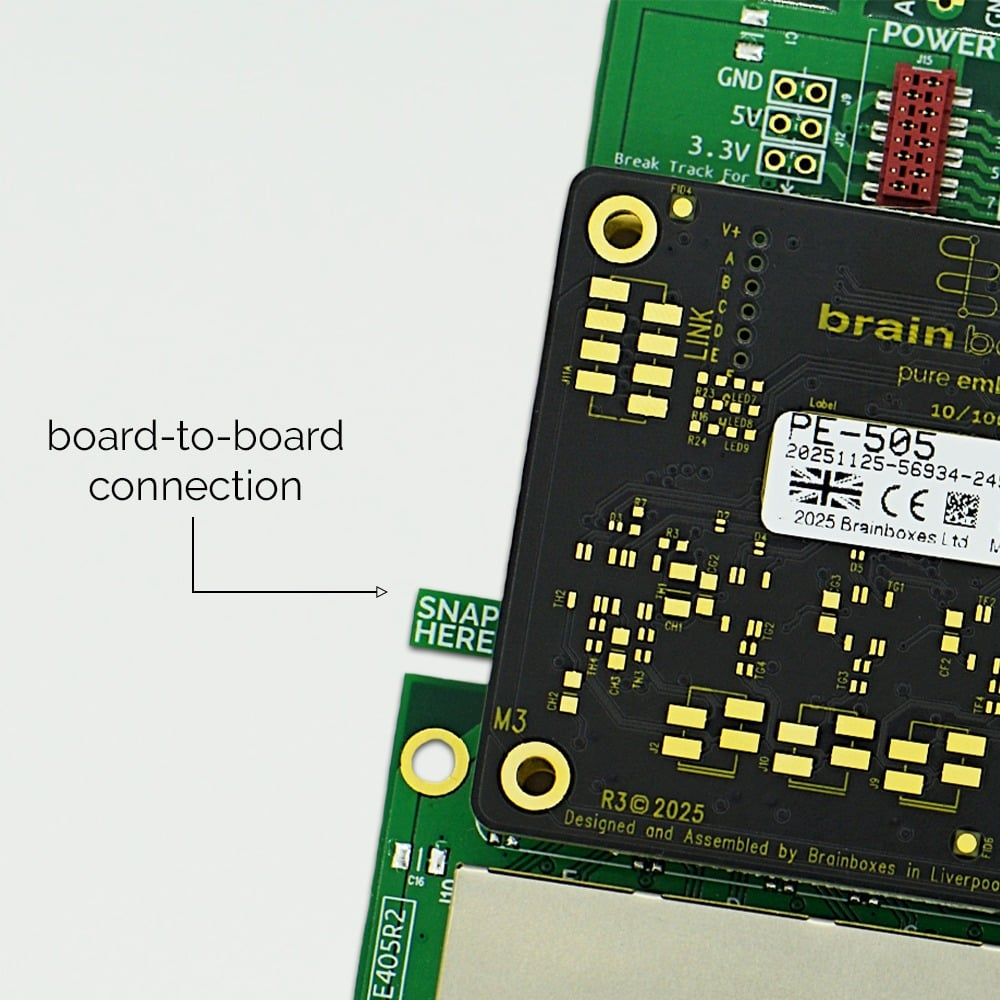

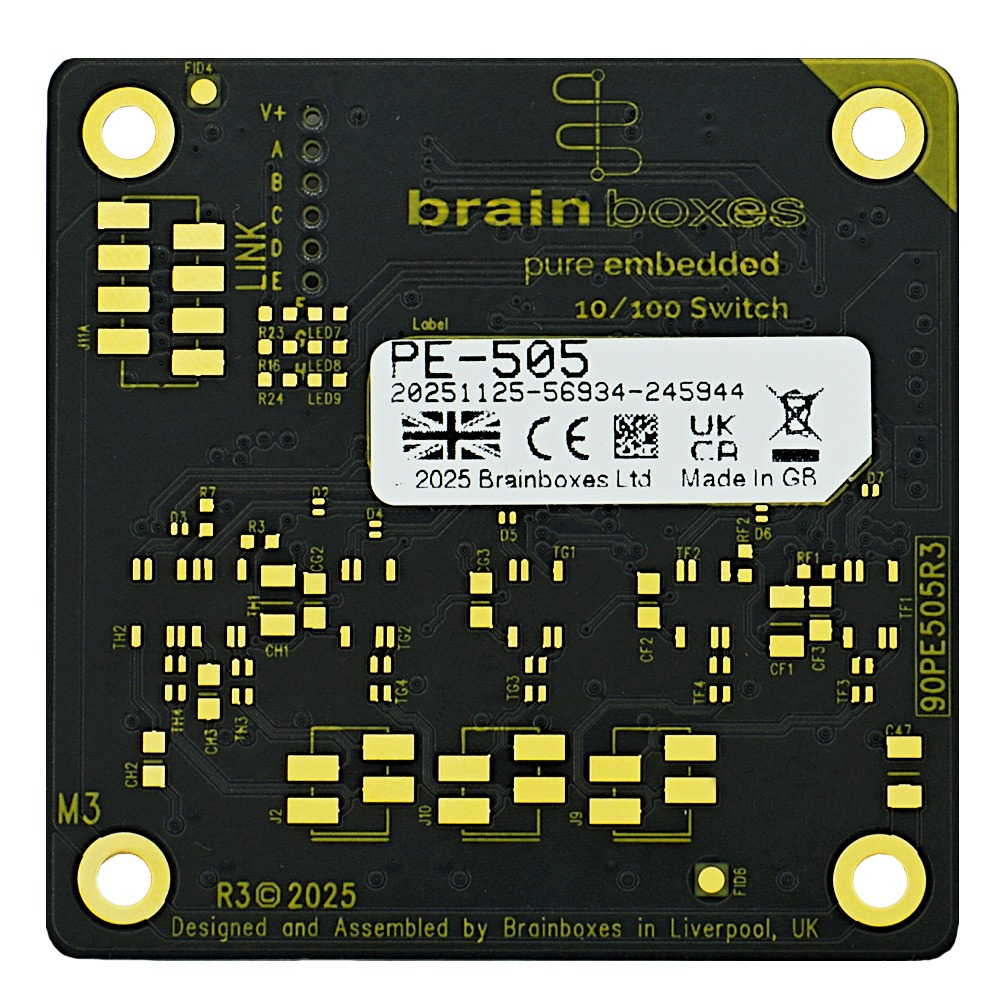

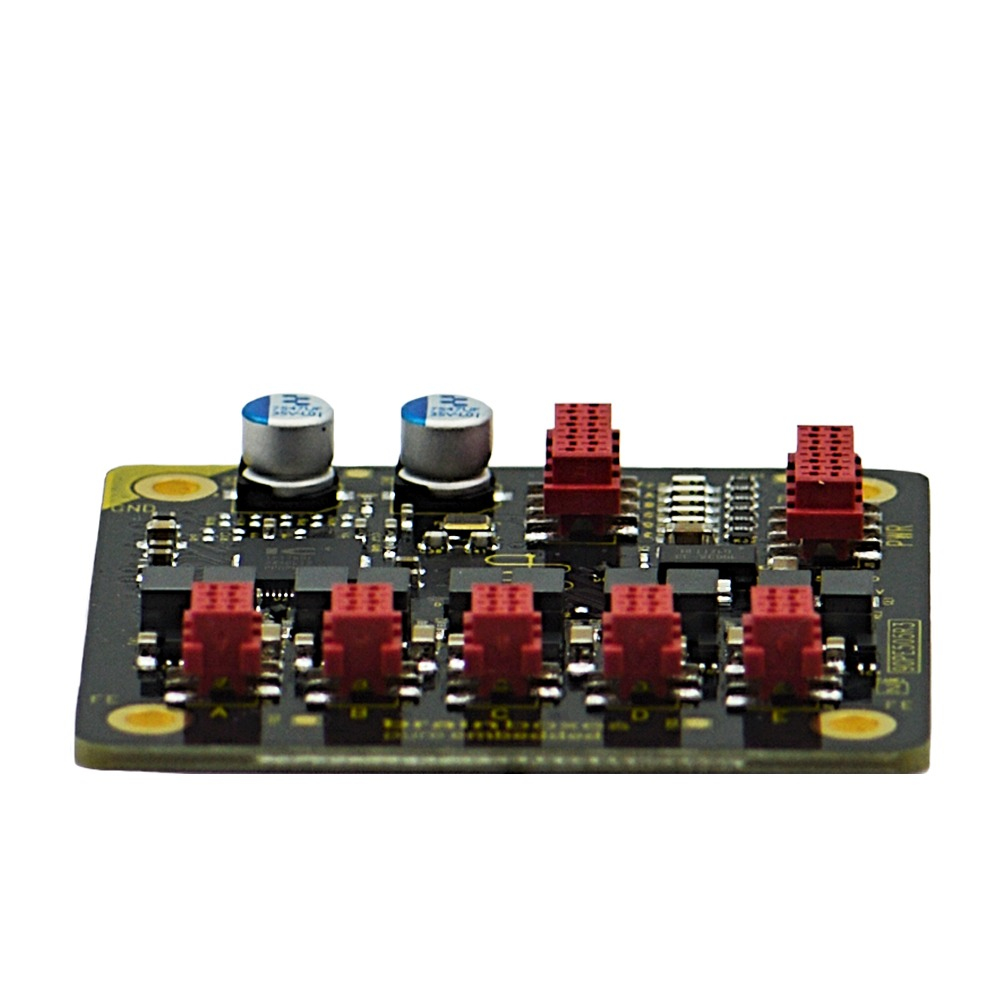

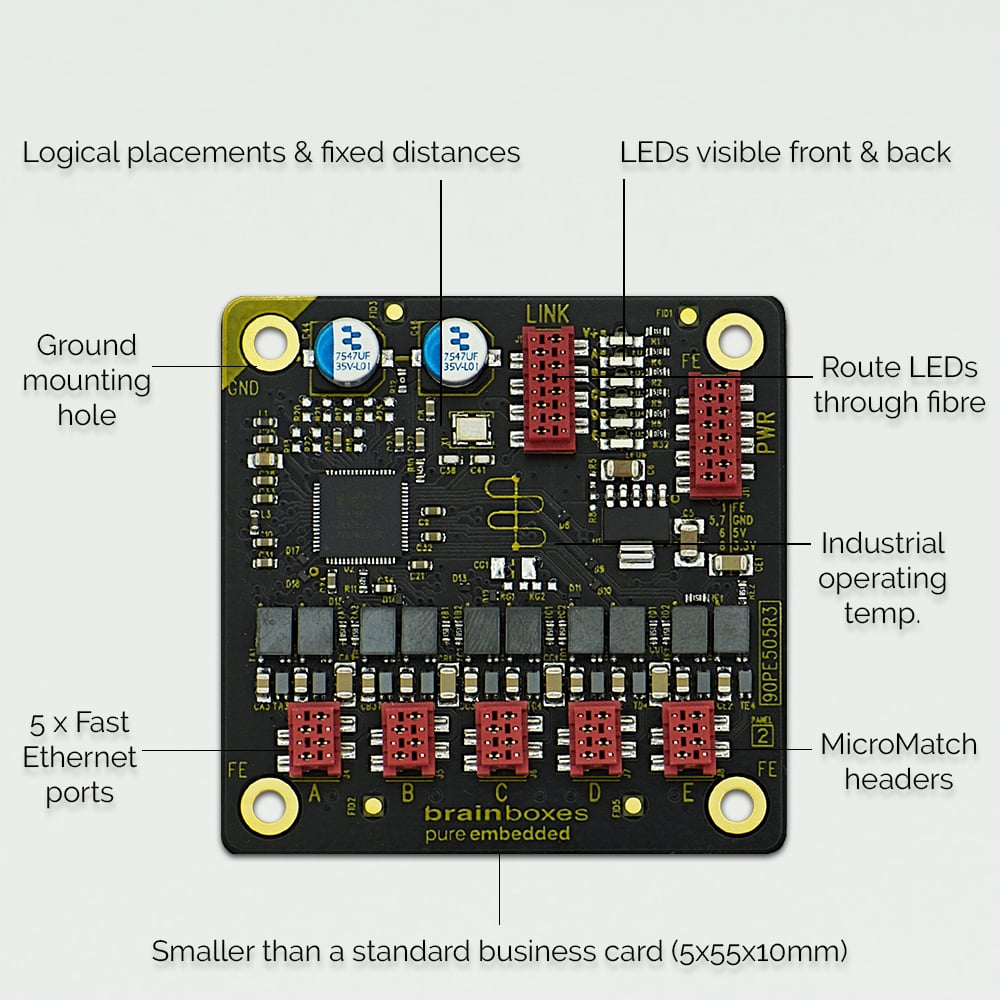

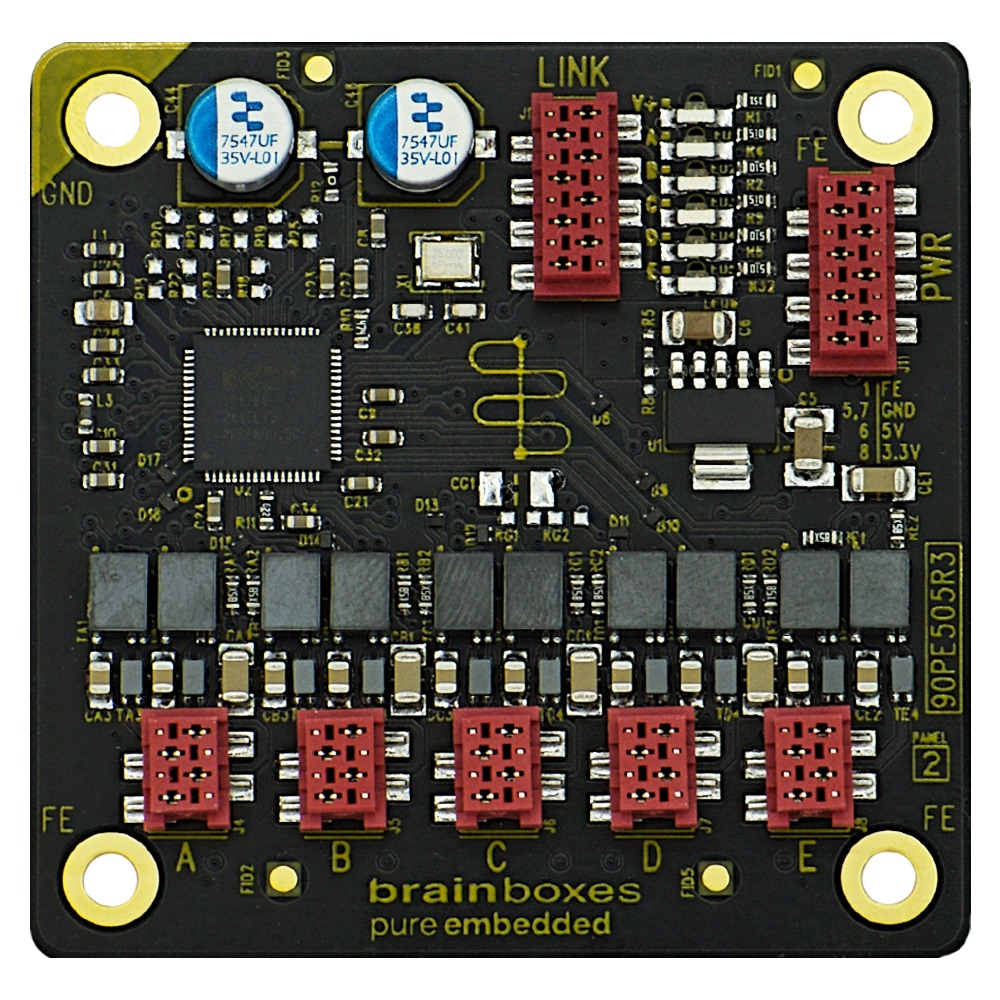

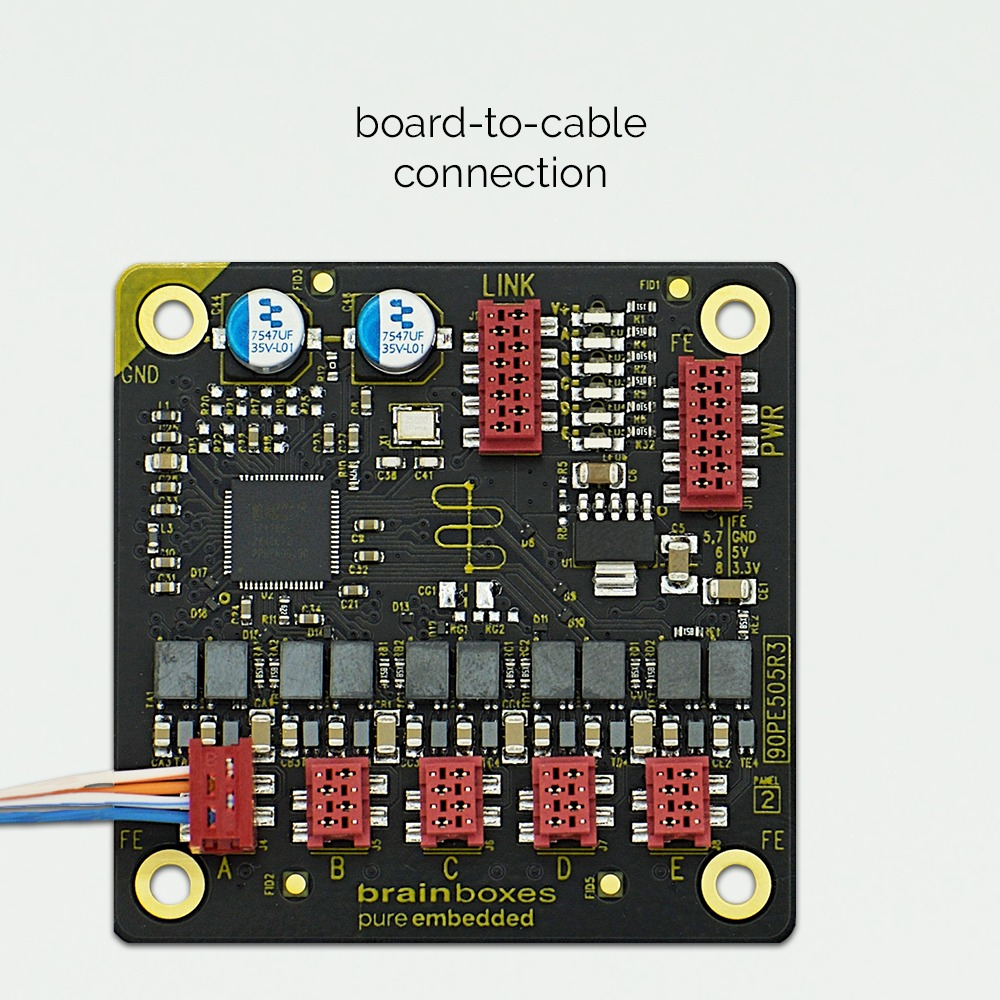

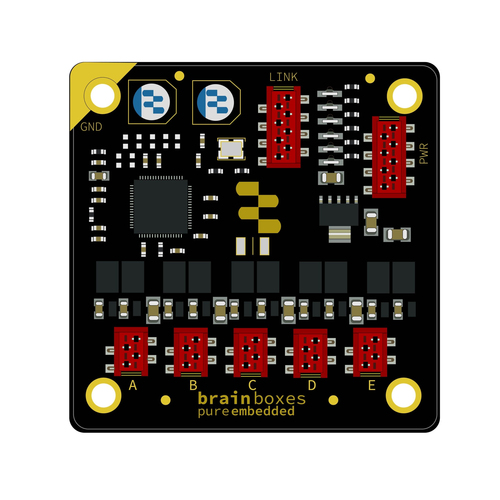

Pure Embedded 5 Port 10/100 Ethernet Switch Module
Model PE-505EAN 837324004960
32 specifications
- TypeEmbedded
- Weight18 g
- ColourMulticolour
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
Overview
- Type
- Embedded
- Weight
- 18 g
- Colour
- Multicolour
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- Brand
- Brainboxes
- Category
- Network Switch
- Model
- PE-505
- Part number
- PE-505
- EAN / UPC
- 837324004960
- Also known as
- Brainboxes Pure Embedded 5 Port 10/100 Ethernet Switch Module
Specifications
32 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Ethernet LAN data rates | 10,100 Mbit/s |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Form factor | Embedded |
| Product colour | Multicolour |
Performance
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | 5A991.b |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| DC input voltage | 3.3 V |
| Power consumption (max) | 2.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |

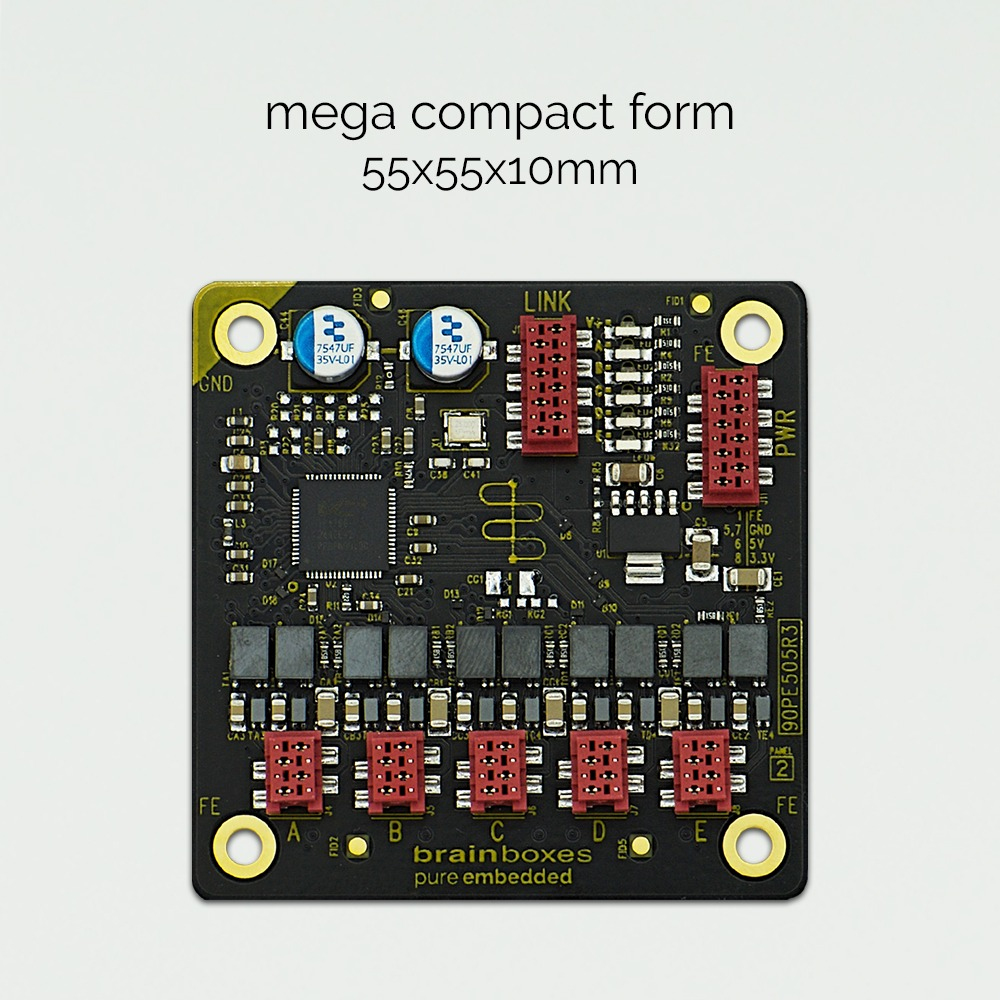

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 55 mm |
| Depth | 55 mm |
| Height | 7.1 mm |
| Weight | 18 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 90 mm |
| Package depth | 100 mm |
| Package height | 30 mm |
| Package weight | 27 g |

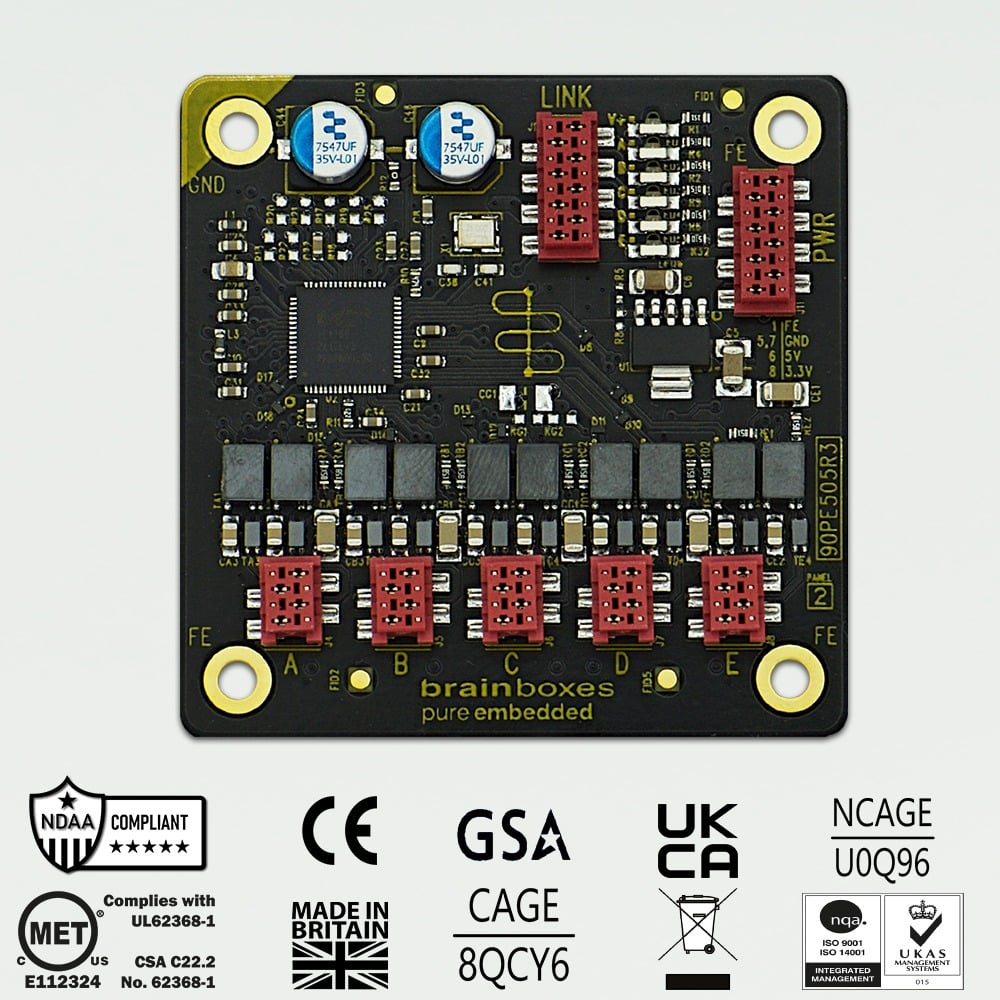

Certificates
| Specification | Value |
|---|---|
| Certification | CE, UKCA, RoHS, REACH, WEEE |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United Kingdom |
| Harmonized System (HS) code | 851762 |
