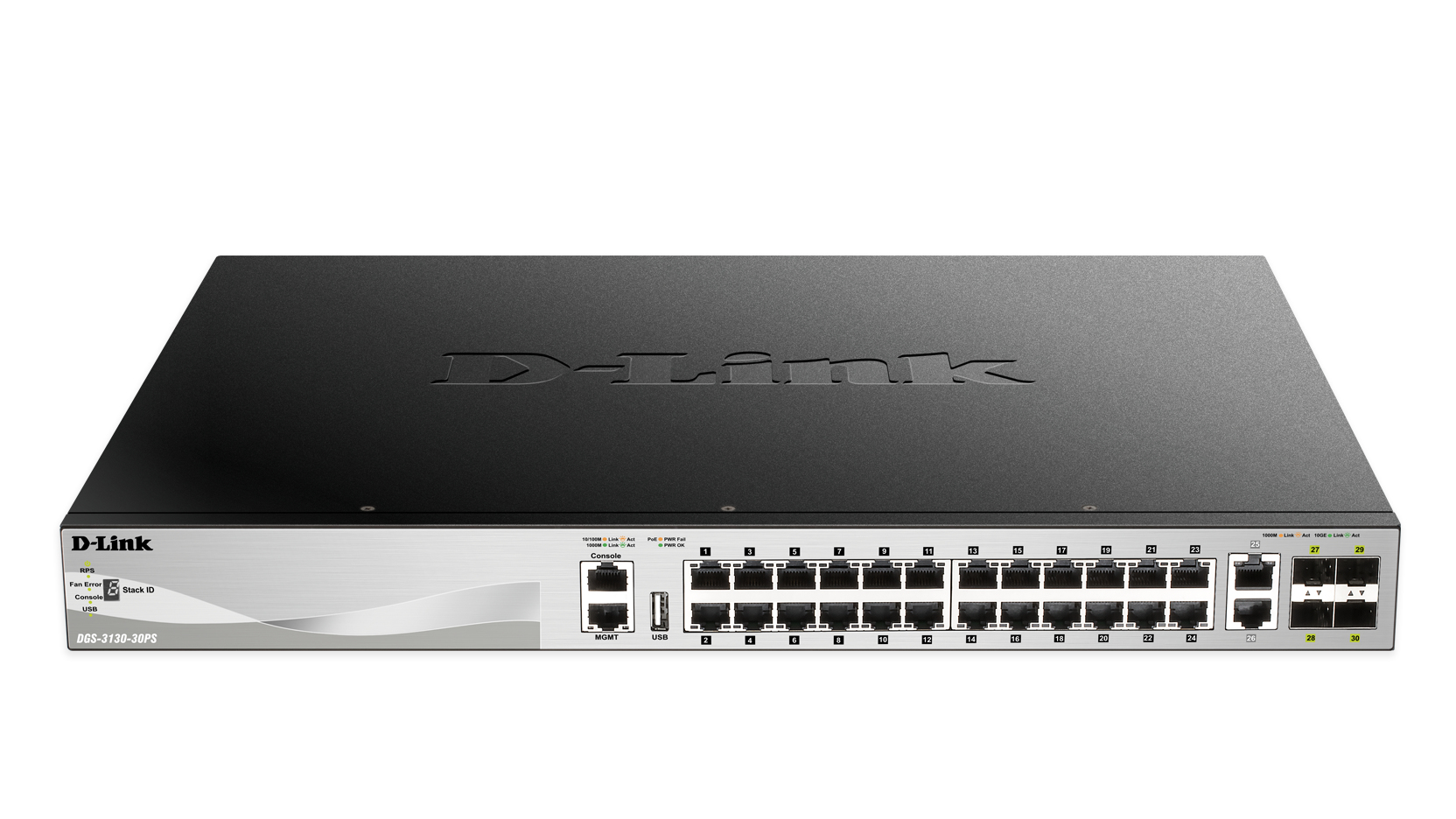

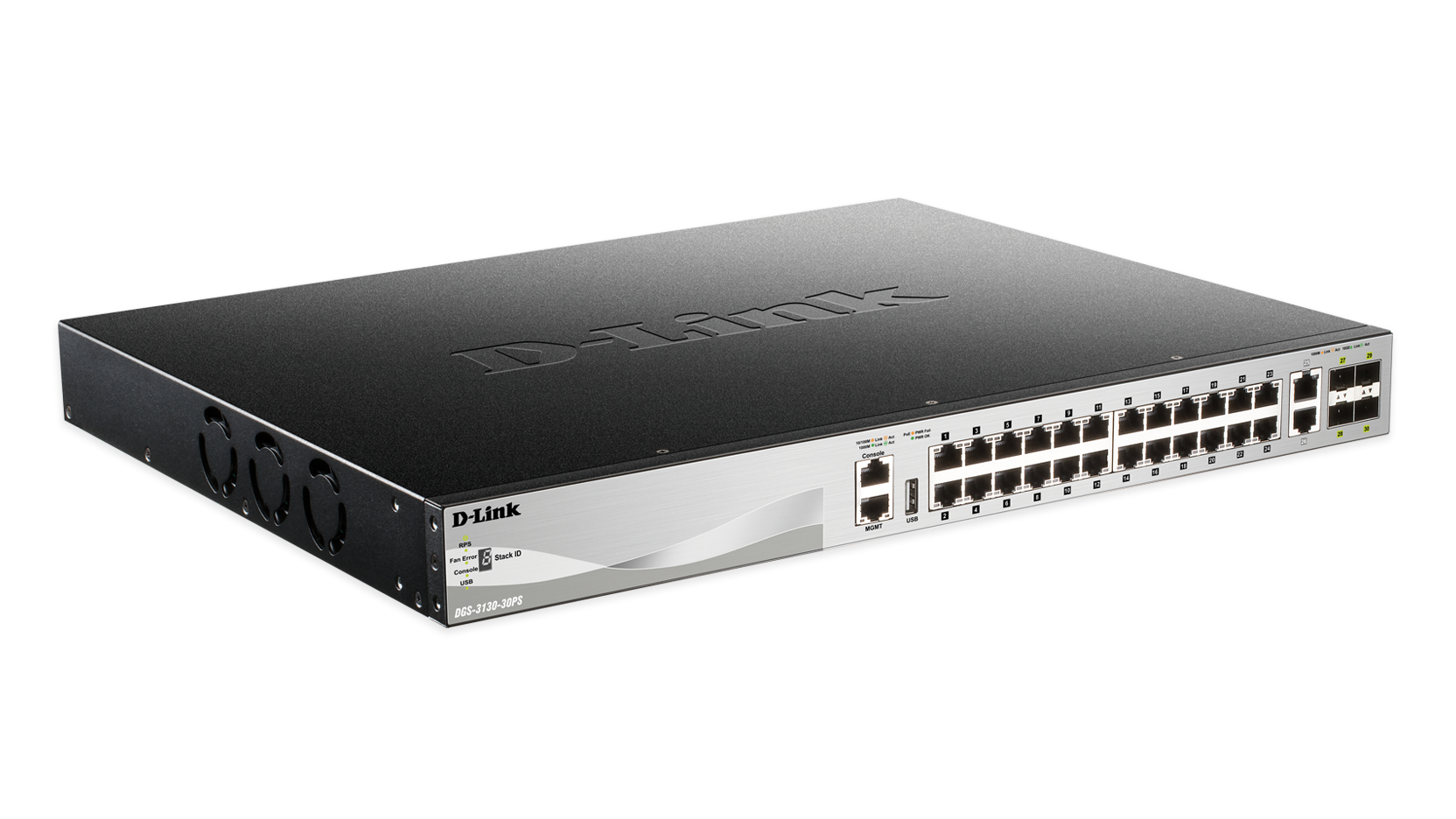

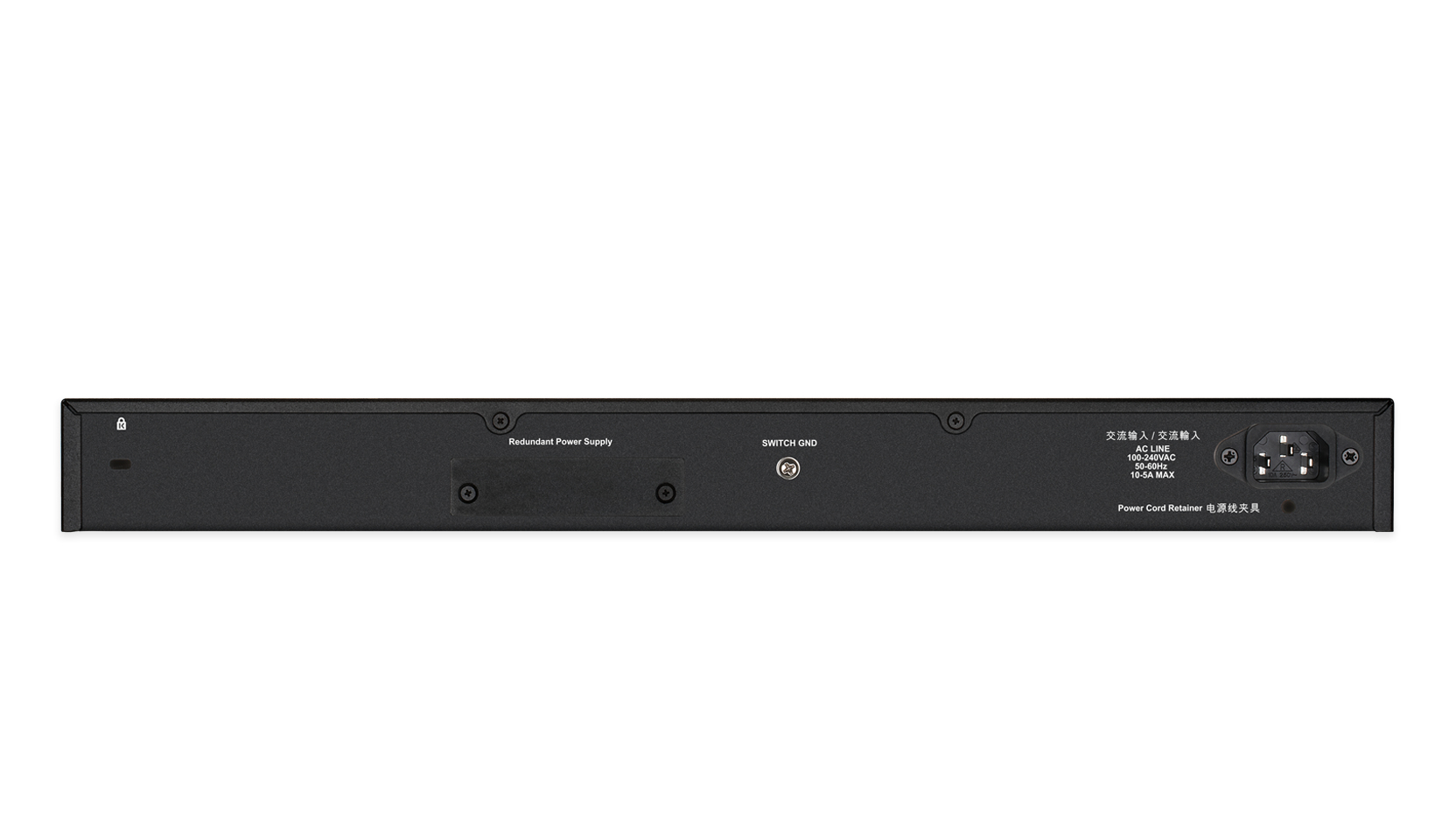

D-Link DGS-3130 Series Gigabit Layer 3 Stackable Managed Switches

DGS-3130 Series Gigabit Layer 3 Stackable Managed Switches

Model DGS-3130-30PSPart no. DGS-3130-30PS/SIEAN 790069435294

112 specifications

Noise53.4 dB
Weight4.66 kg
ColourBlack, Grey
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity24
10G supportYes

See all specifications

Overview

Noise: 53.4 dB
Weight: 4.66 kg
Colour: Black, Grey
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24
10G support: Yes

Brand: D-Link
Category: Network Switch
Model: DGS-3130-30PS
Part numbers: DGS-3130-30PS/SI, DGS-3130-30PS/B
EAN / UPC: 790069435294, 790069469251
Also known as: D-Link DGS-3130 Series Gigabit Layer 3 Stackable Managed Switches

Specifications

112 specifications in 17 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
System event log	Yes
MIB support	RFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157, 2571-2576; RFC 4022; RFC 4113; RFC

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
10G Ethernet (copper) ports quantity	2
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	4
Fiber optic connector	SFP+
Console port	RJ-45
USB 2.0 ports quantity	1
Power connector	AC-in jack

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
10G support	Yes
Copper ethernet cabling technology	10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Broadcast storm control	Yes
Fast leave	Yes
Flow control support	Yes
Head-of-line (HOL) blocking	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4094

Data transmission

Specification	Value
MAC address table	16384 entries
Switching capacity	168 Gbit/s
Forwarding rate	125 Mpps
Number of queues	8
Jumbo frames support	Yes
Packet buffer memory	2 MB

Security

Specification	Value
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)	Yes
Access Control List (ACL) egress	512
Access Control List (ACL) ingress	2048
IGMP entries	128
IGMP snooping	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
BPDU filtering/protection	Yes
DoS attack prevention	Yes
Loop protection	Yes
Password protection	Yes
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR), Weighted random early detection (WRED)
Root protection	Yes
SSH/SSL support	Yes
Security algorithms	SNMP, SNMPv3, SSH-2, SSL/TLS
Static port security	Yes

Multicast features

Specification	Value
Multicast support	Yes
Multicast features	Controllable multicast
MLD entries	1024
Multicast Listener Discovery (MLD) snooping	Yes

Protocols

Specification	Value
GARP VLAN Registration Protocol (GVRP)	Yes
Routing protocols	RIP
IP Source Guard (IPSG)	Yes

Design

Specification	Value
Rack mounting	Yes
Stackable	Yes
Product colour	Black, Grey
LED indicators	Yes
Number of fans	3 fan(s)
Safety	CB, cUL, BSMI, CCC

Performance

Specification	Value
Physical stacking (units)	9
Virtual stacking (units)	32
Dying Gasp	Yes
Noise level	53.4 dB
Telnet	Yes
sFlow	Yes
Mean time between failures (MTBF)	409054 h

Power

Specification	Value
Power source	AC/PoE
Redundant power supply (RPS) support	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	471.67 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	370 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1609.41 BTU/h

Weight & dimensions

Specification	Value
Width	440 mm
Depth	350 mm
Height	44 mm
Weight	4.66 kg

Packaging data

Specification	Value
Package width	450 mm
Package depth	595 mm
Package height	118 mm
Package weight	6.32 kg

Certificates

Specification	Value
Compliance certificates	BSMI, CB, CCC, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cUL

Technical details

Specification	Value
Master (outer) cases per pallet (air)	18 pc(s)
Master (outer) cases per pallet (sea)	18 pc(s)
Pallet gross length	110 cm
Pallet gross weight (air)	399.8 kg
Pallet gross weight (sea)	399.8 kg
Pallet gross width	120 cm
Pallet height (air)	2.01 m
Pallet height (sea)	2.01 m
Products per pallet (air)	54 pc(s)
Products per pallet (sea)	54 pc(s)
Products per shipping (inner) case	3 pc(s)
Shipping (inner) case gross weight	21.2 kg
Shipping (inner) case height	62.6 cm
Shipping (inner) case length	46.8 cm
Shipping (inner) case net weight	19.5 kg
Shipping (inner) case width	37.4 cm

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
