Product comparison · 2 network switches

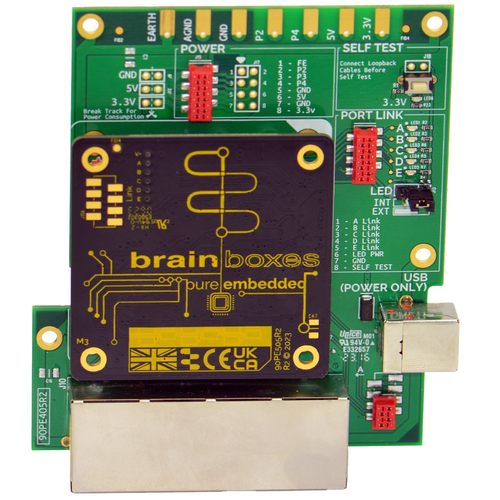

Brainboxes Pure Embedded 5 & 8 Port Ethernet Switch Eval Kit vs Brainboxes Pure Embedded 5 Port 10/100 Ethernet Switch Module

29specifications compared
9differ
20identical
4known for one product only

Key differences

Basic switching RJ-45 Ethernet ports quantity
- Pure Embedded 5 & 8 Port Ethernet Switch Eval Kit:4
- Pure Embedded 5 Port 10/100 Ethernet Switch Module:5
Width
- Pure Embedded 5 & 8 Port Ethernet Switch Eval Kit:117 mm
- Pure Embedded 5 Port 10/100 Ethernet Switch Module:55 mm
Depth
- Pure Embedded 5 & 8 Port Ethernet Switch Eval Kit:98 mm
- Pure Embedded 5 Port 10/100 Ethernet Switch Module:55 mm
Height
- Pure Embedded 5 & 8 Port Ethernet Switch Eval Kit:22 mm
- Pure Embedded 5 Port 10/100 Ethernet Switch Module:7.1 mm
Weight
- Pure Embedded 5 & 8 Port Ethernet Switch Eval Kit:118 g
- Pure Embedded 5 Port 10/100 Ethernet Switch Module:18 g
Package width
- Pure Embedded 5 & 8 Port Ethernet Switch Eval Kit:160 mm
- Pure Embedded 5 Port 10/100 Ethernet Switch Module:90 mm
Package depth
- Pure Embedded 5 & 8 Port Ethernet Switch Eval Kit:135 mm
- Pure Embedded 5 Port 10/100 Ethernet Switch Module:100 mm
Package height
- Pure Embedded 5 & 8 Port Ethernet Switch Eval Kit:49 mm
- Pure Embedded 5 Port 10/100 Ethernet Switch Module:30 mm

Side by side

Differences highlightedShow differences only

Comparison of PE-405, PE-505
33 specifications	A Brainboxes Pure Embedded 5 & 8 Port Ethernet Switch Eval Kit Model PE-405 View product	B Brainboxes Pure Embedded 5 Port 10/100 Ethernet Switch Module Model PE-505 View product
Management featuresidentical
Switch type	Unmanaged	Unmanaged
Switch layer	L2	L2
Ports & interfaces1 differ
Basic switching RJ-45 Ethernet ports quantityDiffers	4	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)	Fast Ethernet (10/100)
Installed SFP modules quantity	0	0
Installed SFP+ modules quantity	0	0
Networkidentical
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G support	No	No
Ethernet LAN data rates	10,100 Mbit/s	10,100 Mbit/s
Designidentical
Rack mountingKnown for one	Unknown — not stated by the source	No
StackableKnown for one	Unknown — not stated by the source	No
Form factor	Embedded	Embedded
Product colour	Multicolour	Multicolour
Performanceidentical
Export Control Classification Number (ECCN)	5A991.b	5A991.b
Poweridentical
Power source	DC	DC
DC input voltage	3.3 V	3.3 V
Power consumption (max)	2.5 W	2.5 W
Power over Ethernet (PoE)identical
Power over Ethernet (PoE)	No	No
Operational conditionsidentical
Operating temperature (T-T)	-40 - 85 °C	-40 - 85 °C
Storage temperature (T-T)	-40 - 85 °C	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%	5 - 95%
Weight & dimensions4 differ
WidthDiffers	117 mm	55 mm
DepthDiffers	98 mm	55 mm
HeightDiffers	22 mm	7.1 mm
WeightDiffers	118 g	18 g
Packaging data4 differ
Package widthDiffers	160 mm	90 mm
Package depthDiffers	135 mm	100 mm
Package heightDiffers	49 mm	30 mm
Package weightDiffers	251 g	27 g
Certificatesidentical
Certification	CE, UKCA, RoHS, REACH, WEEE	CE, UKCA, RoHS, REACH, WEEE
Compliance certificatesKnown for one	RoHS, CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA), UKCA	Unknown — not stated by the source
Logistics dataidentical
Country of originKnown for one	Unknown — not stated by the source	United Kingdom
Harmonized System (HS) code	851762	851762

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
