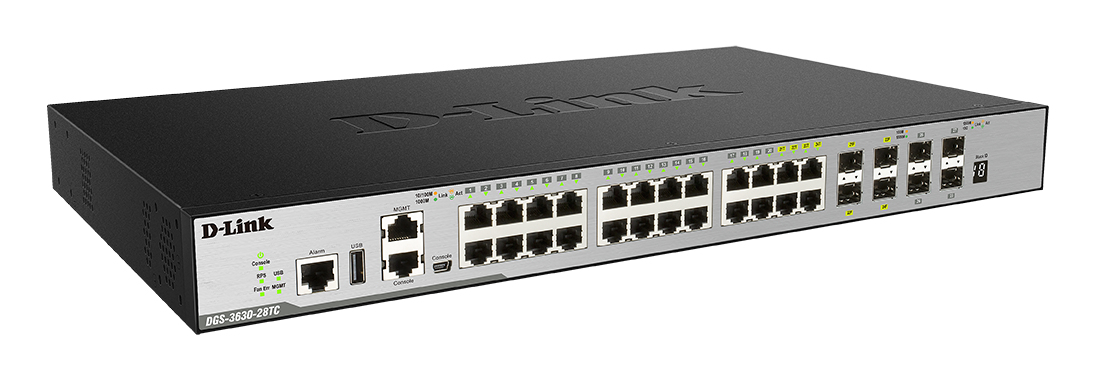

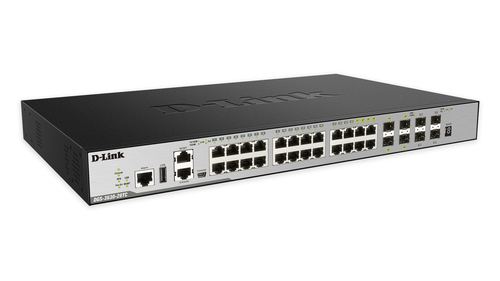

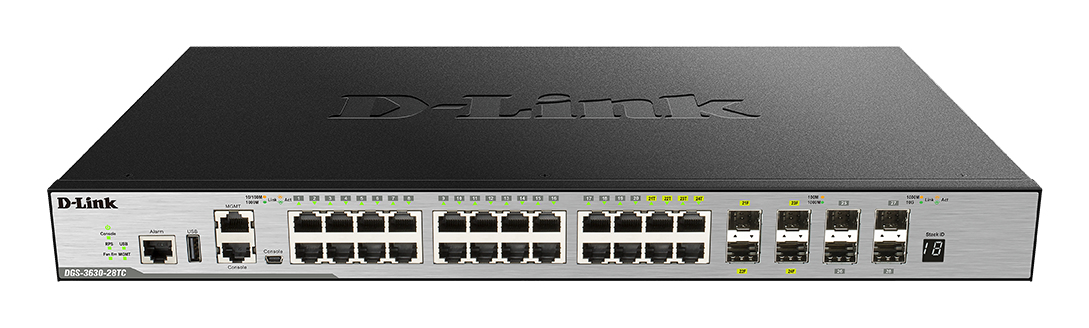

D-Link 24-Port L3 Stackable Managed Gigabit Switch including

24-Port L3 Stackable Managed Gigabit Switch including

4 x 1000BaseT/SFP & 4 x 10GE SFP+

Model DGS-3630-28TCPart no. DGS-3630-28TC/SIEAN 790069425622

109 specifications

Noise52.7 dB
Type1U
Weight3.74 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity20

See all specifications

Overview

Noise: 52.7 dB
Type: 1U
Weight: 3.74 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 20

Brand: D-Link
Category: Network Switch
Model: DGS-3630-28TC
Part numbers: DGS-3630-28TC/SI, DGS-3630-28TC
EAN / UPC: 790069425622, 790069472145
Also known as: D-Link 24-Port L3 Stackable Managed Gigabit Switch including 4 x 1000BaseT/SFP & 4 x 10GE SFP+

Specifications

109 specifications in 17 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
Traffic classification	Yes
System event log	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	20
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	20
Combo SFP ports quantity	4
SFP+ module slots quantity	4
Console port	RJ-45/Mini-USB
USB 2.0 ports quantity	1
Power connector	AC-in jack

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Full duplex	Yes
Routing entries	16000
Broadcast storm control	Yes
Ethernet Ring Protection Switching (ERPS)	Yes
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	IP subnet–based VLAN, MAC address-based VLAN, MVRP, Multicast VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4094

Data transmission

Specification	Value
MAC address table	68000 entries
Switching capacity	128 Gbit/s
Forwarding rate	95.24 Mpps
Number of queues	8
Static route	Yes
Number of static routes	512
Number of IP interfaces	256
Jumbo frames support	Yes
Jumbo frames	12000
Packet buffer memory	4 MB

Security

Specification	Value
DHCP features	DHCP auto-config, DHCP client, DHCP guarding, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	Guest VLAN, Port-based authentication
Authentication type	IEEE 802.1x
BPDU filtering/protection	Yes
Loop protection	Yes
MAC address filtering	Yes
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR), Weighted random early detection (WRED)
Root protection	Yes
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS, SSH, SSH-2, SSL/TLS

Multicast features

Specification	Value
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Yes

Protocols

Specification	Value
Management protocols	SNMP, NTPv3/v4, Telnet
Routing protocols	BGP4, OSPFv3, RIP, RIP-1, RIP-2, RIPng, VRRP
IP Source Guard (IPSG)	Yes

Design

Specification	Value
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Number of fans	2 fan(s)
Safety	cUL, CB, CE, CCC, BSM
Electromagnetic compatibility	CE, FCC Class A, C-Tick, VCCI, BSMI, CCC

Performance

Specification	Value
Virtual stacking (units)	32
Dying Gasp	Yes
Noise level	52.7 dB
Mean time between failures (MTBF)	300190.46 h

Power

Specification	Value
Power source	AC
Power supply included	Yes
Redundant power supply (RPS) support	Yes
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	42.4 W
Surge protection	Yes
Surge protection voltage	6 kV

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	144.58 BTU/h

Weight & dimensions

Specification	Value
Width	441 mm
Depth	259.8 mm
Height	44 mm
Weight	3.74 kg

Packaging data

Specification	Value
Package width	415 mm
Package depth	528 mm
Package height	91 mm
Package weight	5.33 kg

Certificates

Specification	Value
Compliance certificates	BSMI, CCC, CE, Federal Communications Commission (FCC), RoHS, VCCI

Technical details

Specification	Value
Master (outer) cases per pallet (air)	32 pc(s)
Master (outer) cases per pallet (sea)	32 pc(s)
Pallet gross length	110 cm
Pallet gross weight (air)	562.8 kg
Pallet gross weight (sea)	562.8 kg
Pallet gross width	120 cm
Pallet height (air)	193.5 cm
Pallet height (sea)	193.5 cm
Products per pallet (air)	96 pc(s)
Products per pallet (sea)	96 pc(s)
Products per shipping (inner) case	3 pc(s)
Shipping (inner) case gross weight	17 kg
Shipping (inner) case height	45 cm
Shipping (inner) case length	54.9 cm
Shipping (inner) case net weight	14.1 kg
Shipping (inner) case width	29.6 cm

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
