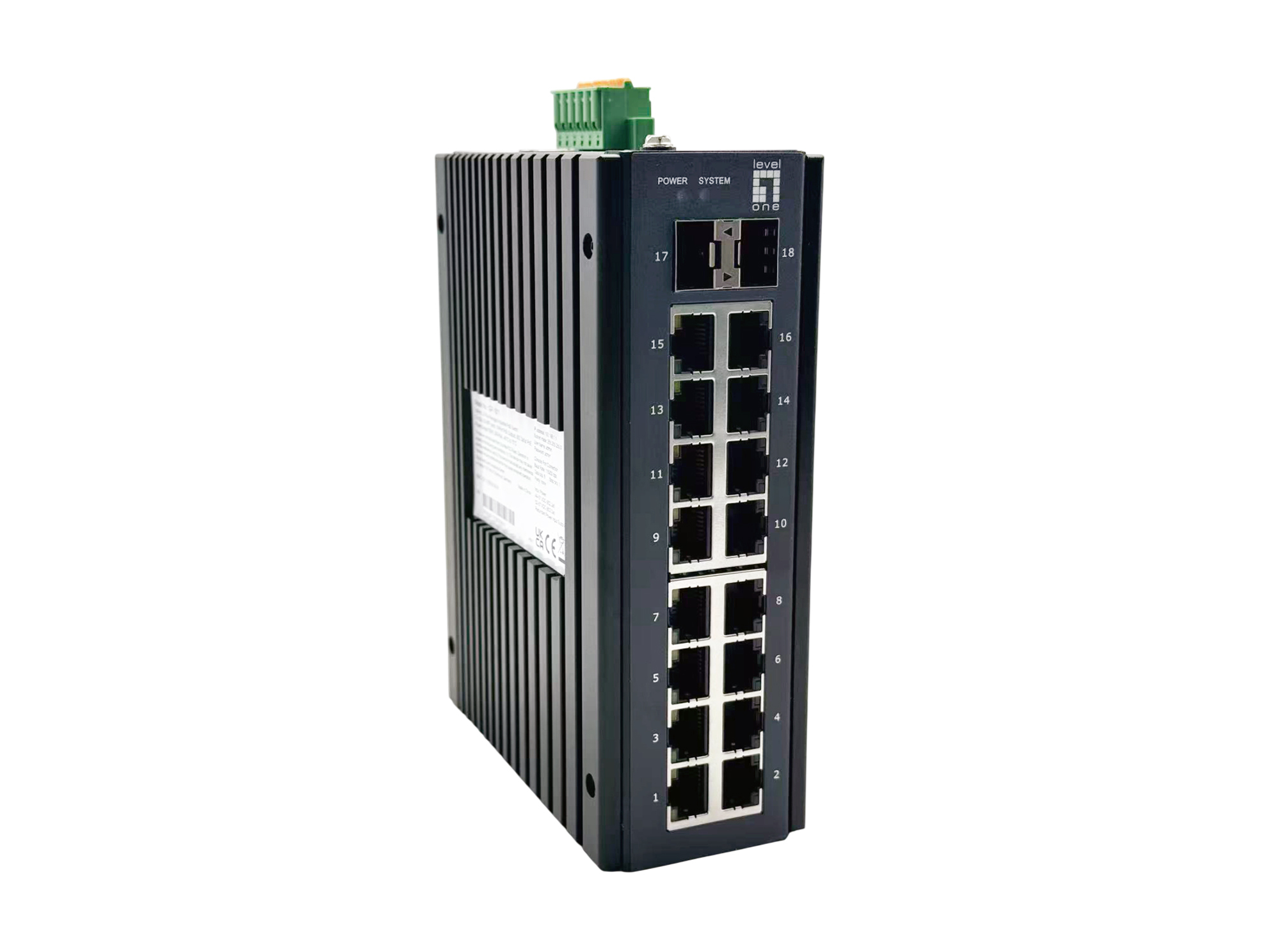

18-Port L2 Plus Managed Industrial PoE Switch
2 x 1G/2.5G SFP Ports, 16-Port PoE Outputs, 802.3af/at PoE, Power Budget 255W , DIN-Rail, -40°C to 75°C
Model IGP-1871EAN 4015867244043
101 specifications
- Memory512 MB
- Weight1.55 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
Overview
- Memory
- 512 MB
- Weight
- 1.55 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- Brand
- LevelOne
- Category
- Network Switch
- Model
- IGP-1871
- Part number
- IGP-1871
- EAN / UPC
- 4015867244043, 4015867245804
- Also known as
- LevelOne 18-Port L2 Plus Managed Industrial PoE Switch, 2 x 1G/2.5G SFP Ports, 16-Port PoE Outputs, 802.3af/at PoE, Power Budget 255W , DIN-Rail, -40°C to 75°C
Specifications
101 specifications in 18 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Cable length detection | Yes |
| Ethernet Ring Protection Switching (ERPS) | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| QinQ implementation | QinQ |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Protocol-based VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 42 Gbit/s |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 12 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP Option 82, DHCP client, DHCP server, DHCP snooping, DHCPv6 server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| ARP attack prevention | Yes |
| Authentication type | IEEE 802.1x, RADIUS |
| IP-MAC-Port binding | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| Queue scheduling algorithms | WRR+SP |
| Security algorithms | HTTPS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Activity, Link, Power, System |

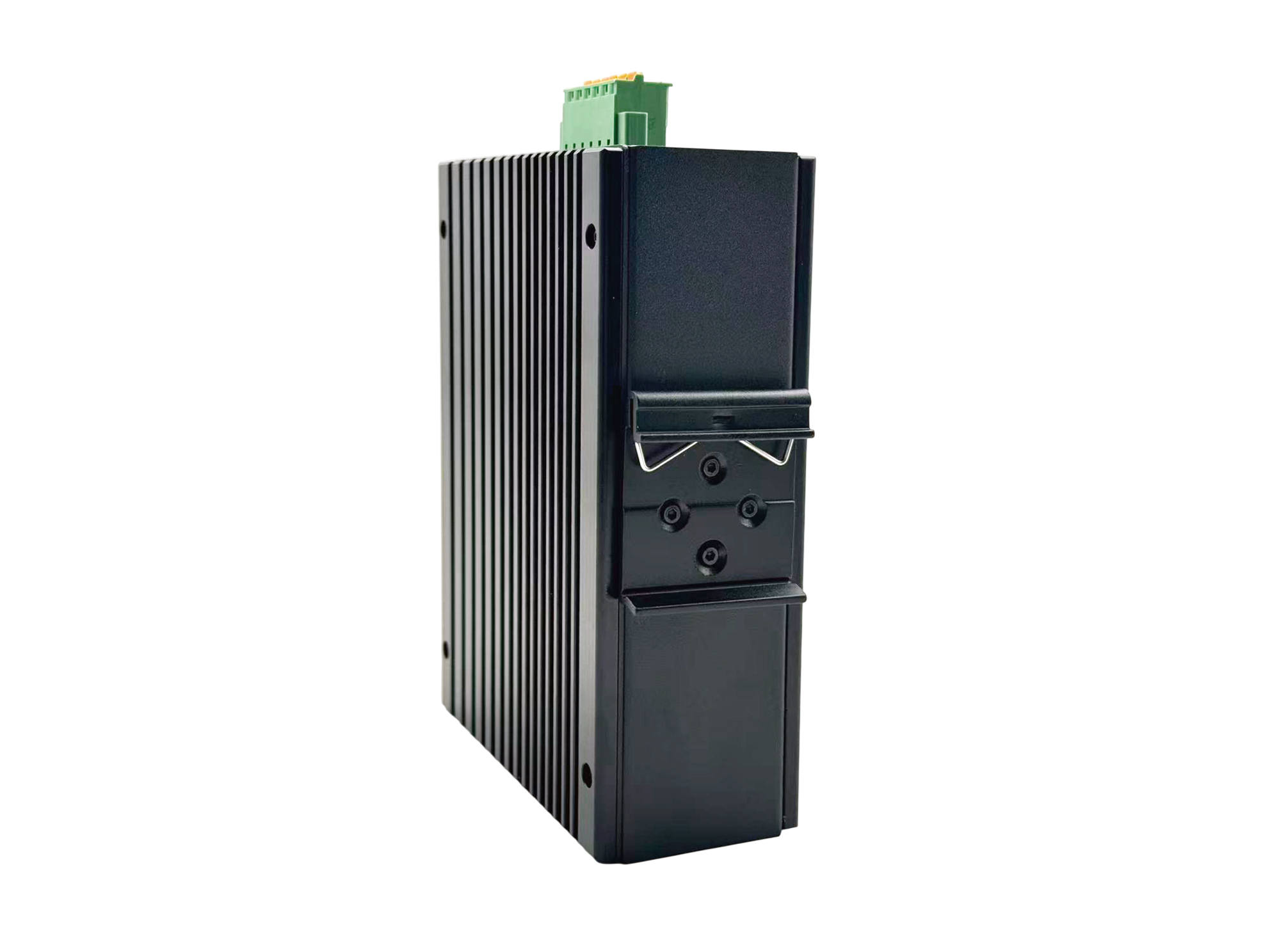

| DIN rail mounting | Yes |
| International Protection (IP) code | IP40 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 512 MB |
| Flash memory | 512 MB |
| Dying Gasp | Yes |
| Firmware upgradeable | Yes |
| sFlow | Yes |
| Fanless | Yes |
| Mean time between failures (MTBF) | 200000 h |
Power
| Specification | Value |
|---|---|
| Power source | PoE |
| Power supply included | No |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 44 - 57 V |
| Power consumption (typical) | 15 W |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 240 W |
Other features
| Specification | Value |
|---|---|

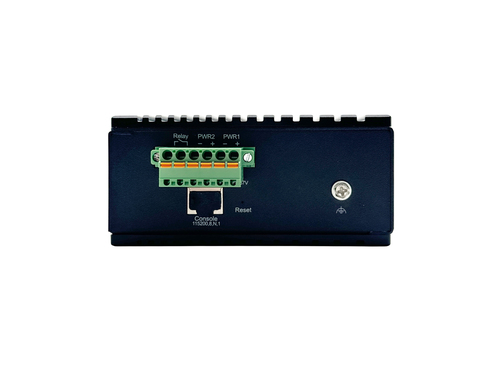

| Terminal block port | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 54 mm |
| Depth | 115 mm |
| Height | 158 mm |
| Weight | 1.55 kg |

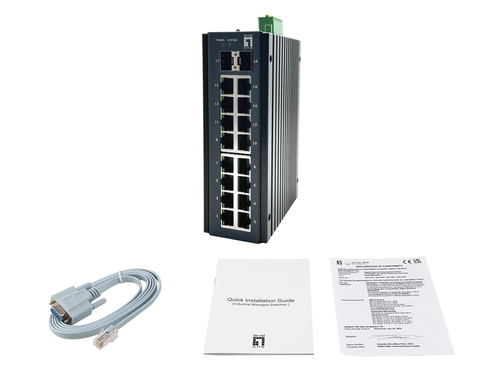

Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| DIN rail included | Yes |
| Package type | Box |
| Terminal block included | Yes |
| Package width | 230 mm |
| Package depth | 180 mm |
| Package height | 70 mm |
| Package weight | 1.81 kg |
Technical details
| Specification | Value |
|---|---|
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
Logistics data
| Specification | Value |
|---|---|
| Customs product code (TARIC) | 8517620000 |
| Pallet gross height | 164.4 cm |
| Country of origin | China |
| Master (outer) case width | 440 mm |
| Master (outer) case length | 375 mm |
| Master (outer) case height | 250 mm |
| Master (outer) case gross weight | 22.7 kg |
| Products per master (outer) case | 12 pc(s) |
Similar products
All network switches
NETGEAR
M4350-36X4V network switch Managed L3
Model M4350-36X4V
- Processor
- ARM Cortex-A57
- Memory
- 4096 MB
- Noise
- 54 dB
D-Link
24-port Gigabit PoE Smart Managed Switch with
Model DGS-1250-28XMP
- Memory
- 2048 MB
- Noise
- 50.8 dB
- Weight
- 3.46 kg

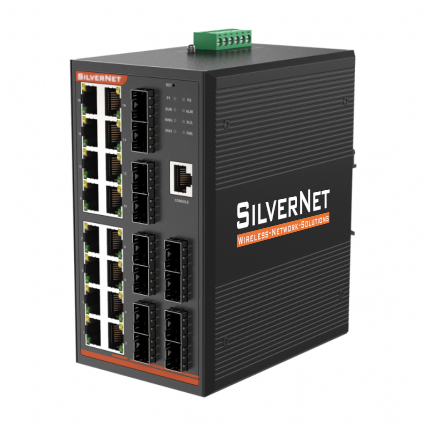

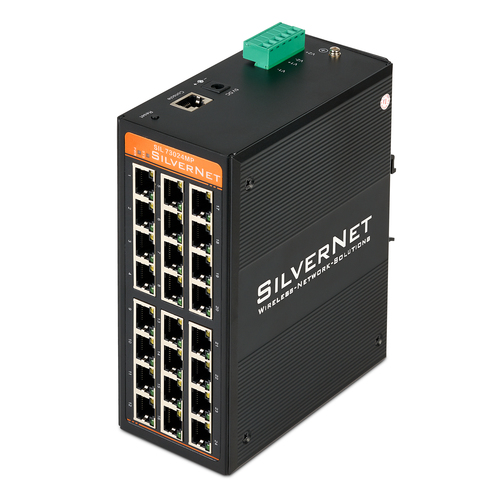

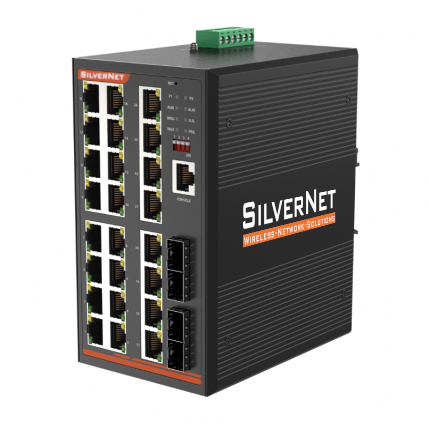

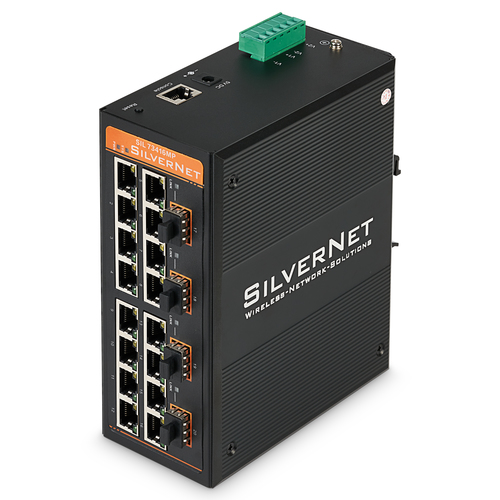

SilverNet
