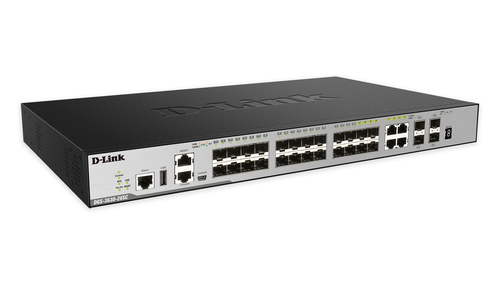

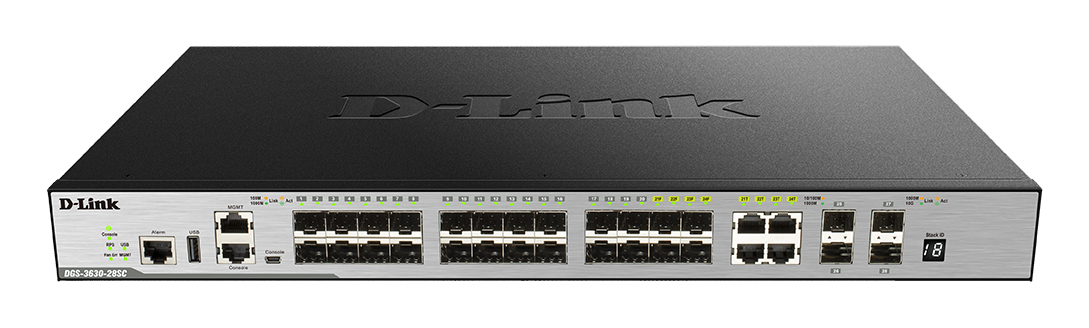

D-Link 24-Port SFP L3 Stackable Managed Gigabit Switch including

24-Port SFP L3 Stackable Managed Gigabit Switch including

4 x 1000BaseT/SFP & 4 x 10GE SFP+

Model DGS-3630-28SCPart no. DGS-3630-28SC/SIEAN 790069425608

99 specifications

Noise56 dB
Type1U
Weight3.79 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports typeNo

See all specifications

Overview

Noise: 56 dB
Type: 1U
Weight: 3.79 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports type: No

Brand: D-Link
Category: Network Switch
Model: DGS-3630-28SC
Part numbers: DGS-3630-28SC/SI, DGS-3630-28SC
EAN / UPC: 790069425608, 790069472237
Also known as: D-Link 24-Port SFP L3 Stackable Managed Gigabit Switch including 4 x 1000BaseT/SFP & 4 x 10GE SFP+

Specifications

99 specifications in 16 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
Traffic classification	Yes
System event log	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports type	No
Combo SFP ports quantity	4
SFP module slots quantity	20
SFP+ module slots quantity	4
Number of management ports	1 pc(s)
Console port	RJ-45/Mini-USB
USB 2.0 ports quantity	1
Power connector	DC-in jack

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Full duplex	Yes
Routing entries	16000
Broadcast storm control	Yes
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Stacked VLAN, Private VLAN, Tagged VLAN, Port-based VLAN
Number of VLANs	4094

Data transmission

Specification	Value
MAC address table	68000 entries
Switching capacity	128 Gbit/s
Forwarding rate	95.24 Mpps
Number of queues	8
Number of IP interfaces	256
Jumbo frames support	Yes
Jumbo frames	12000
Packet buffer memory	4 MB

Security

Specification	Value
DHCP features	DHCP server, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	Guest VLAN, Port-based authentication
BPDU filtering/protection	Yes
Loop protection	Yes
MAC address filtering	Yes
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS, SSH, SSH-2, SSL/TLS

Multicast features

Specification	Value
Multicast support	Yes
Multicast MAC address table	68000 entries

Protocols

Specification	Value
Management protocols	SNMP, NTPv3/v4, Telnet

Design

Specification	Value
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Number of fans	2 fan(s)
Safety	cUL, CB, CE, CCC, BSM
Electromagnetic compatibility	CE, FCC Class A, C-Tick, VCCI, BSMI, CCC

Performance

Specification	Value
Virtual stacking (units)	32
Noise level	56 dB
Mean time between failures (MTBF)	280612 h

Power

Specification	Value
Power source	AC
Power supply included	Yes
Redundant power supply (RPS) support	Yes
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	63.58 W
Surge protection	Yes
Surge protection voltage	6 kV

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	216.81 BTU/h

Weight & dimensions

Specification	Value
Width	441 mm
Depth	260 mm
Height	44 mm
Weight	3.79 kg

Packaging data

Specification	Value
Package width	415 mm
Package depth	528 mm
Package height	91 mm
Package weight	5.29 kg

Technical details

Specification	Value
Master (outer) cases per pallet (air)	32 pc(s)
Master (outer) cases per pallet (sea)	32 pc(s)
Pallet gross length	110 cm
Pallet gross weight (air)	553.5 kg
Pallet gross weight (sea)	553.5 kg
Pallet gross width	120 cm
Pallet height (air)	193.5 cm
Pallet height (sea)	193.5 cm
Products per pallet (air)	96 pc(s)
Products per pallet (sea)	96 pc(s)
Products per shipping (inner) case	3 pc(s)
Shipping (inner) case gross weight	16.7 kg
Shipping (inner) case height	45 cm
Shipping (inner) case length	54.9 cm
Shipping (inner) case net weight	13.5 kg
Shipping (inner) case width	29.6 cm

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
