SIL 73424MP

SIL 73424MP

Model SIL 73424MPEAN 5060693982729

99 specifications

Noise0 dB
Weight1.35 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity24
Port mirroringYes

See all specifications

Overview

Noise: 0 dB
Weight: 1.35 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24
Port mirroring: Yes

Brand: SilverNet
Category: Network Switch
Model: SIL 73424MP
Part number: SIL 73424MP
EAN / UPC: 5060693982729
Also known as: SilverNet SIL 73424MP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Specifications

99 specifications in 17 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
Traffic classification	Yes
Traffic shaping	Yes
System event log	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Fast Ethernet (copper) ports quantity	24
Gigabit Ethernet (copper) ports quantity	24
SFP module slots quantity	4
Console port	RJ-45

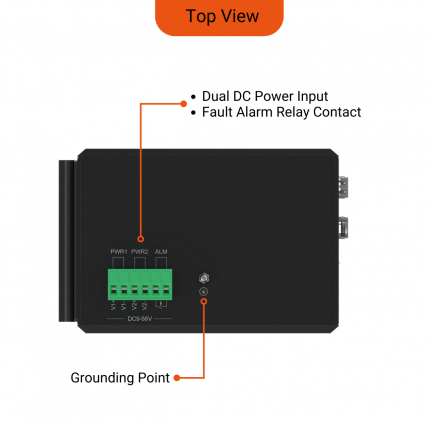

Power connector	Terminal block (6-pin)

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-TX, 100BASE-TX, 1000BASE-TX
Port mirroring	Yes
Full duplex	Yes
Half duplex	Yes
Active link detection	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Auto-sensing	Yes
Broadcast storm control	Yes
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Interface-based VLAN, Multiple VXLAN (MUX VLAN), Port-based VLAN, Stacked VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID)
Number of VLANs	256

Data transmission

Specification	Value
MAC address table	8000 entries
Switching capacity	56 Gbit/s
Store-and-forward	Yes
Latency (1 Gbps)	7 µs
Latency (10 Gbps)	7 µs
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	4 MB

Security

Specification	Value
DHCP features	DHCP Option 82, DHCP client, DHCP server, DHCPv6 client, DHCPv6 server, DHCPv6 snooping
Access Control List (ACL)	Yes
IGMP entries	4096
IGMP snooping	Yes
Authentication type	IEEE 802.1x, RADIUS
Loop protection	Yes
MAC address filtering	Yes
Password protection	Yes
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS, HTTPS, SNMPv3, SSH-2, SSL/TLS
Static port security	Yes

Multicast features

Specification	Value
Multicast support	Yes

Design

Specification	Value
Stackable	Yes
Product colour	Black
Housing material	Aluminium
Reset button	Yes
LED indicators	Alarm, LAN, Link, PoE, Power

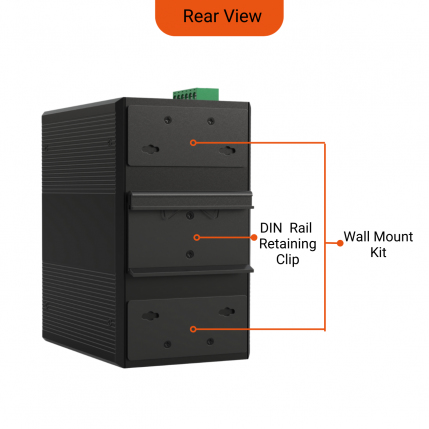

DIN rail mounting	Yes
International Protection (IP) code	IP40
Electromagnetic compatibility	EN55032 Class A, CISPR 32 FCC Part 15B Class A, EN61000 4 2 (ESD) EN61000 4 3 (RS) EN61000 4 4 (EFT) EN61000 4 5 (Surge) EN61000 4 6 (CS) EN61000 4 8 (PFMF)

Performance

Specification	Value
Firmware upgradeable	Yes
Noise level	0 dB
Mean time between failures (MTBF)	907476 h

Power

Specification	Value
Power source	DC
Power supply included	No
Redundant power supply (RPS) support	Yes
Number of power supply units	2
DC input voltage	9 - 56 V
Power consumption (max)	24 W
Power protection features	Overload, Reverse polarity

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Active PoE
Power over Ethernet (PoE) ports quantity	24
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) voltage	48 V
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	480 W

Other features

Specification	Value
Warranty period	5 year(s)

Operational conditions

Specification	Value
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 90%
Heat dissipation	65 BTU/h

Weight & dimensions

Specification	Value
Width	155 mm
Depth	128 mm
Height	88 mm
Weight	1.35 kg

Packaging content

Specification	Value
Quick start guide	Yes
Manual	Yes
User guide	Yes

Packaging data

Specification	Value
Package type	Box
Package width	205 mm
Package depth	230 mm
Package height	110 mm
Package weight	1.78 kg

Certificates

Specification	Value
Certification	IEC/EN 62368-1 IEC 60068-2-32 IEC 60068-2-27 IEC 60068-2-6 RoHS

Logistics data

Specification	Value
UK Trade Tariff code	85176200
