Product comparison · 2 network switches

Brainboxes Pure Embedded 5 Port 10/100 Ethernet Switch Module vs Brainboxes Light Industrial 1 SFP & 4 Port Gigabit Ethernet Switch

26specifications compared
16differ
10identical
16known for one product only

Key differences

Basic switching RJ-45 Ethernet ports quantity
- Pure Embedded 5 Port 10/100 Ethernet Switch Module:5
- Light Industrial 1 SFP & 4 Port Gigabit Ethernet Switch:4
Installed SFP modules quantity
- Pure Embedded 5 Port 10/100 Ethernet Switch Module:0
- Light Industrial 1 SFP & 4 Port Gigabit Ethernet Switch:1
Form factor
- Pure Embedded 5 Port 10/100 Ethernet Switch Module:Embedded
- Light Industrial 1 SFP & 4 Port Gigabit Ethernet Switch:DIN rail
Product colour
- Pure Embedded 5 Port 10/100 Ethernet Switch Module:Multicolour
- Light Industrial 1 SFP & 4 Port Gigabit Ethernet Switch:Black, Green
DC input voltage
- Pure Embedded 5 Port 10/100 Ethernet Switch Module:3.3 V
- Light Industrial 1 SFP & 4 Port Gigabit Ethernet Switch:5 - 30 V
Power consumption (max)
- Pure Embedded 5 Port 10/100 Ethernet Switch Module:2.5 W
- Light Industrial 1 SFP & 4 Port Gigabit Ethernet Switch:3.6 W
Operating temperature (T-T)
- Pure Embedded 5 Port 10/100 Ethernet Switch Module:-40 - 85 °C
- Light Industrial 1 SFP & 4 Port Gigabit Ethernet Switch:-10 - 60 °C
Width
- Pure Embedded 5 Port 10/100 Ethernet Switch Module:55 mm
- Light Industrial 1 SFP & 4 Port Gigabit Ethernet Switch:106 mm

Side by side

Differences highlightedShow differences only

Comparison of PE-505, SW-084

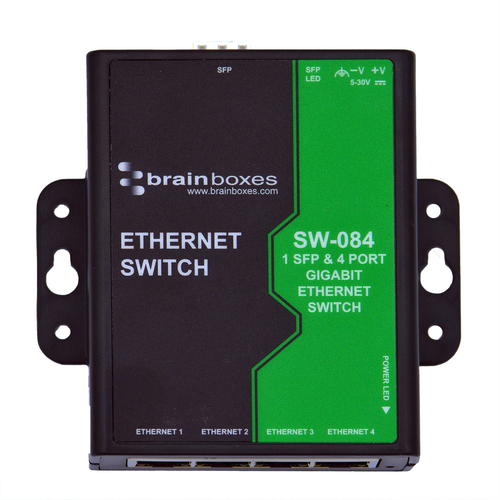

42 specifications	A Brainboxes Pure Embedded 5 Port 10/100 Ethernet Switch Module Model PE-505 View product	B Brainboxes Light Industrial 1 SFP & 4 Port Gigabit Ethernet Switch Model SW-084 View product
Management featuresidentical
Switch type	Unmanaged	Unmanaged
Switch layer	L2	L2
Ports & interfaces3 differ
Basic switching RJ-45 Ethernet ports quantityDiffers	5	4
Basic switching RJ-45 Ethernet ports typeDiffers	Fast Ethernet (10/100)	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantityDiffers	0	1
Installed SFP+ modules quantity	0	0
Power connectorKnown for one	Unknown — not stated by the source	DC-in jack
Networkidentical
10G support	No	No
Auto MDI/MDI-XKnown for one	Unknown — not stated by the source	Yes
Networking standardsKnown for one	IEEE 802.3, IEEE 802.3u, IEEE 802.3x	Unknown — not stated by the source
Ethernet LAN data ratesKnown for one	10,100 Mbit/s	Unknown — not stated by the source
Data transmissionidentical
MAC address tableKnown for one	Unknown — not stated by the source	1000 entries
Jumbo frames supportKnown for one	Unknown — not stated by the source	Yes
Jumbo framesKnown for one	Unknown — not stated by the source	9000
Design2 differ
Form factorDiffers	Embedded	DIN rail
Product colourDiffers	Multicolour	Black, Green
DIN rail mountingKnown for one	Unknown — not stated by the source	Yes
International Protection (IP) codeKnown for one	Unknown — not stated by the source	IP30
Wall mountableKnown for one	Unknown — not stated by the source	Yes
Rack mountingKnown for one	No	Unknown — not stated by the source
StackableKnown for one	No	Unknown — not stated by the source
Performanceidentical
Export Control Classification Number (ECCN)	5A991.b	5A991.b
Power2 differ
Power source	DC	DC
DC input voltageDiffers	3.3 V	5 - 30 V
Power consumption (max)Differs	2.5 W	3.6 W
Power over Ethernet (PoE)identical
Power over Ethernet (PoE)	No	No
Operational conditions1 differ
Operating temperature (T-T)Differs	-40 - 85 °C	-10 - 60 °C
Storage temperature (T-T)	-40 - 85 °C	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%	5 - 95%
Weight & dimensions4 differ
WidthDiffers	55 mm	106 mm
DepthDiffers	55 mm	102 mm
HeightDiffers	7.1 mm	28 mm
WeightDiffers	18 g	276 g
Packaging contentidentical
Rack mount kitKnown for one	Unknown — not stated by the source	Yes
Packaging data4 differ
Package widthDiffers	90 mm	135 mm
Package depthDiffers	100 mm	160 mm
Package heightDiffers	30 mm	49 mm
Package weightDiffers	27 g	353 g
Certificatesidentical
Compliance certificatesKnown for one	Unknown — not stated by the source	CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA), UKCA, cMETus
CertificationKnown for one	CE, UKCA, RoHS, REACH, WEEE	Unknown — not stated by the source
Logistics dataidentical
Harmonized System (HS) code	851762	851762
Country of originKnown for one	United Kingdom	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
