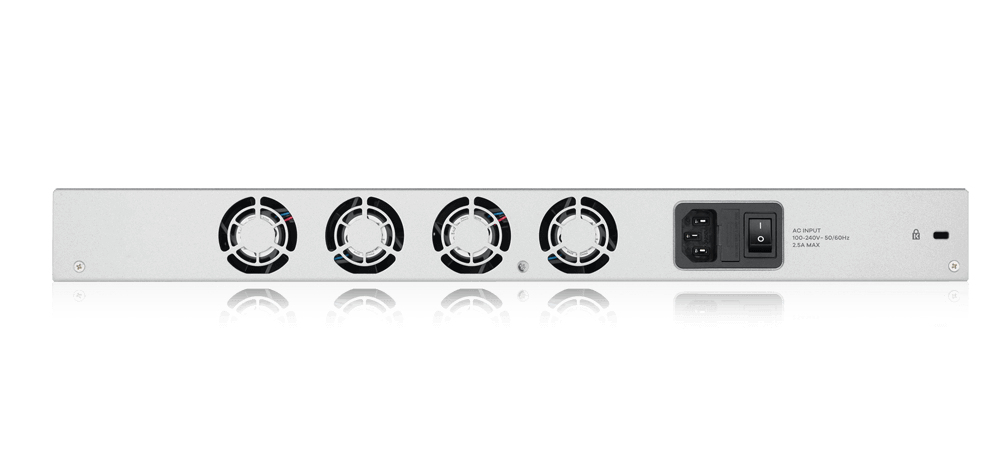

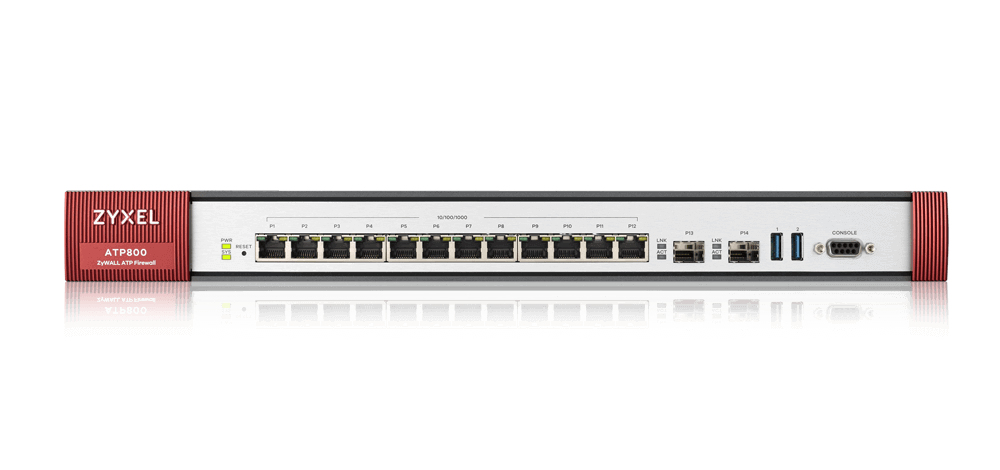

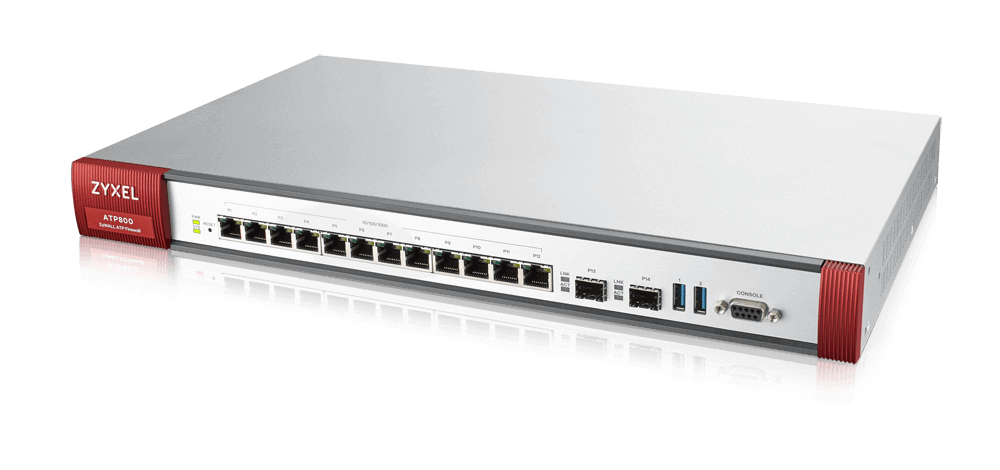

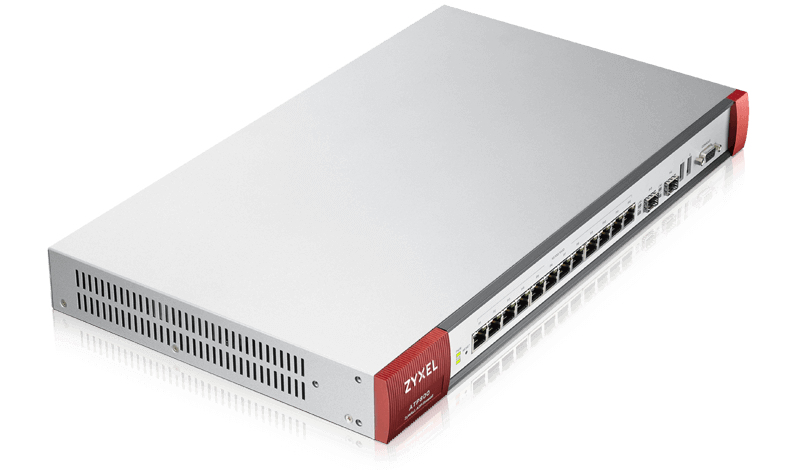

ATP800 hardware firewall 1U 8 Gbit/s
Model ATP800Part no. ATP800-EU0102FEAN 3540260177472
36 specifications
- ConnectivityWired
- Type1U
- Weight3.3 kg
- Firewall throughput8 Gbit/s
- Heat dissipation120.1 BTU/h
- Security algorithmsIPSec, SSL/TLS
Overview
- Connectivity
- Wired
- Type
- 1U
- Weight
- 3.3 kg
- Firewall throughput
- 8 Gbit/s
- Heat dissipation
- 120.1 BTU/h
- Security algorithms
- IPSec, SSL/TLS
- Brand
- Zyxel
- Category
- Hardware Firewall
- Model
- ATP800
- Part numbers
- ATP800-EU0102F, 120484
- EAN / UPC
- 3540260177472, 4718937602919
- Also known as
- Zyxel ATP800 hardware firewall 1U 8 Gbit/s
Specifications
36 specifications in 13 groups
Data transmission
| Specification | Value |
|---|---|
| Firewall throughput | 8 Gbit/s |
| VPN throughput | 1.5 Gbit/s |
| Maximum firewall connections | 2000000 |
Performance
| Specification | Value |
|---|---|
| Heat dissipation | 120.1 BTU/h |
| Mean time between failures (MTBF) | 947736 h |
Security
| Specification | Value |
|---|---|
| Security algorithms | IPSec, SSL/TLS |
Management features
| Specification | Value |
|---|---|
| LED indicators | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 12 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Number of console ports | 1 |
| SFP module slots quantity | 2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Built-in display | No |
| Number of fans | 4 fan(s) |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2.5 A |
| Power consumption (max) | 46 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 430 x 250 x 44 mm |
| Weight | 3.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 519 mm |
| Package height | 163 mm |
| Package depth | 392 mm |
| Package weight | 4.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Other features
| Specification | Value |
|---|---|
| Firewall throughput | 8000 Mbit/s |
| VPN throughput | 1500 Mbit/s |
