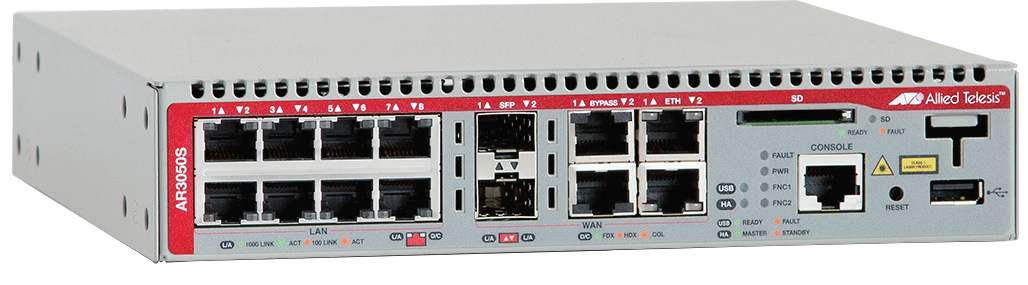

AT-AR3050S hardware firewall 0.75 Gbit/s
Model AT-AR3050S
45 specifications
- Memory1024 MB
- ConnectivityWired
- Noise28.4 dB
- Weight1.7 kg
- Firewall throughput0.75 Gbit/s
- Built-in processorYes
Overview
- Memory
- 1024 MB
- Connectivity
- Wired
- Noise
- 28.4 dB
- Weight
- 1.7 kg
- Firewall throughput
- 0.75 Gbit/s
- Built-in processor
- Yes
- Brand
- Allied Telesis
- Category
- Hardware Firewall
- Model
- AT-AR3050S
- Part number
- AT-AR3050S
- Also known as
- Allied Telesis AT-AR3050S hardware firewall 0.75 Gbit/s
Specifications
45 specifications in 14 groups
Data transmission
| Specification | Value |
|---|---|
| Firewall throughput | 0.75 Gbit/s |
| VPN throughput | 0.4 Gbit/s |
| IPS/IDS throughput | 220 Mbit/s |
| Maximum firewall connections per second | 3600 |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Internal memory | 1024 MB |
| Processor frequency | 800 MHz |
| Processor cores | 2 |
| Concurrent connections | 100000 |
| Noise level | 28.4 dB |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.3ad |
| DHCP client | Yes |
| DHCP server | Yes |
| Multicast support | Yes |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Port forwarding | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, WEP, WPA |
Protocols
| Specification | Value |
|---|---|
| Management protocols | IPv6, SNMPv6, Telnetv6, SSHv6 |
| Routing protocols | BGP4, OSPF, RIP-1, RIP-2 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 8 |
| Compatible memory cards | SD, SDHC |
| WAN connection | Ethernet (RJ-45) |
Storage
| Specification | Value |
|---|---|
| Flash memory | 4096 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 90-260 V |
| AC input frequency | 47/63 Hz |
| Power consumption (max) | 23 W |
| Power consumption (typical) | 23 W |
Certificates
| Specification | Value |
|---|---|
| Certification | EN55022 class A, FCC class A, VCCI class A EN55024, EN61000-3-levels 2 (Harmonics), and 3 (Flicker) UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL, TuV RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 425 mm |
| Depth | 210 mm |
| Height | 220 mm |
| Weight | 1.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 365 mm |
| Package height | 260 mm |
| Package depth | 115 mm |
| Package weight | 2.6 kg |
Other features
| Specification | Value |
|---|---|
| Firewall throughput | 750 Mbit/s |
| VPN throughput | 400 Mbit/s |
