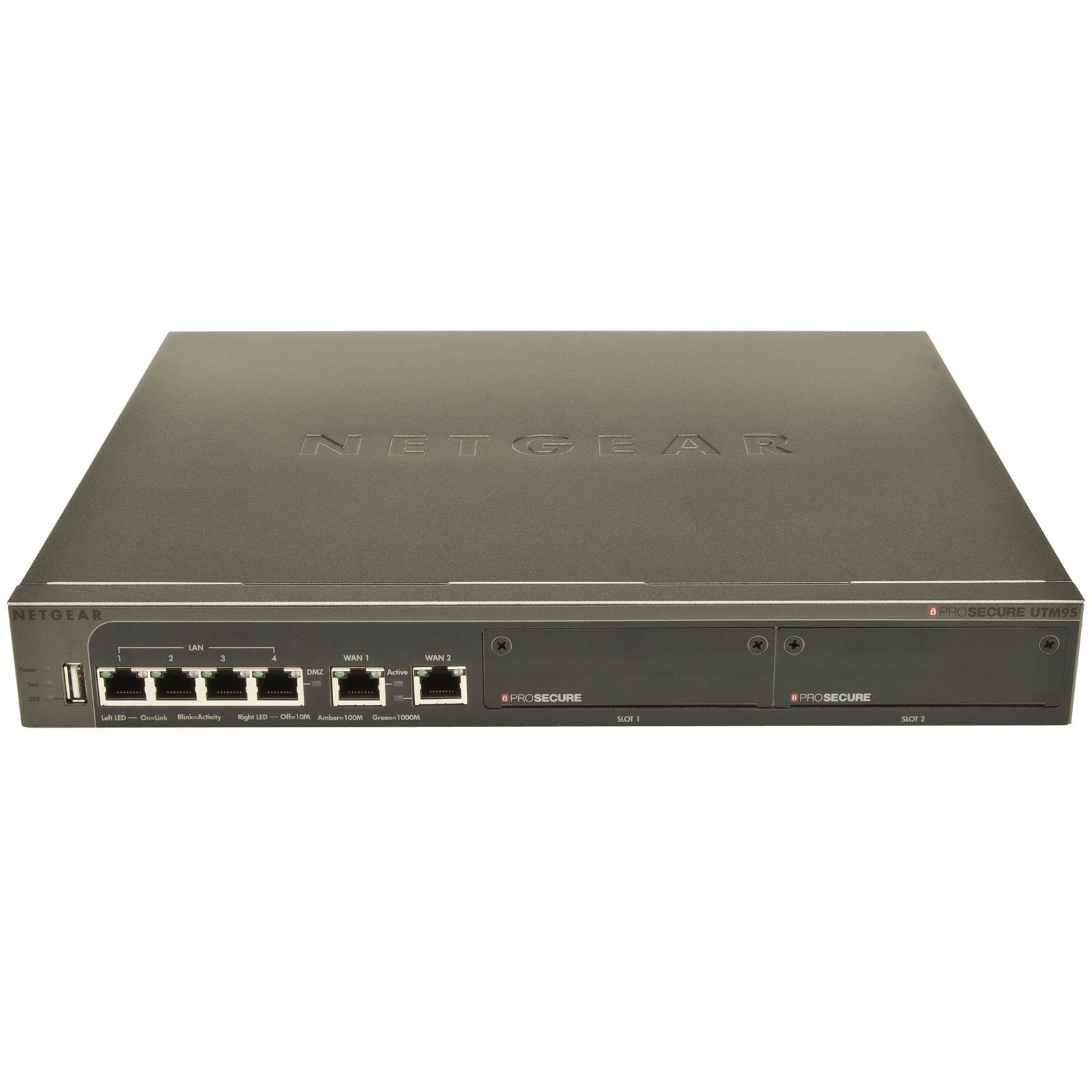

NETGEAR UTM9S hardware firewall 0.13 Gbit/s

UTM9S hardware firewall 0.13 Gbit/s

Model UTM9SPart no. UTM9S-100EUSEAN 606449076653

44 specifications

Memory512 MB
Speed1 Gbit/s
ConnectivityWired
Weight2.56 kg
VPN tunnels quantity10
Firewall securitySPI, NAT, PAT

See all specifications

Overview

Memory: 512 MB
Speed: 1 Gbit/s
Connectivity: Wired
Weight: 2.56 kg
VPN tunnels quantity: 10
Firewall security: SPI, NAT, PAT

Brand: NETGEAR
Category: Hardware Firewall
Model: UTM9S
Part numbers: UTM9S-100EUS, UTM9EW3DA-100E1S
EAN / UPC: 606449076653, 6064490766536
Also known as: NETGEAR UTM9S hardware firewall 0.13 Gbit/s

Specifications

44 specifications in 15 groups

Data transmission

Specification	Value
Maximum data transfer rate	1 Gbit/s
Firewall throughput	0.13 Gbit/s
VPN throughput	0.05 Gbit/s

Performance

Specification	Value
Internal memory	512 MB
Concurrent connections	16000
Syslog	Yes
Compatible operating systems	Windows 2000 (32-bit) Windows XP (32-bit) Windows Vista (32-bit) Windows 7 (32/64-bit) Mac OS X 10.4.x, 10.6.x

Network

Specification	Value
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
VPN tunnels quantity	10
DHCP server	Yes
Number of VLANs	255
Port forwarding	Yes
Quality of Service (QoS) support	Yes

Security

Specification	Value
Security algorithms	128-bit AES, 192-bit AES, 256-bit AES, 3DES, DES, MD5, SHA-1
Firewall security	SPI, NAT, PAT
Content filtering	URL, HTML
VPN support	IPsec, SSL

Protocols

Specification	Value
Management protocols	HTTP/HTTPS, SNMPv2c
Routing protocols	RIP-1, RIP-2
Supported network protocols	Static IP, IMAP, SMTP, POP3, PPPoE, PPTP, NTP, DNS, DDNS, FTP, ToS, LDAP

Management features

Specification	Value
LED indicators	LAN, Power, USB, WAN
Web-based management	Yes

Ports & interfaces

Specification	Value
Connectivity technology	Wired
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Ethernet DMZ ports quantity	1
WAN connection	Ethernet (RJ-45)

Storage

Specification	Value
Flash memory	2048 MB

Design

Specification	Value
Rack mounting	Yes

Power

Specification	Value
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Input current	1.2 A

Certificates

Specification	Value
Certification	ICSA, VPNC, FCC, CE, VCCI, C-Tick, CE/LVD, RoHS

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%

Weight & dimensions

Specification	Value
Dimensions (WxDxH)	330 x 286 x 43 mm
Weight	2.56 kg

Packaging content

Specification	Value
Cables included	AC

Other features

Specification	Value
Firewall throughput	130 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Networking features	Gigabit Ethernet
VPN throughput	50 Mbit/s
