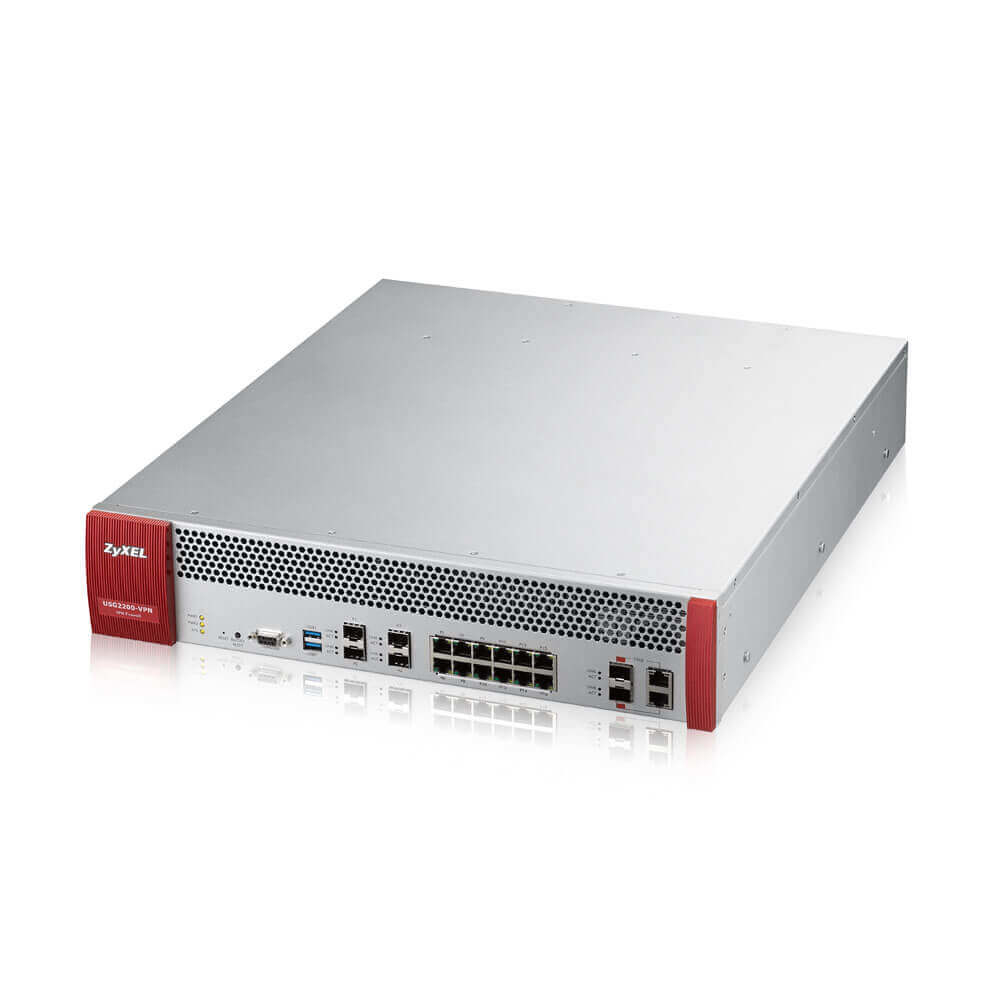

USG2200 hardware firewall 25 Gbit/s
Model USG2200Part no. USG2200-EU0102FEAN 4718937602858
46 specifications
- Weight12.4 kg
- Firewall throughput25 Gbit/s
- Heat dissipation406.045 BTU/h
- Concurrent SSL/VPN connections (default)250
- Security algorithmsHTTPS, SSL/TLS
- Routing protocolsOSPF, RIP-1, RIP-2
Overview
- Weight
- 12.4 kg
- Firewall throughput
- 25 Gbit/s
- Heat dissipation
- 406.045 BTU/h
- Concurrent SSL/VPN connections (default)
- 250
- Security algorithms
- HTTPS, SSL/TLS
- Routing protocols
- OSPF, RIP-1, RIP-2
- Brand
- Zyxel
- Category
- Hardware Firewall
- Model
- USG2200
- Part number
- USG2200-EU0102F
- EAN / UPC
- 4718937602858
- Also known as
- Zyxel USG2200 hardware firewall 25 Gbit/s
Specifications
46 specifications in 14 groups
Data transmission
| Specification | Value |
|---|---|
| Firewall throughput | 25 Gbit/s |
| VPN throughput | 2.5 Gbit/s |
Performance
| Specification | Value |
|---|---|
| Heat dissipation | 406.045 BTU/h |
| Mean time between failures (MTBF) | 280490 h |
Network
| Specification | Value |
|---|---|
| Concurrent SSL/VPN connections (default) | 250 |
| Concurrent SSL/VPN connections (maximum) | 1000 |
| Dynamic routing | Yes |
| Static route | Yes |
| Active TCP connections (max) | 1500000 |
| DHCP client | Yes |
| DHCP server | Yes |
| Number of VLANs | 256 |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | HTTPS, SSL/TLS |
| Content filtering | CF 2.0 |
| VPN support | IKEv2, IPSec, SSL, L2TP/IPSec |
Protocols
| Specification | Value |
|---|---|
| Routing protocols | OSPF, RIP-1, RIP-2 |
| Supported network protocols | HTTP, HTTPS, FTP |
Ports & interfaces
| Specification | Value |
|---|---|
| Gigabit Ethernet (copper) ports quantity | 12 |
| USB 2.0 ports quantity | 2 |
| Console port | RJ-45 |
| SFP module slots quantity | 4 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 110-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2.5 A |
| Power consumption (max) | 119 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC 15 (A), IC, CE EMC (A), C-Tick (A), BSMI LVD (EN60950-1) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 438.5 mm |
| Depth | 500 mm |
| Height | 89 mm |
| Weight | 12.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 795 mm |
| Package height | 600 mm |
| Package depth | 215 mm |
| Package weight | 18.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
Other features
| Specification | Value |
|---|---|
| Firewall throughput | 25000 Mbit/s |
| VPN throughput | 2500 Mbit/s |
