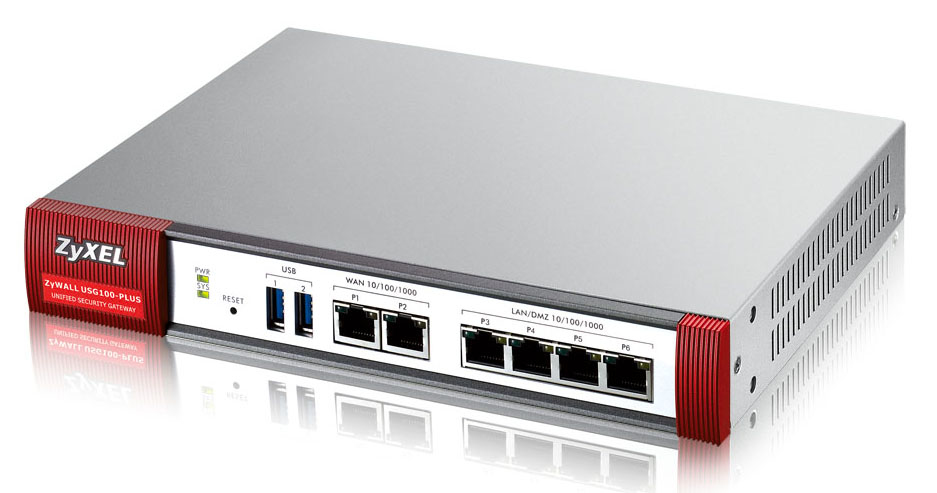

USG 100 + License
Model USG 100 + LicensePart no. USG100-PLUS-EU0102FEAN 4718937567263
48 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Type1U
- Weight1.2 kg
- Wi-FiNo
- Security algorithms128-bit AES, 3DES, DES
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Type
- 1U
- Weight
- 1.2 kg
- Wi-Fi
- No
- Security algorithms
- 128-bit AES, 3DES, DES
- Brand
- Zyxel
- Category
- Hardware Firewall
- Model
- USG 100 + License
- Part number
- USG100-PLUS-EU0102F
- EAN / UPC
- 4718937567263, 4718937573400, 5052916648666
- Also known as
- Zyxel USG 100 + License hardware firewall 1U 0.6 Gbit/s
Specifications
48 specifications in 14 groups
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1 Gbit/s |
| Firewall throughput | 0.6 Gbit/s |
| VPN throughput | 0.15 Gbit/s |
| IPS/IDS throughput | 30 Mbit/s |
| Maximum firewall connections | 40000 |
| Maximum firewall connections per second | 1000 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Networking standards | IEEE 802.1Q |
| Number of users | 25 user(s) |
| VPN tunnels quantity | 50 |
| DHCP client | Yes |
| DHCP server | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit AES, 3DES, DES |
| Firewall security | ICSA |
| Content filtering | SIP/H.323 NAT |
| VPN support | SSL VPN |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | HTTP/FTP/SMTP/POP3/IMAP4 |
Management features
| Specification | Value |
|---|---|
| LED indicators | LAN, Link, Status |
| Management platform | HTTPS/HTTP |
| Remote administration | console/web console/SSH/TELNET |
| Web-based management | Yes |
| Connectivity LEDs | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| WAN connection | Ethernet (RJ-45) |
Storage
| Specification | Value |
|---|---|
| RAID support | No |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Form factor | 1U |
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.2 A |
| Power consumption (typical) | 17 W |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | No |
Certificates
| Specification | Value |
|---|---|
| Certification | - FCC Part15 (Class B) - CE EMC (Class B) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | -5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 242 x 167 x 35.5 mm |
| Weight | 1.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Kaspersky AV, Commtouch Anti-Spam,Commtouch Content-Filter |
Other features
| Specification | Value |
|---|---|
| Firewall throughput | 600 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Power LED | Yes |
| VPN throughput | 150 Mbit/s |
