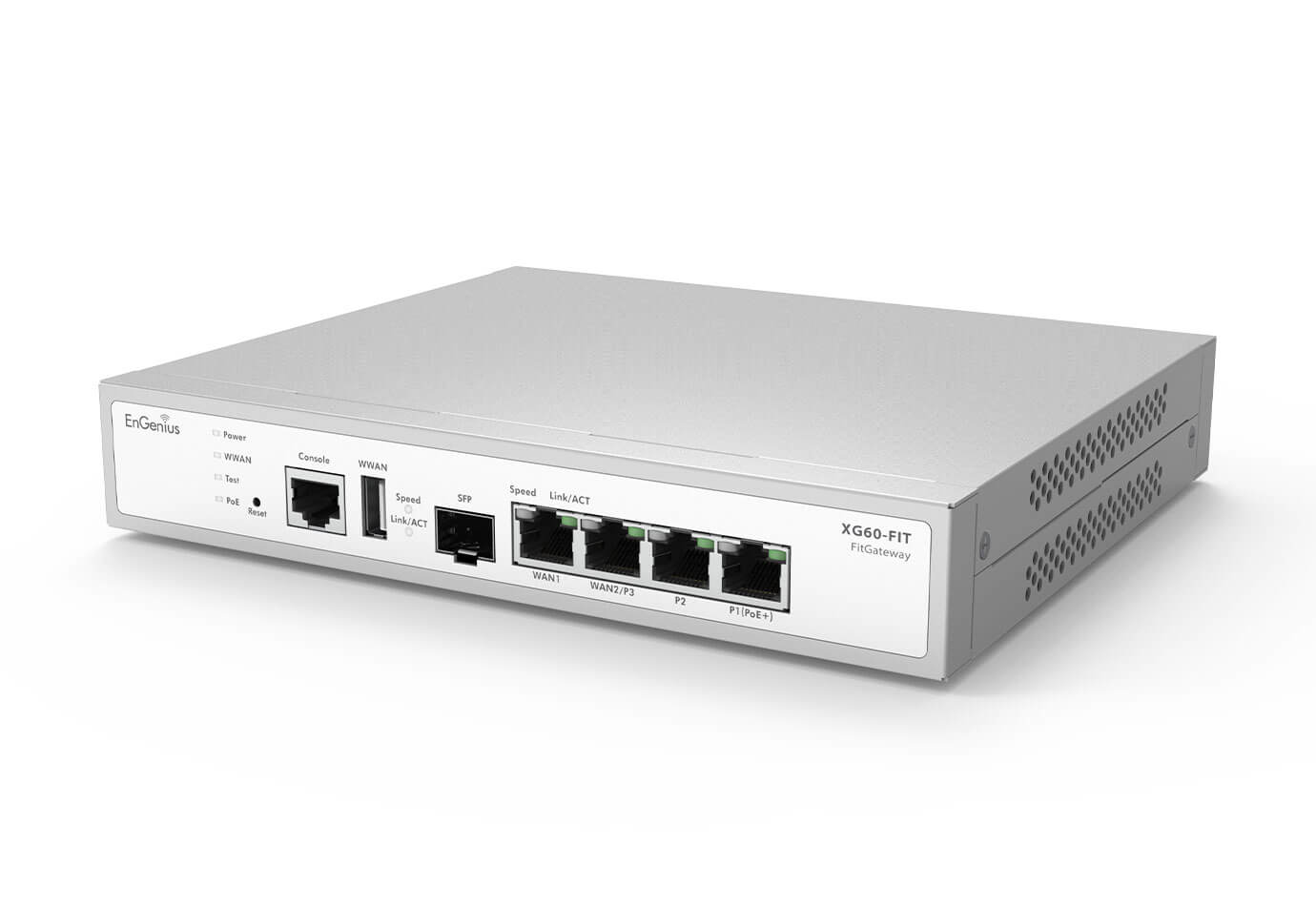

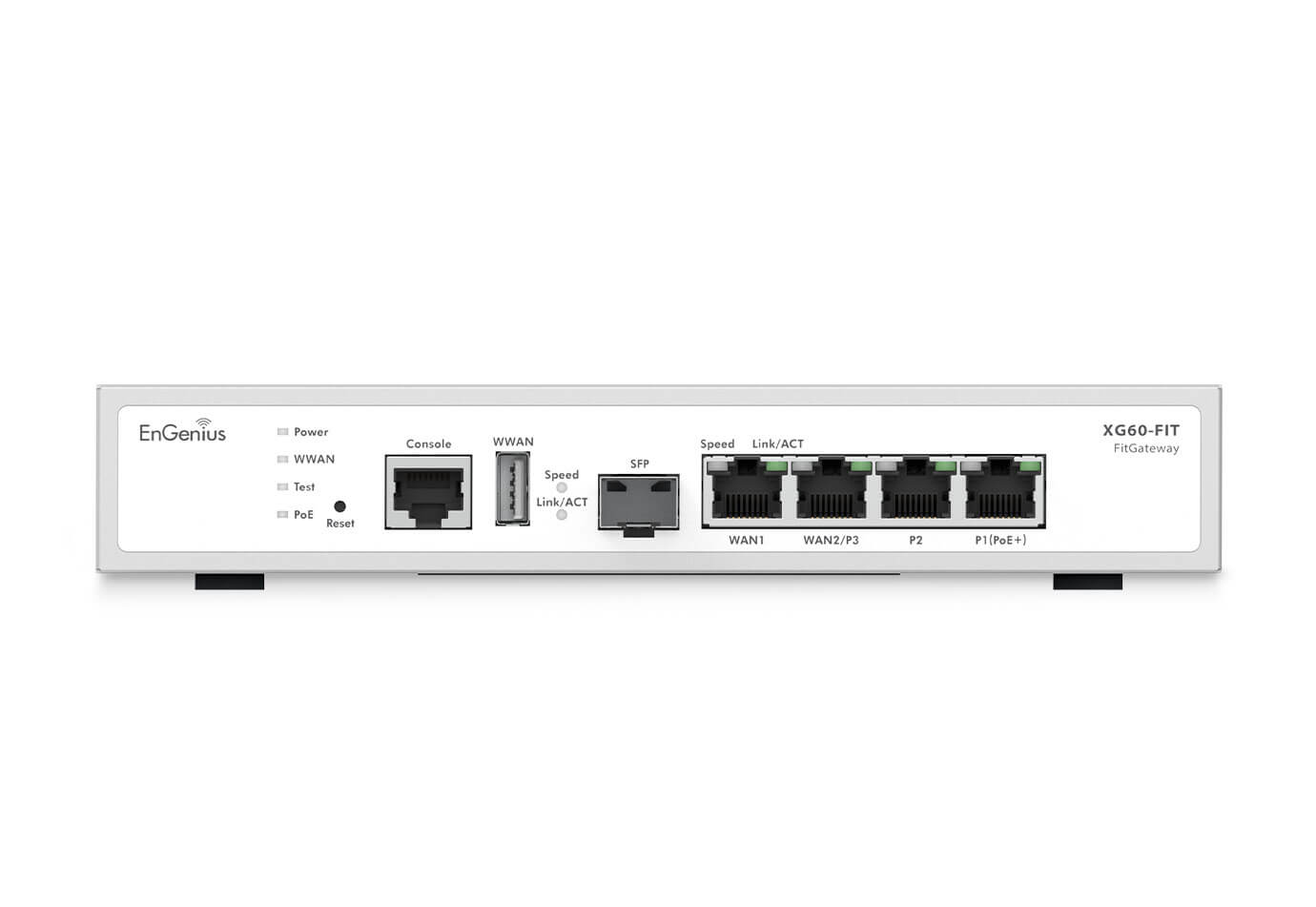

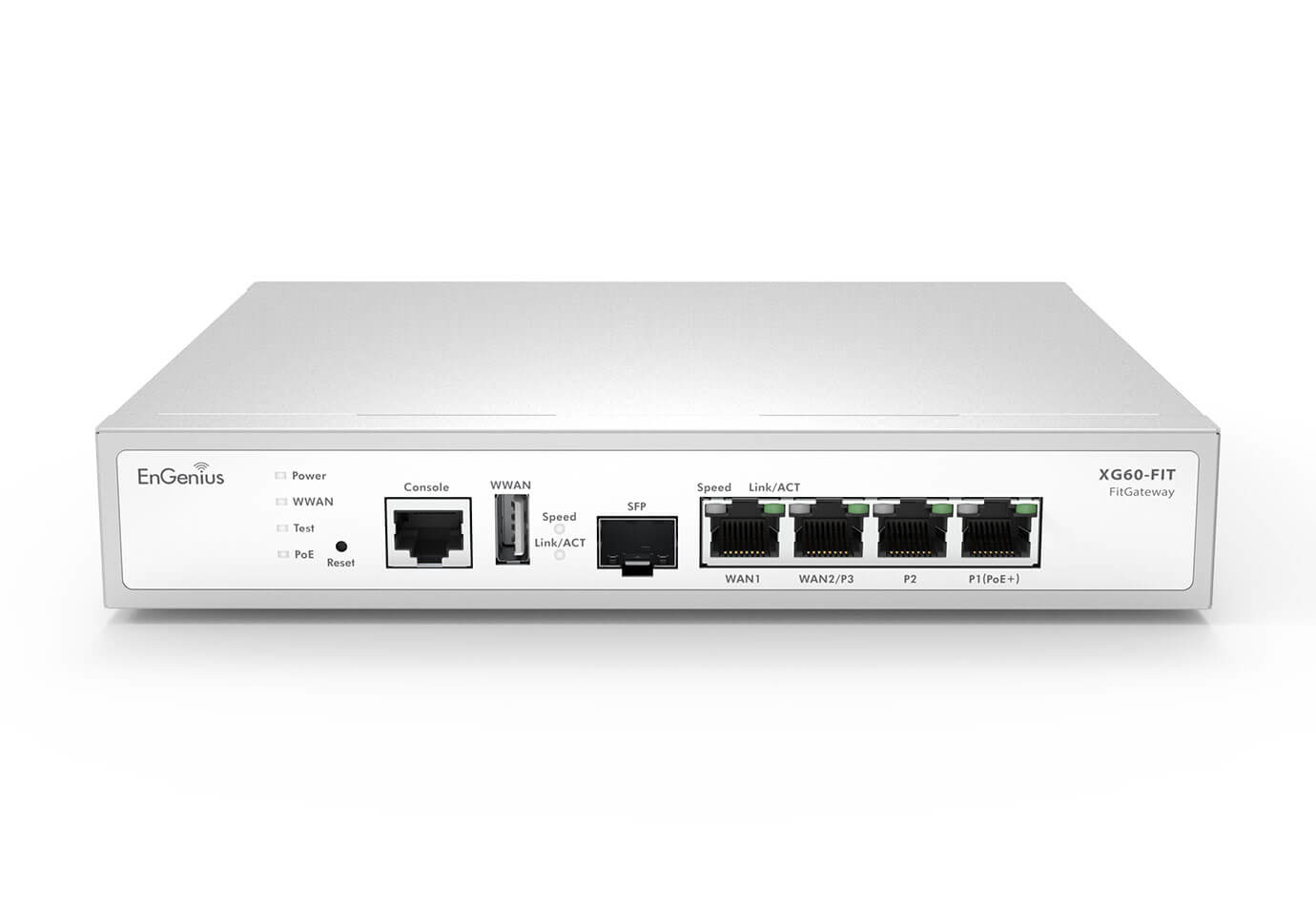

FitXpress Managed Gateway 2 x GbE LAN & 2 x GbE WAN & 1 SFP port
Model XG60-FITEAN 655216011304
45 specifications
- Memory4096 MB
- ConnectivityWired
- Firewall throughput3 Gbit/s
- Built-in processorYes
- Networking standardsIEEE 802.3af, IEEE 802.3at
- Flash memory8000 MB
Overview
- Memory
- 4096 MB
- Connectivity
- Wired
- Firewall throughput
- 3 Gbit/s
- Built-in processor
- Yes
- Networking standards
- IEEE 802.3af, IEEE 802.3at
- Flash memory
- 8000 MB
- Brand
- EnGenius
- Category
- Hardware Firewall
- Model
- XG60-FIT
- Part number
- XG60-FIT
- EAN / UPC
- 655216011304, 4711488350292, 4713361936494
- Also known as
- EnGenius FitXpress Managed Gateway 2 x GbE LAN & 2 x GbE WAN & 1 SFP port
Specifications
45 specifications in 15 groups
Data transmission
| Specification | Value |
|---|---|
| Firewall throughput | 3 Gbit/s |
| VPN throughput | 0.9 Gbit/s |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Internal memory | 4096 MB |
| Processor frequency | 2.1 MHz |
| Reset button | Yes |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Number of users | 50 user(s) |
| VPN tunnels quantity | 100 |
| Static route | Yes |
| Active TCP connections (max) | 1000000 |
| DHCP server | Yes |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Port forwarding | Yes |
Management features
| Specification | Value |
|---|---|
| LED indicators | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |

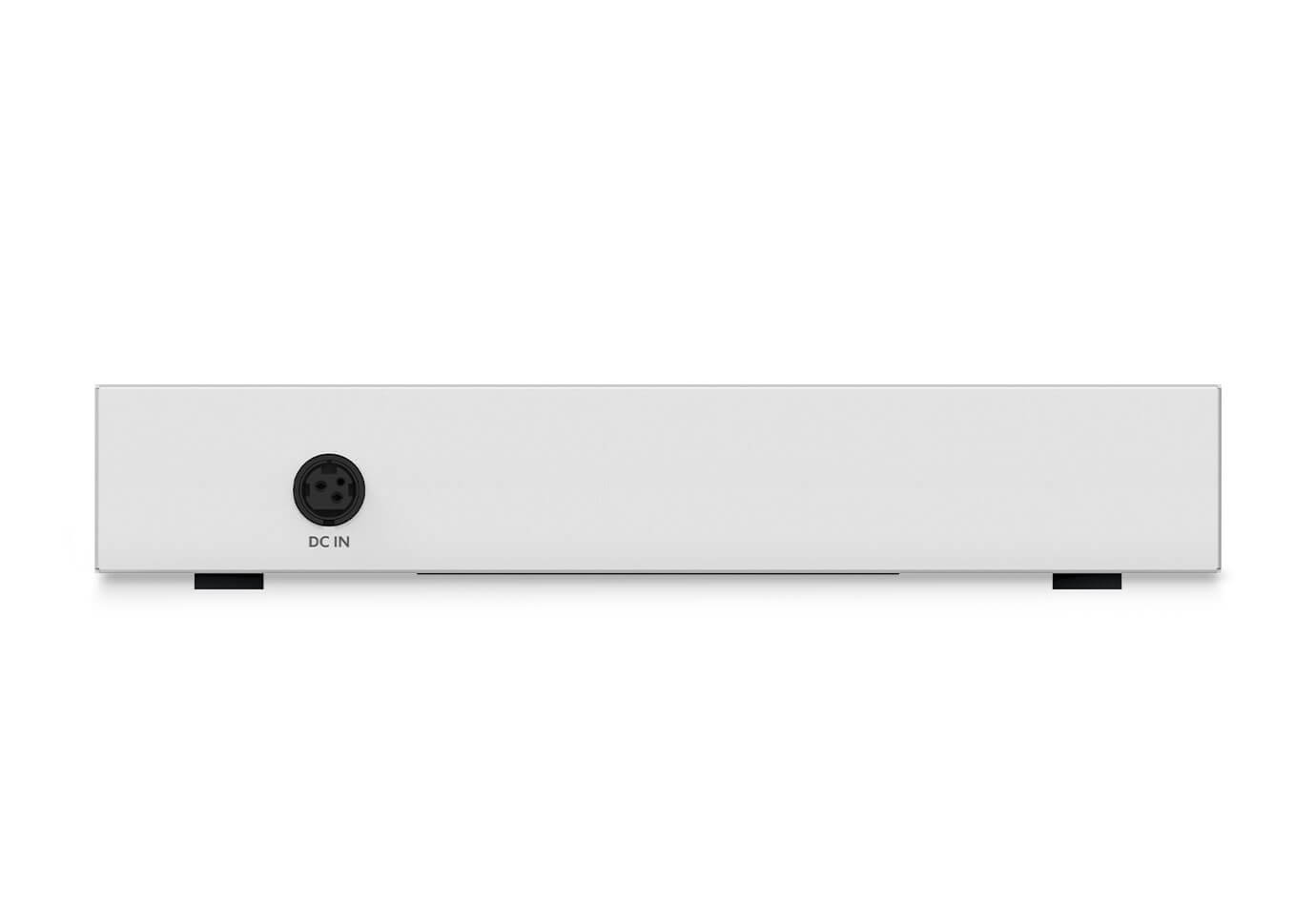

| DC-in jack | Yes |
| SFP module slots quantity | 1 |
| WAN connection | Ethernet (RJ-45) |
Storage
| Specification | Value |
|---|---|
| Flash memory | 8000 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
Power
| Specification | Value |
|---|---|
| Input current | 1.2 A |
| DC input voltage | 54 V |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15 (Class B) IC CE EMC CB UL |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 179.5 mm |
| Height | 35 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 279 mm |
| Package height | 297 mm |
| Package depth | 104 mm |
| Package weight | 1.93 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 7.7 kg |
| Master (outer) case height | 315 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case width | 290 mm |
| Products per master (outer) case | 4 pc(s) |
Other features
| Specification | Value |
|---|---|
| Firewall throughput | 3000 Mbit/s |
| VPN throughput | 900 Mbit/s |
