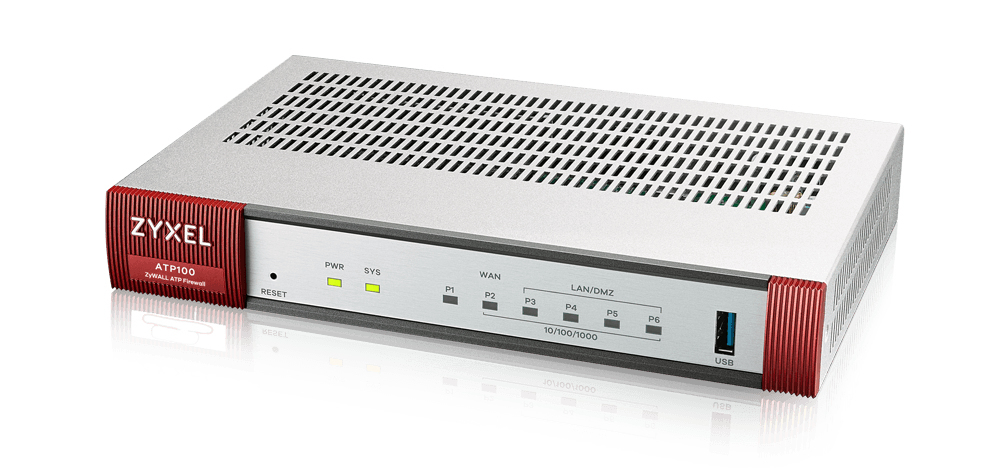

ATP100 hardware firewall 1 Gbit/s
Model ATP100Part no. ATP100-EU0112FEAN 4718937630929
47 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Weight850 g
- Heat dissipation42.65 BTU/h
- VPN tunnels quantity40
- Security algorithmsIPSec, SSL/TLS
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 850 g
- Heat dissipation
- 42.65 BTU/h
- VPN tunnels quantity
- 40
- Security algorithms
- IPSec, SSL/TLS
- Brand
- Zyxel
- Category
- Hardware Firewall
- Model
- ATP100
- Part numbers
- ATP100-EU0112F, ATP100-EU0102F, ATP100
- EAN / UPC
- 4718937630929, 4718937607167, 760559126667, 760559130220
- Also known as
- Zyxel ATP100 hardware firewall 1 Gbit/s
Specifications
47 specifications in 14 groups
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1 Gbit/s |
| Firewall throughput | 1 Gbit/s |
| VPN throughput | 0.3 Gbit/s |
| IPSec VPN throughput | 40 Gbit/s |
| SSL performance | 10 transactions/sec |
| Maximum connections (SPI) | 1000 |
| HTTPS encryption | Yes |
Performance
| Specification | Value |
|---|---|
| Heat dissipation | 42.65 BTU/h |
| Concurrent connections | 300000 |
| Concurrent users | 10 user(s) |
| Mean time between failures (MTBF) | 989810.8 h |
Network
| Specification | Value |
|---|---|
| VPN tunnels quantity | 40 |
| Active TCP connections (max) | 300000 |
| Number of VLANs | 8 |
Security
| Specification | Value |
|---|---|
| Security algorithms | IPSec, SSL/TLS |
| Stateful Packet Inspection (SPI) | Yes |
| Content filtering | 1 |
| VPN support | IKEv2, IPSec, SSL, L2TP/IPSec |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Console port | RJ-45 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Number of console ports | 1 |
| Ethernet DMZ ports quantity | 1 |
| SFP module slots quantity | 1 |
| WAN connection | Ethernet (RJ-45) |
Design
| Specification | Value |
|---|---|
| Built-in fan | Yes |
Power
| Specification | Value |
|---|---|
| Input current | 2 A |
| Power consumption (max) | 12.5 W |
| Power consumption (typical) | 12.5 W |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15 (Class B), CE (Class B), RCM (Class B), BSMI, LVD |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 216 x 143 x 33 mm |
| Weight | 850 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 284 mm |
| Package height | 190 mm |
| Package depth | 100 mm |
| Package weight | 1.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45), RS-232 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Other features
| Specification | Value |
|---|---|
| Firewall throughput | 1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| VPN throughput | 300 Mbit/s |
