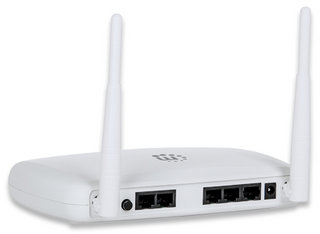

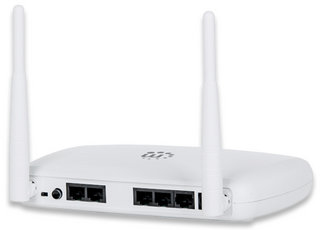

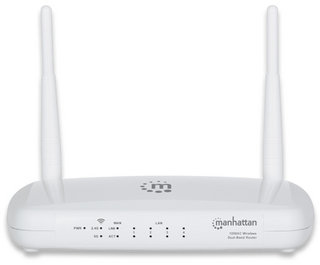

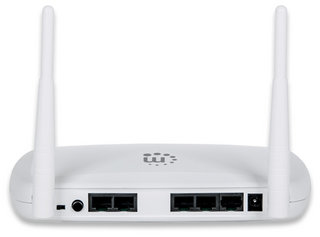

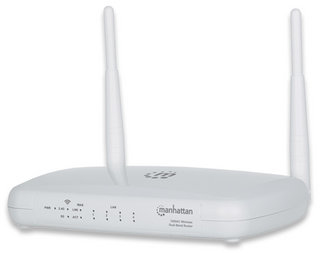

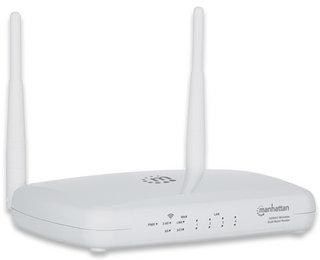

Manhattan 525480 wireless router Gigabit Ethernet Dual-band (2.4 GHz

Manhattan 525480 wireless router Gigabit Ethernet Dual-band (2.4 GHz

5 GHz) White

Model 525480EAN 7666235254804

55 specifications

Memory64 MB
SpeedWi-Fi 5 (802.11ac)
Weight1 kg
ColourWhite
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)

See all specifications

Overview

Memory: 64 MB
Speed: Wi-Fi 5 (802.11ac)
Weight: 1 kg
Colour: White
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)

Brand: Manhattan
Category: Wireless Router
Model: 525480
Part number: 525480
EAN / UPC: 7666235254804, 087605444965, 132018543351, 163121506797 +8 more
Also known as: Manhattan 525480 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White

Specifications

55 specifications in 17 groups

WAN connection

Specification	Value
Ethernet WAN	Yes

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Modulation	16-QAM, 64-QAM, BPSK, OFDM, QPSK

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Mobile network

Specification	Value
3G	No
4G	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes

Security

Specification	Value
Security algorithms	128-bit WEP, 64-bit WEP, WEP, WPA, WPA2
Firewall	Yes
Filtering	Yes
MAC address filtering	Yes
URL filtering	Yes
DMZ support	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes

Design

Specification	Value
Product colour	White
LED indicators	Activity, LAN, Link, Power, WAN, WLAN
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick start guide	Yes

Antenna

Specification	Value
Antenna design	External
Antenna gain level (max)	3 dBi
Antennas quantity	2

Features

Specification	Value
Internal memory	64 MB
Flash memory	4 MB

Power

Specification	Value
Power supply	10 W

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C

Weight & dimensions

Specification	Value
Depth	120 mm
Height	26 mm
Weight	1 kg
Width	196 mm

Logistics data

Specification	Value
Harmonized System (HS) code	85176990

Other features

Specification	Value
Mobile network connection	No
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
Frequency band	2.4 & 5
Frequency range	2.4 - 5 GHz
Input current	2 A
Rack mounting	No
Supported protocols	CSMA/CA, CSMA/CD, TCP/IP, UDP, ICMP, PPPoE, NTP
WLAN data transfer rates supported	11,54,300,867 Mbit/s
xDSL connection	No
