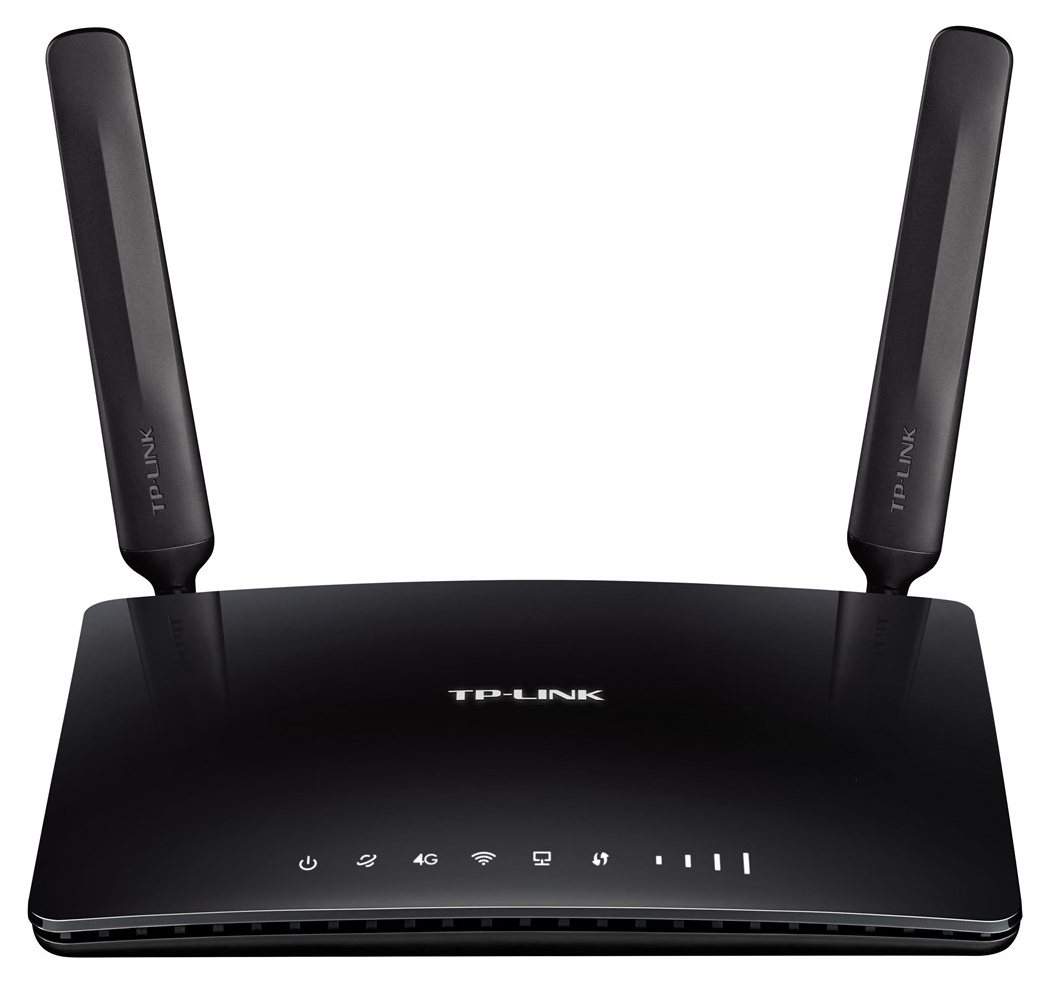

TP-Link 300 Mbps Wireless N

300 Mbps Wireless N

4G LTE Router

Model TL-MR6400EAN 7429500174173

92 specifications

SpeedWi-Fi 4 (802.11n)
TypeTabletop router
ColourBlack
Ethernet WANYes
Wi-Fi bandSingle-band (2.4 GHz)
Mobile network generation4G

See all specifications

Overview

Speed: Wi-Fi 4 (802.11n)
Type: Tabletop router
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Single-band (2.4 GHz)
Mobile network generation: 4G

Brand: TP-Link
Category: Wireless Router
Model: TL-MR6400
Part numbers: TL-MR6400, TL-MR6400 V4
EAN / UPC: 7429500174173, 5715063179321, 6935364086848, 6935364092764 +8 more
Also known as: TP-Link 300 Mbps Wireless N 4G LTE Router

Specifications

92 specifications in 19 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No

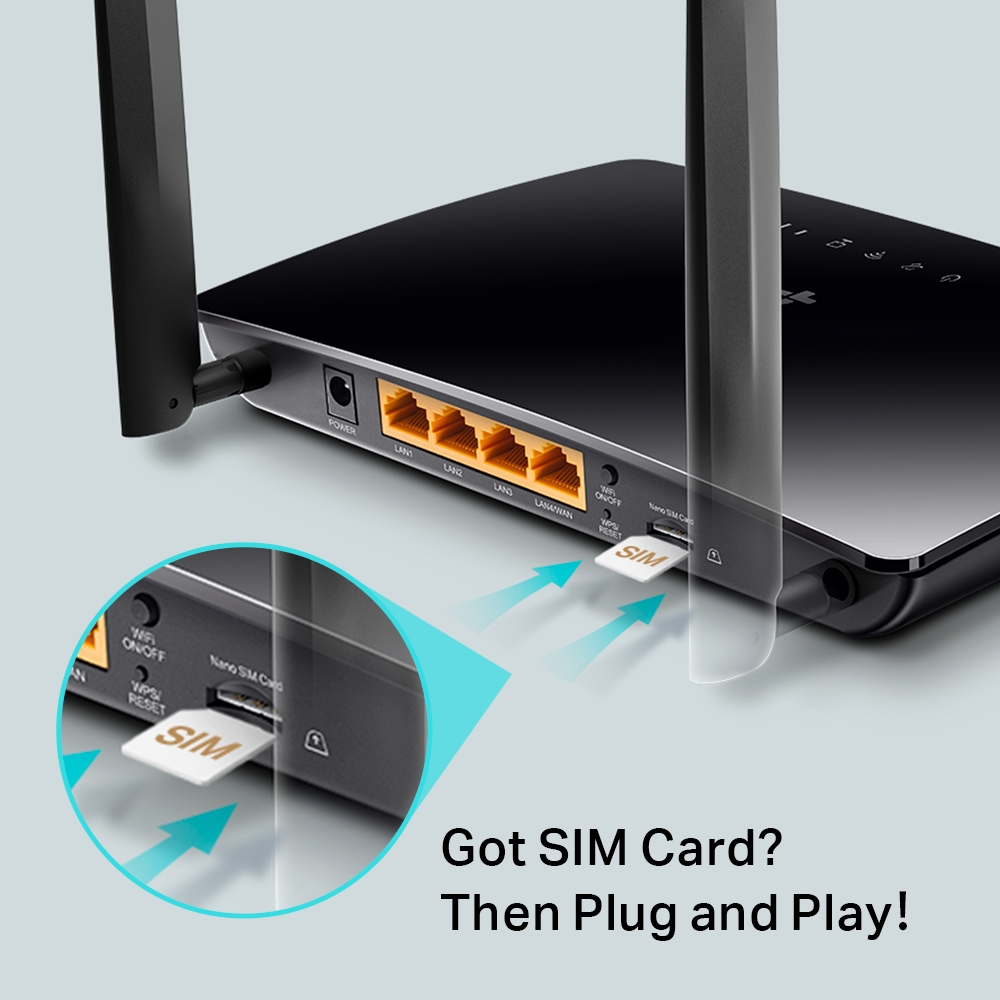

SIM card slot	Yes
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Port forwarding	Yes
Port triggering	Yes
Dynamic DNS (DDNS)	Yes
Number of guest networks (2.4 GHz)	1
VPN server	PPTP VPN, IPSec VPN , OpenVPN
VPN Passthrough	Yes
VPN support	PPTP, L2TP, IPSec

Mobile network

Specification	Value
Mobile network generation	4G
3G	Yes
4G	Yes
2G standards	Edge, GPRS, GSM
3G standards	HSPA+, UMTS
4G standard	LTE
3G bands supported	900,2100 MHz
4G bands supported	800,900,1800,1900 MHz
GSM bands supported	850,900,1800,1900 MHz

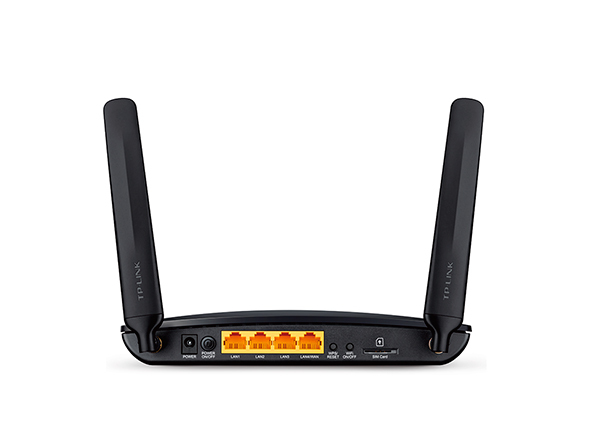

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	No
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall	Yes
Access Control List (ACL)	Yes
Firewall security	DoS, SPI Firewall, IP and MAC Address Binding
Guest access	Yes
Stateful Packet Inspection (SPI)	Yes
DoS attack prevention	Yes
Parental control	Yes
DMZ support	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Supported network protocols	IPv4, IPv6

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
Indication light	Yes
LED indicators	Yes
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	CE, FCC, RoHS

Antenna

Specification	Value
Antenna design	Internal & external
Antennas quantity	4
Detachable antenna(s)	Yes

Power

Specification	Value
Power source type	DC
Output voltage	12 V
Output current	1 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Linux operating systems supported	Yes
Mac operating systems supported	macOS

Weight & dimensions

Specification	Value
Depth	141 mm
Height	33.5 mm
Width	202 mm

Packaging data

Specification	Value
Package width	307 mm
Package depth	223 mm
Package height	70 mm
Package weight	600 g

Logistics data

Specification	Value
Harmonized System (HS) code	85176990

Other features

Specification	Value
Mobile network connection	Yes
Bandwidth (first)	2.4 GHz
Frequency band	2.4 GHz
Rack mounting	Yes
Supported WAN type	RJ-45 SIM
USB ports quantity	0
WLAN data transfer rates supported	11,54,300 Mbit/s
xDSL connection	No
