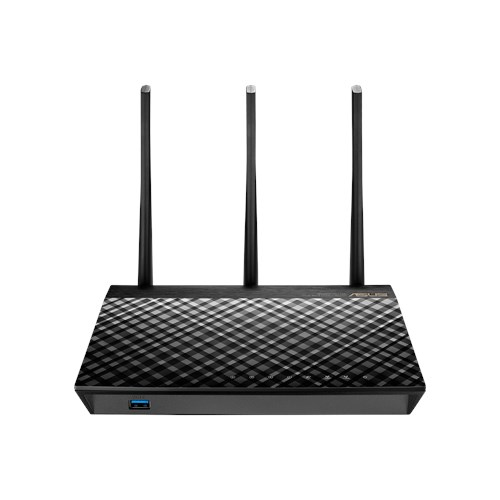

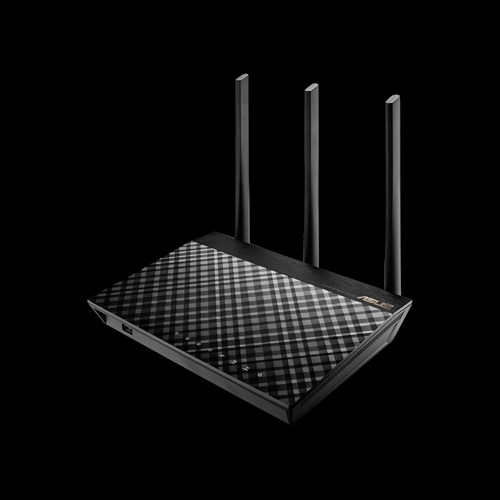

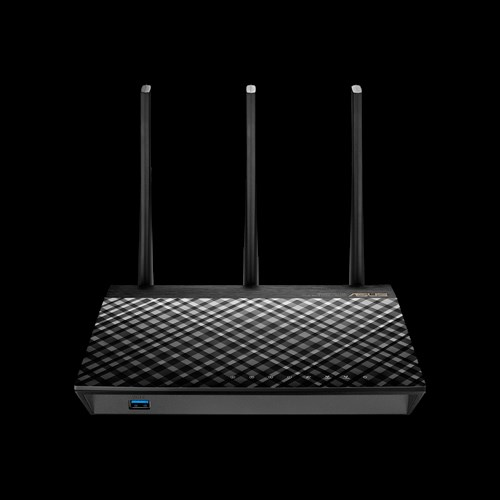

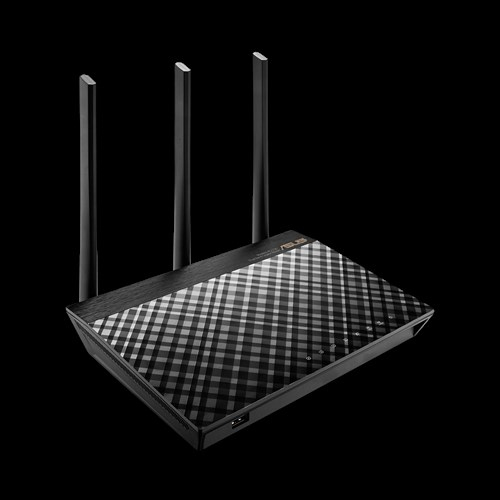

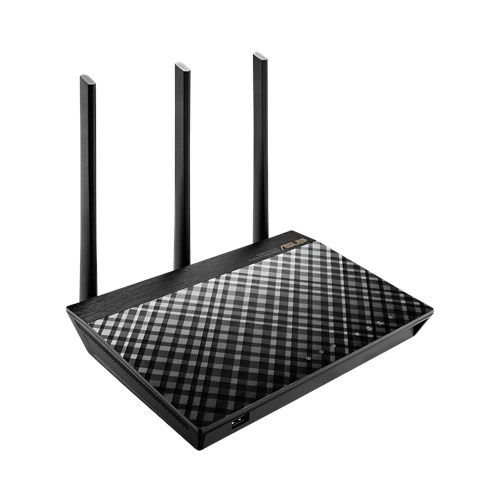

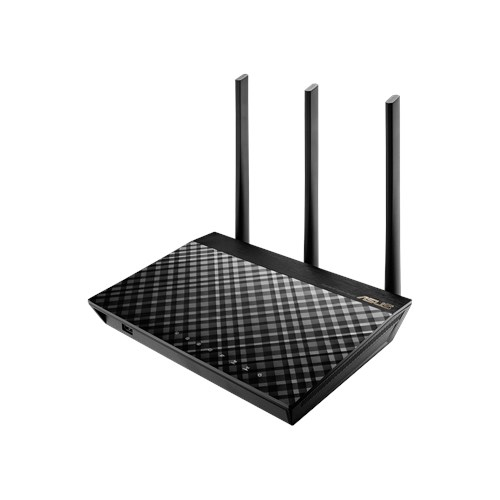

ASUS RT-AC1900U wireless router Gigabit Ethernet Dual-band (2.4 GHz

RT-AC1900U wireless router Gigabit Ethernet Dual-band (2.4 GHz

5 GHz) Black

Model RT-AC1900UPart no. 90IG04K0-BO3000EAN 4712900833270

93 specifications

SpeedWi-Fi 5 (802.11ac)
TypeTabletop router
Weight660 g
ColourBlack
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)

See all specifications

Overview

Speed: Wi-Fi 5 (802.11ac)
Type: Tabletop router
Weight: 660 g
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)

Brand: ASUS
Category: Wireless Router
Model: RT-AC1900U
Part numbers: 90IG04K0-BO3000, 90IG04K0-BU9000
EAN / UPC: 4712900833270, 4712900833263
Also known as: ASUS RT-AC1900U wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

Specifications

93 specifications in 19 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	No

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1900 Mbit/s
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)	600 Mbit/s
WLAN data transfer rate (second band)	1300 Mbit/s
Channel bandwidth	20 MHz

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11d, IEEE 802.11g, IEEE 802.11n
Flow control support	Yes
Port forwarding	Yes
Automatic channel selection	Yes
VPN Passthrough	Yes
VPN support	Automatic IP PPPoE PPTP Pass-Through L2TP Pass-Through IPSec Pass-Through RTSP Pass-Through

Mobile network

Specification	Value
3G	No
4G	No

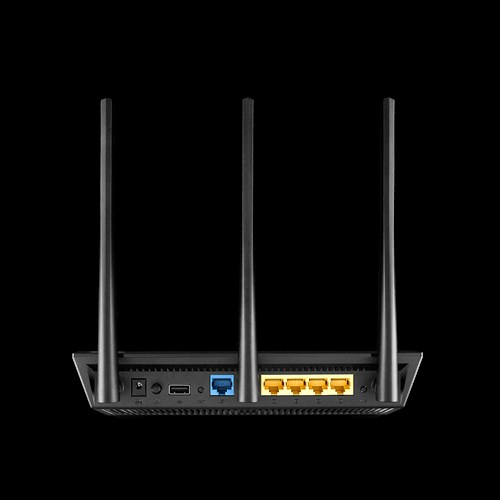

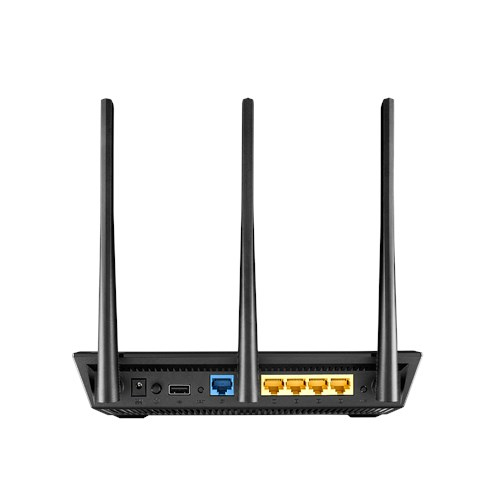

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Web-based setup wizard	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, HTTPS, SSID, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK
Authentication method	RADIUS
Firewall	Yes
Firewall security	Parental control
Guest access	Yes
Port-based Network Access Control (PNAC)	Yes
Stateful Packet Inspection (SPI)	Yes
DoS attack prevention	Yes
Filtering	Yes
MAC address filtering	Yes
MAC address table	32 entries
IP address filtering	Yes
URL filtering	Yes
System event log	Yes
DMZ support	Yes
Network address translation (NAT)	Yes
NAT functionality	PPTP Pass-Through L2TP Pass-Through IPSec Pass-Through RTSP Pass-Through

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Management protocols	IGMP v1/v2/v3
Supported network protocols	IPv4, IPv6

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
Housing material	Acrylonitrile butadiene styrene (ABS)
Wall mountable	Yes
Indication light	Yes
LED indicators	LAN, Power, WAN, WLAN
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Manual	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	CE

Antenna

Specification	Value
Antenna design	External
Antenna connector type	SMA dipole
Antenna gain level (max)	3.28 dBi
Antennas quantity	3

Features

Specification	Value
Plug and Play	Yes
Firmware upgradeable	Yes

Power

Specification	Value
Power source type	AC, DC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	19 V
Output current	1.75 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	50 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	20 - 90%
Storage temperature (T-T)	0 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mou
Mac compatibility	Yes

Weight & dimensions

Specification	Value
Depth	148 mm
Height	45 mm
Weight	660 g
Width	218 mm

Packaging data

Specification	Value
Package type	Box

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
