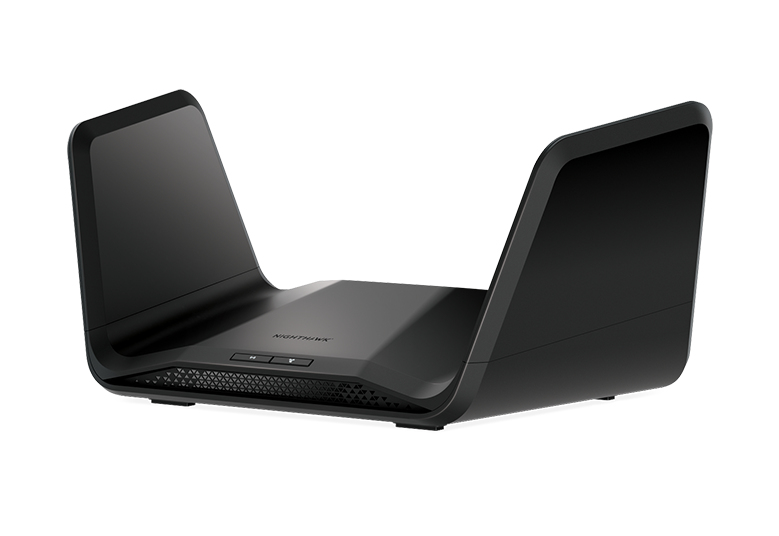

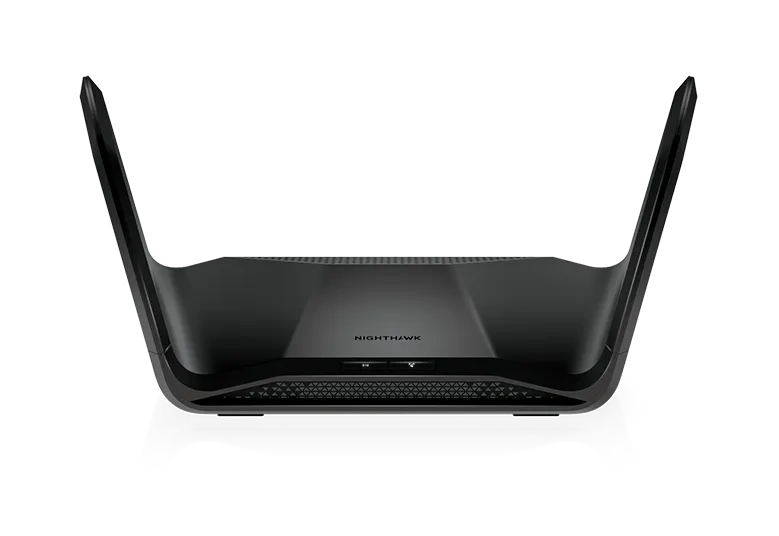

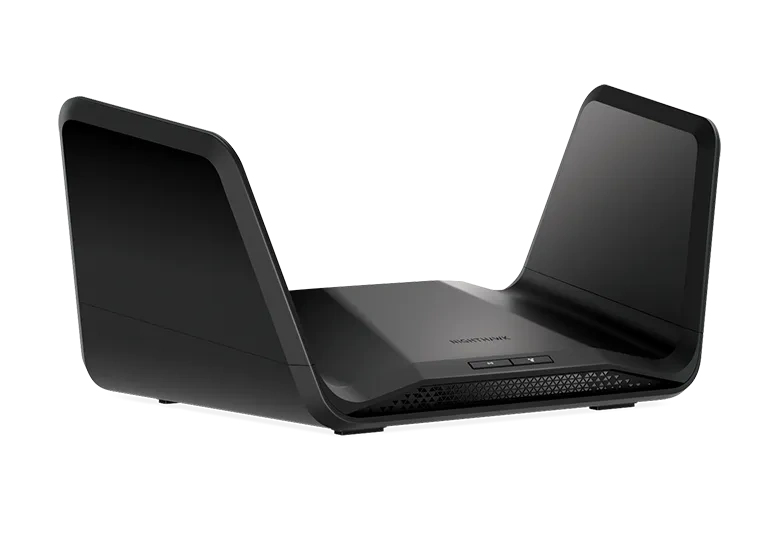

RAX70 wireless router Gigabit Ethernet Tri-band (2.4 GHz
5 GHz / 5 GHz) Black
Model RAX70Part no. RAX70-100NASEAN 606449151947
139 specifications
- Memory1024 MB
- SpeedWi-Fi 6 (802.11ax)
- TypeTabletop router
- Weight1.17 kg
- ColourBlack
- Ethernet WANYes
Overview
- Memory
- 1024 MB
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Tabletop router
- Weight
- 1.17 kg
- Colour
- Black
- Ethernet WAN
- Yes
- Brand
- NETGEAR
- Category
- Wireless Router
- Model
- RAX70
- Part number
- RAX70-100NAS
- EAN / UPC
- 606449151947
- Also known as
- NETGEAR RAX70 wireless router Gigabit Ethernet Tri-band (2.4 GHz / 5 GHz / 5 GHz) Black
Specifications
139 specifications in 17 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 6600 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 600 Mbit/s |
| WLAN data transfer rate (second band) | 1200 Mbit/s |
| WLAN data transfer rate (third band) | 4800 Mbit/s |
| Channels quantity | 3 channels |
| Modulation | 1024-QAM |
| High power | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Auto-sensing | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Multicast support | Yes |
| Port forwarding | Yes |
| Port triggering | Yes |
| Load balancing system | Yes |
| Automatic channel selection | Yes |
| Dynamic DNS (DDNS) | Yes |
| Static route | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 2 |
| IPoE/PPPoE data rate | 1000 Mbit/s |
| L2TP/PPTP data rate | 1000 Mbit/s |
| Support Samba (storage) | Yes |
| USB sharing | Yes |
| Built-in FTP server | Yes |
| Media server | Yes |
| VPN server | OpenVPN |
| VPN tunnels quantity | 1 |
| PPPoE/PPTP/L2TP pass-through | Yes |
| Ping check | Yes |
| Routing table | Manual |
| VPN Passthrough | Yes |
| VPN support | OpenVPN, IPSec, PPTP, L2TP pass-through |
Mobile network
| Specification | Value |
|---|---|
| Mobile network generation | Not supported |

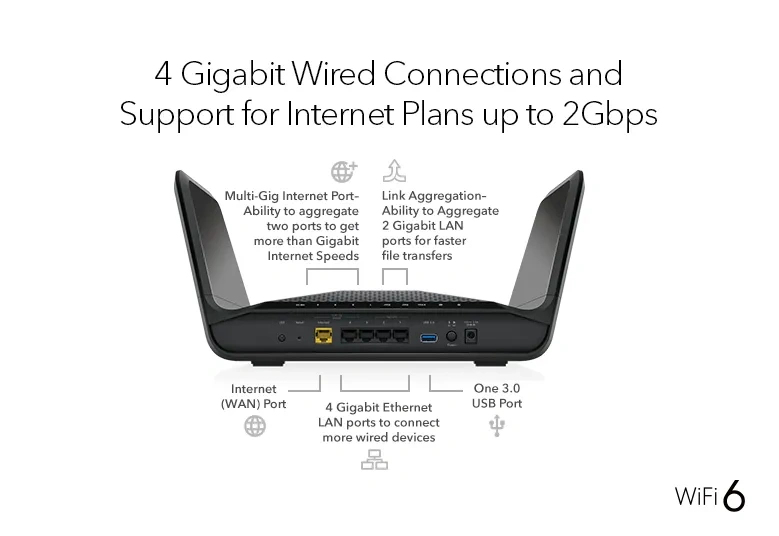

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Web-based setup wizard | Yes |
| Bandwidth control | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MIMO | Yes |
| MU-MIMO technology | Yes |
| Number of data streams | 8x8 |
| Traffic statistics | Yes |
| Backup function | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2-PSK, WPA3, WPA2, WPA2-Enterprise, WPA-Enterprise, 128-bit AES |
| Authentication method | WPA-PSK, WPA2-PSK, WPA3-Personal |
| Firewall | Yes |
| Access Control List (ACL) | Yes |
| Firewall security | SPI, NAT |
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Schedule access | Yes |
| DDoS protection | Yes |
| DoS attack prevention | Yes |
| Parental control | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| MAC address table | 256 entries |
| IP address filtering | Yes |
| URL filtering | Yes |
| System event log | Yes |
| IGMP snooping | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
| NAT functionality | NAT, PAT, Port Forwarding, Port Triggering |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Media access protocol | DLNA, ReadySHARE |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Management protocols | HTTP, HTTPS |
| Data link protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Supported network protocols | IPv4, IPv6 |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
| Housing material | Plastic |
| Indication light | Yes |
| LED indicators | Power, LAN, WAN, USB, WPS |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Warranty card | Yes |
| Manual | Yes |
| Quick installation guide | Yes |
| Quick start guide | Yes |
| Bundled software | NETGEAR Nighthawk App, NETGEAR Armor (trial), ReadySHARE |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |

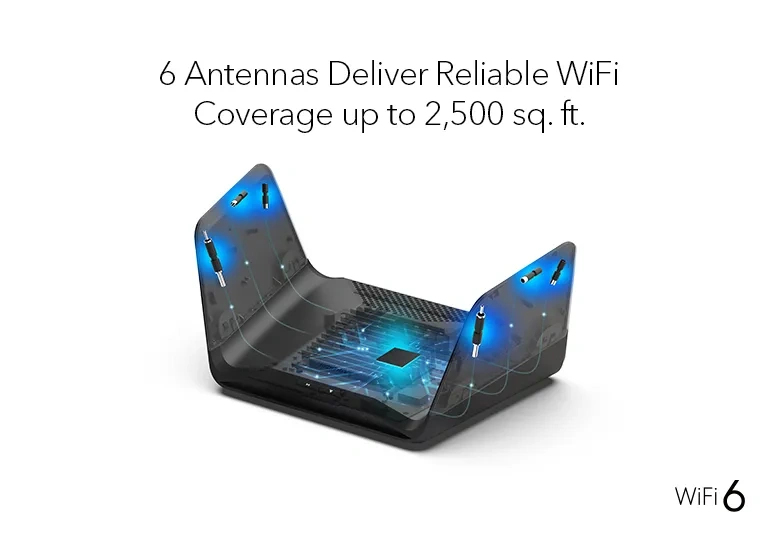

Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Broadcom |
| Processor frequency | 1500 MHz |
| Processor cores | 4 |
| Internal memory | 1024 MB |
| Internal memory type | DDR3 |
| Flash memory | 512 MB |
| Number of simultaneously connected devices (max) | 40 |
| Standalone mode | Yes |
| Watch Dog function | Yes |
| Plug and Play | Yes |
| Works with Amazon Alexa | Yes |
| Works with the Google Assistant | Yes |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Output voltage | 12 V |
| Output current | 5 A |
| Power consumption (typical) | 31.2 W |
| Power supply | 60 W |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 208 mm |
| Height | 167 mm |
| Weight | 1.17 kg |
| Width | 347 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
