Product comparison · 2 wireless routers

Manhattan 525480 wireless router Gigabit Ethernet Dual-band (2.4 GHz vs Manhattan 525541 wireless router Fast Ethernet Dual-band (2.4 GHz

Add a product
  • 37specifications compared
  • 8differ
  • 29identical
  • 37known for one product only

Key differences

  • WLAN data transfer rate (max)
    • 867 Mbit/s
    • 733 Mbit/s
  • Ethernet LAN interface type
    • Gigabit Ethernet
    • Fast Ethernet
  • Ethernet LAN data rates
    • 10,100,1000 Mbit/s
    • 10,100 Mbit/s
  • Cabling technology
    • 10/100/1000Base-T(X)
    • 10/100Base-T(X)
  • Weight
    • 1 kg
    • 620 g

Side by side

Differences highlightedShow differences only
74 specifications
A

Manhattan

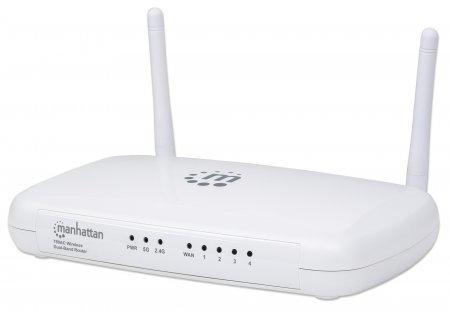

525480 wireless router Gigabit Ethernet Dual-band (2.4 GHz

Model 525480

View product
B

Manhattan

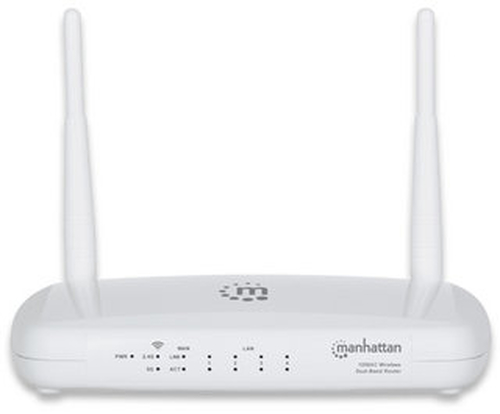

525541 wireless router Fast Ethernet Dual-band (2.4 GHz

Model 525541

View product
WAN connectionidentical
Ethernet WANYesYes
DSL WANKnown for oneNo
SIM card slotKnown for oneNo
3G/4G USB modem compatibilityKnown for oneNo
Wireless LAN features2 differ
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standardWi-Fi 5 (802.11ac)Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)Differs867 Mbit/s733 Mbit/s
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)Known for one300 Mbit/s
WLAN data transfer rate (second band)Known for one433 Mbit/s
ModulationDiffers16-QAM, 64-QAM, BPSK, OFDM, QPSK16-QAM, 64-QAM, DBPSK, DQPSK, DSSS, OFDM, QPSK
Network4 differ
Ethernet LANYesYes
Ethernet LAN interface typeDiffersGigabit EthernetFast Ethernet
Ethernet LAN data ratesDiffers10,100,1000 Mbit/s10,100 Mbit/s
Cabling technologyDiffers10/100/1000Base-T(X)10/100Base-T(X)
Networking standardsDiffersIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.3, IEEE 802.3ab, IEEE 802.3uIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Auto MDI/MDI-XKnown for oneYes
VPN supportKnown for onePPTP, IPSec, L2TP
Receiver sensitivityKnown for one5.0 GHz: 11a (54 Mbps): ‐69 dBm (±2 dBm) 11n (20 MHz, MCS7): ‐68 dBm (±2 dBm) 11n (40 MHz, MCS7): ‐64 dBm (±2 dBm) 11ac (80 MHz, MCS9): -55 dBm (±2 dBm) 2.4 GHz: 11b (11 Mbps): -83 dBm (±2 dBm) 11g (54 Mbps): -69 dBm (±2 dBm) 11n (20 MHz): -67 dBm (±2 dBm) 11n (40 MHz): -64 dBm (±2 dBm)
Mobile networkidentical
3GNoNo
4GNoNo
Ports & interfacesidentical
Ethernet LAN (RJ-45) ports44
USB portKnown for oneNo
Memory card slot(s)Known for oneNo
DC-in jackYesYes
Management featuresidentical
Quality of Service (QoS) supportYesYes
Web-based managementKnown for oneYes
Security1 differ
Security algorithmsDiffers128-bit WEP, 64-bit WEP, WEP, WPA, WPA264-bit WEP, 128-bit WEP, WEP, WPA, WPA-TKIP, WPA2, WPA2-AES
FirewallYesYes
FilteringYesYes
MAC address filteringYesYes
URL filteringYesYes
DMZ supportYesYes
Network address translation (NAT)Known for oneYes
Protocolsidentical
DHCP clientYesYes
DHCP serverYesYes
Universal Plug and Play (UPnP)Known for oneYes
Media access protocolKnown for oneCSMA/CA, CSMA/CD
Designidentical
Product typeKnown for oneTabletop router
Product colourWhiteWhite
LED indicatorsKnown for oneActivity, LAN, Link, Power, WAN, WLAN
On/off switchKnown for oneYes
Packaging contentidentical
Cables includedLAN (RJ-45)LAN (RJ-45)
AC adapter includedYesYes
ManualKnown for oneYes
Quick start guideYesYes
Bundled softwareKnown for oneExpressway Utility V. 1.1
Certificatesidentical
CertificationKnown for oneFCC Class B, CE, RoHS
Antennaidentical
Antenna designExternalExternal
Antennas quantity22
Antenna gain level (max)Known for one3 dBi
Poweridentical
Power source typeKnown for oneAC
Output voltageKnown for one12 V
Output currentKnown for one0.5 A
Power supplyKnown for one10 W
Operational conditionsidentical
Operating relative humidity (H-H)10 - 90%10 - 90%
Operating temperature (T-T)0 - 40 °C0 - 40 °C
Weight & dimensions1 differ
Depth120 mm120 mm
Height26 mm26 mm
WeightDiffers1 kg620 g
Width196 mm196 mm
Logistics dataidentical
Harmonized System (HS) code8517699085176990
Featuresidentical
Internal memoryKnown for one64 MB
Flash memoryKnown for one4 MB
Other featuresidentical
Mobile network connectionKnown for oneNo
Bandwidth (first)Known for one2.4 GHz
Bandwidth (second)Known for one5 GHz
Frequency bandKnown for one2.4 & 5
Frequency rangeKnown for one2.4 - 5 GHz
Input currentKnown for one2 A
Rack mountingKnown for oneNo
Supported protocolsKnown for oneCSMA/CA, CSMA/CD, TCP/IP, UDP, ICMP, PPPoE, NTP
WLAN data transfer rates supportedKnown for one11,54,300,867 Mbit/s
xDSL connectionKnown for oneNo

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
