P5 wireless router Gigabit Ethernet Dual-band (2.4 GHz
5 GHz) 5G Black
Model P5EAN 6971690792282
90 specifications
- Memory256 MB
- SpeedWi-Fi 6 (802.11ax)
- TypeTabletop router
- Weight670 g
- ColourBlack
- Ethernet WANYes
Overview
- Memory
- 256 MB
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Tabletop router
- Weight
- 670 g
- Colour
- Black
- Ethernet WAN
- Yes
- Brand
- Cudy
- Category
- Wireless Router
- Model
- P5
- Part number
- P5
- EAN / UPC
- 6971690792282
- Also known as
- Cudy P5 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 5G Black
Specifications
90 specifications in 17 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| SIM card slot | Yes |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 2402 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| Modulation | 1024-QAM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000,10,100 Mbit/s |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| VPN server | PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zerotier |
| VPN support | PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zerotier |
Mobile network
| Specification | Value |
|---|---|
| Mobile network generation | 5G |
| Dual SIM support | Yes |
| 3G standards | WCDMA |
| 4G standard | LTE-FDD |
| 5G bands supported | 6000 MHz |
| 5G standard | Sub6 SA/NSA |
| SIM card type | NanoSIM |
| Short Message Service (SMS) | Yes |

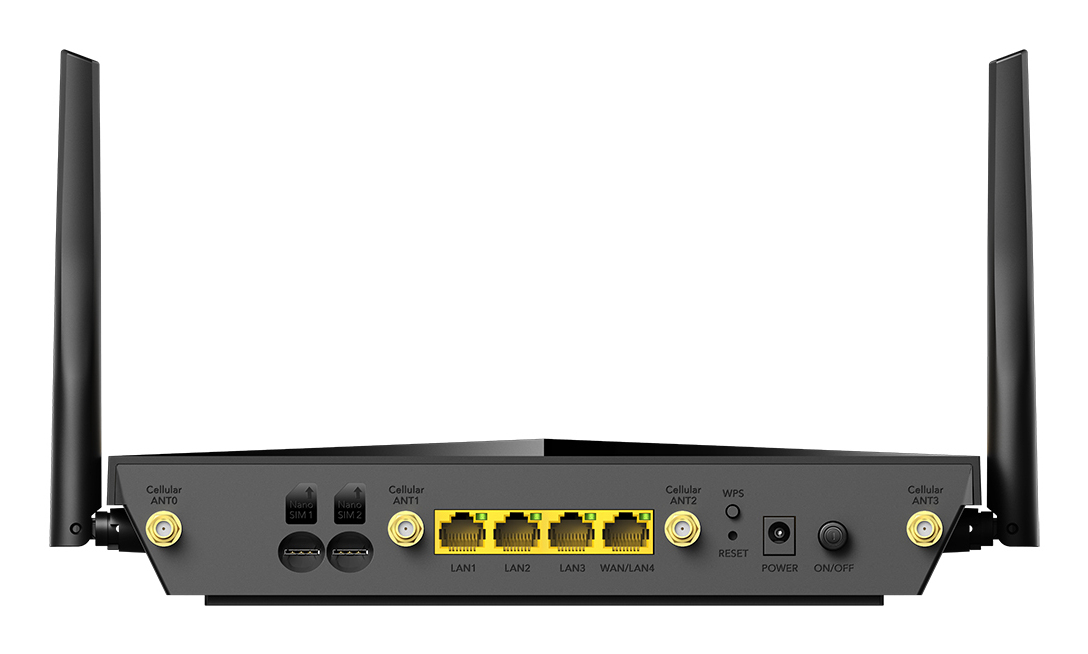

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MIMO | Yes |
| MU-MIMO technology | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| Firewall | Yes |
| Guest access | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| URL filtering | Yes |
| IGMP snooping | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| Universal Plug and Play (UPnP) | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
| Indication light | Yes |

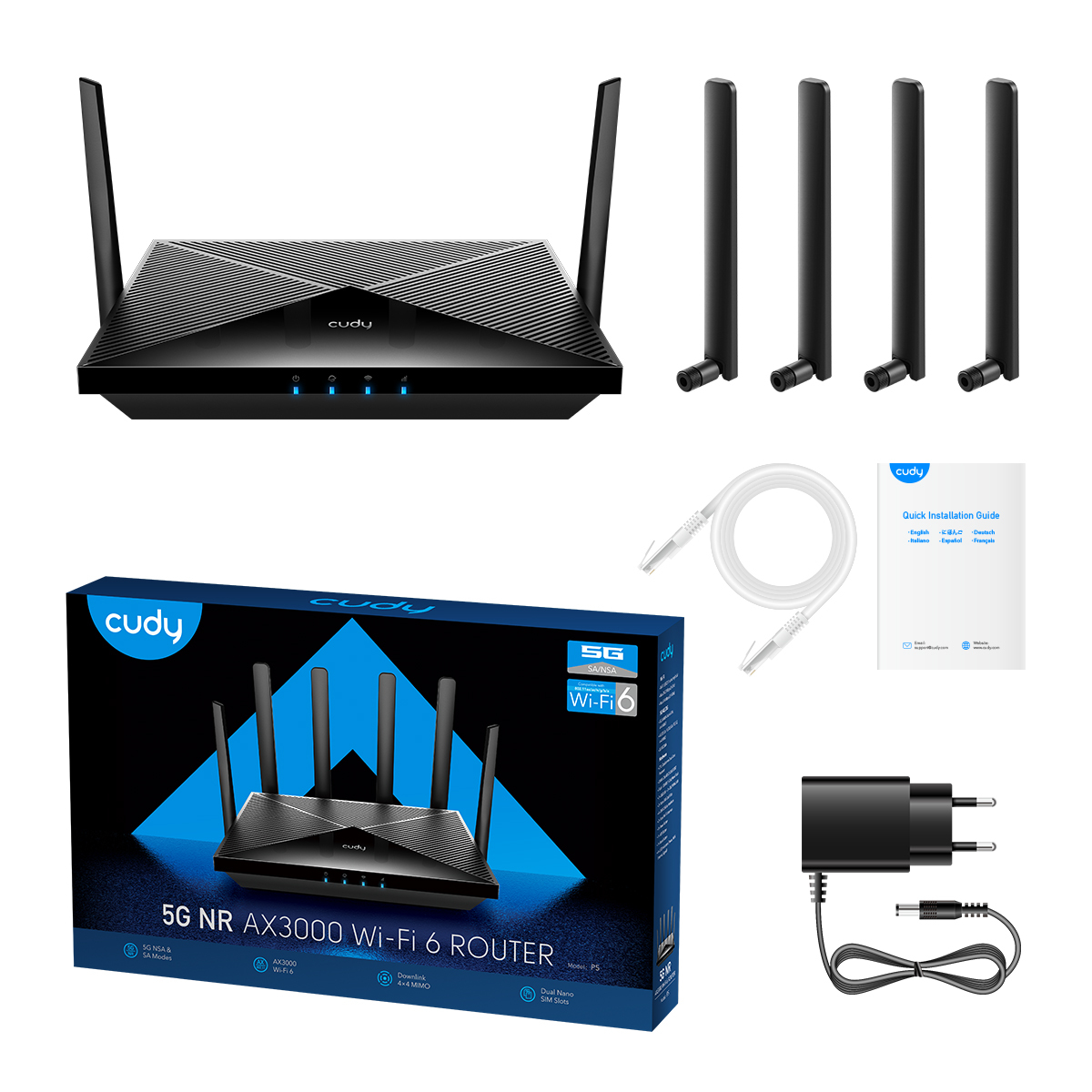

Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Antenna included | Yes |
| Quick installation guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 6 |
| Detachable antenna(s) | Yes |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Qualcomm |
| Processor frequency | 1000 MHz |
| Processor cores | 2 |
| Internal memory | 256 MB |
| Internal memory type | DDR3 |
| Flash memory | 128 MB |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Output voltage | 12 V |
| Output current | 2.5 A |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
System requirements
| Specification | Value |
|---|---|
| Browser supported | Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista |
| Linux operating systems supported | Yes |
| Mac operating systems supported | MacOS |
| Mac compatibility | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 253 mm |
| Height | 48.2 mm |
| Weight | 670 g |
| Width | 152.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 393 mm |
| Package depth | 250 mm |
| Package height | 60 mm |
| Package weight | 1.23 kg |
| Package type | Box |
