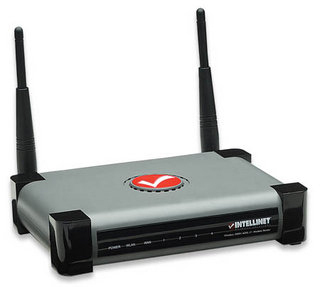

Intellinet 524780 wireless router Fast Ethernet Grey

Intellinet 524780 wireless router Fast Ethernet Grey

Model 524780EAN 766623524780

70 specifications

ProcessorRealtek RTL8192SU
Memory16 MB
SpeedWi-Fi 4 (802.11n)
ConnectivityFE
Weight800 g
ColourGrey

See all specifications

Overview

Processor: Realtek RTL8192SU
Memory: 16 MB
Speed: Wi-Fi 4 (802.11n)
Connectivity: FE
Weight: 800 g
Colour: Grey

Brand: Intellinet
Category: Wireless Router
Model: 524780
Part number: 524780
EAN / UPC: 766623524780
Also known as: Intellinet 524780 wireless router Fast Ethernet Grey

Specifications

70 specifications in 17 groups

WAN connection

Specification	Value
DSL WAN	Yes

Wireless LAN features

Specification	Value
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	14 channels

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Full duplex	Yes
Supports ISDN connection	No
VPN support	PPTP

DSL features

Specification	Value
ADSL	Yes
DSL specification	ITU G.992.5, ITU G.992.4, ITU G.992.3, ITU G.992.2, ITU G.992.1, ANSI T1.413

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
RJ-11 ports quantity	1
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes

Security

Specification	Value
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-AES
Filtering	Yes
MAC address filtering	Yes
URL filtering	Yes
System event log	Yes
DMZ support	Yes
Network address translation (NAT)	Yes
NAT functionality	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Management protocols	SNMP

Design

Specification	Value
Product colour	Grey
Indication light	Yes
LED indicators	LAN, Status, Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Manual	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	FCC Class B, CE Mark, RoHS

Antenna

Specification	Value
Antenna gain level (max)	3 dBi
Antennas quantity	2

Features

Specification	Value
Built-in processor	Yes
Processor model	Realtek RTL8192SU
Internal memory	16 MB
Flash memory	2 MB
Plug and Play	Yes
Firmware upgradeable	Yes

Power

Specification	Value
Power consumption (typical)	12 W
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	0 - 60 °C

Weight & dimensions

Specification	Value
Weight	800 g

Other features

Specification	Value
Cable length	1 m
Dimensions (WxDxH)	187 x 100 x 30 mm
Downstream data rate	24 Mbit/s
Frequency range	2.400 - 2.4835 GHz
Input frequency	50/60 Hz
Input voltage	100 - 240 V
Interface	FE
Memory and processor	Yes
Power requirements	12 V DC, 1 A
Power supply type	AC/DC
Rack mounting	No
Security features	VPN PPTP, L2TP, IPsec
Supported WAN type	ADSL
Upstream data rate	1 Mbit/s
WLAN data transfer rates supported	24 Mbit/s
xDSL connection	Yes
LAN features	Auto MDI/MDI-X
Logging and monitoring	Yes
