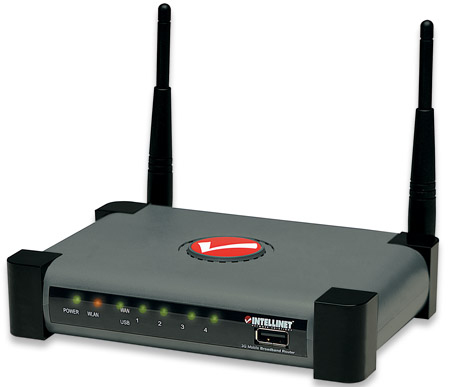

Intellinet 524681 wireless router Fast Ethernet Grey

Model 524681EAN 071030594951

70 specifications

ProcessorRalink RT3052
Memory16 MB
Speed300 Mbit/s
Weight215 g
ColourGrey
Ethernet WANYes

See all specifications

Overview

Processor: Ralink RT3052
Memory: 16 MB
Speed: 300 Mbit/s
Weight: 215 g
Colour: Grey
Ethernet WAN: Yes

Brand: Intellinet
Category: Wireless Router
Model: 524681
Part number: 524681
EAN / UPC: 071030594951, 766623524681, 7666235246816
Also known as: Intellinet 524681 wireless router Fast Ethernet Grey

Specifications

70 specifications in 17 groups

WAN connection

Specification	Value
Ethernet WAN	Yes

Wireless LAN features

Specification	Value
WLAN data transfer rate (max)	300 Mbit/s
Channels quantity	14 channels

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.3, IEEE 802.3u
Full duplex	Yes
Supports ISDN connection	No
VPN support	PPTP/IPSec
Receiver sensitivity	- 11n (300 Mbps) MCS0-15: 20 MHz: -73 dBm; 40 MHz: -68 dBm - 11g (54 Mbps) OFDM: -78 dBm - 11b (11 Mbps) CCK: -91 dBm

Mobile network

Specification	Value
3G	No
4G	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes

Security

Specification	Value
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2
Firewall	Yes
Filtering	Yes
MAC address filtering	Yes
URL filtering	Yes
System event log	Yes
DMZ support	Yes
NAT functionality	Yes

Protocols

Specification	Value
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes

Design

Specification	Value
Product colour	Grey
Indication light	Yes
LED indicators	LAN, Power, Status, Yes

Packaging content

Specification	Value
Cables included	USB
AC adapter included	Yes
Manual	Yes
Quick start guide	No

Certificates

Specification	Value
Certification	FCC Class B, CE

Antenna

Specification	Value
Antenna gain level (max)	3 dBi
Antennas quantity	2

Features

Specification	Value
Built-in processor	Yes
Processor model	Ralink RT3052
Internal memory	16 MB
Flash memory	4 MB
Plug and Play	Yes
Firmware upgradeable	Yes

Power

Specification	Value
Power consumption (typical)	5 W
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C

Weight & dimensions

Specification	Value
Weight	215 g

Other features

Specification	Value
Mobile network connection	No
Cable length	1 m
Dimensions (WxDxH)	157 x 127 x 30 mm
Filtering description	URL
Frequency range	2.400 - 2.4835 GHz
Indoor range	100 m
Input current	1 A
Input frequency	50/60 Hz
Input voltage	100 - 240 V
Outdoor range	300 m
Ports quantity	4
Power requirements	12 V DC
Rack mounting	No
Supported WAN type	3G / 3.5G
Supported data transfer rates	10/11/54/100/300 Mbit/s
Supported protocols	IEEE 802.1d IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.3 IEEE 802.3u
USB ports quantity	1
WLAN data transfer rates supported	300 Mbit/s
xDSL connection	No
LAN features	Auto MDI/MDI-X
Logging and monitoring	Yes
