Product comparison · 2 wireless routers

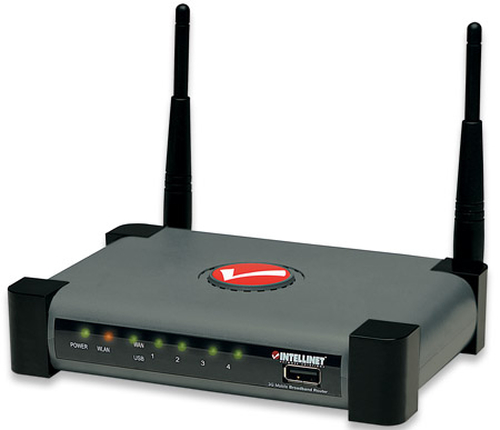

Intellinet 523967 wireless router Fast Ethernet Grey vs Intellinet 524681 wireless router Fast Ethernet Grey

60specifications compared
16differ
44identical
20known for one product only

Key differences

VPN support
- 523967 wireless router Fast Ethernet Grey:PPTP, IPSec, L2TP
- 524681 wireless router Fast Ethernet Grey:PPTP/IPSec
LED indicators
- 523967 wireless router Fast Ethernet Grey:Yes
- 524681 wireless router Fast Ethernet Grey:LAN, Power, Status, Yes
Cables included
- 523967 wireless router Fast Ethernet Grey:LAN (RJ-45)
- 524681 wireless router Fast Ethernet Grey:USB
Certification
- 523967 wireless router Fast Ethernet Grey:FCC - B, CE, RoHS
- 524681 wireless router Fast Ethernet Grey:FCC Class B, CE
Antennas quantity
- 523967 wireless router Fast Ethernet Grey:3
- 524681 wireless router Fast Ethernet Grey:2
Power consumption (typical)
- 523967 wireless router Fast Ethernet Grey:6.3 W
- 524681 wireless router Fast Ethernet Grey:5 W
Operating relative humidity (H-H)
- 523967 wireless router Fast Ethernet Grey:10 - 95%
- 524681 wireless router Fast Ethernet Grey:10 - 90%
Operating temperature (T-T)
- 523967 wireless router Fast Ethernet Grey:0 - 00 °C
- 524681 wireless router Fast Ethernet Grey:0 - 40 °C

Side by side

Differences highlightedShow differences only

Comparison of 523967, 524681
80 specifications	A Intellinet 523967 wireless router Fast Ethernet Grey Model 523967 View product	B Intellinet 524681 wireless router Fast Ethernet Grey Model 524681 View product
WAN connectionidentical
Ethernet WAN	Yes	Yes
Wireless LAN featuresidentical
WLAN data transfer rate (max)	300 Mbit/s	300 Mbit/s
Channels quantityKnown for one	Unknown — not stated by the source	14 channels
Network3 differ
Ethernet LAN	Yes	Yes
Ethernet LAN interface type	Fast Ethernet	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s	10,100 Mbit/s
Networking standardsDiffers	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.3, IEEE 802.3u
Full duplex	Yes	Yes
VPN supportDiffers	PPTP, IPSec, L2TP	PPTP/IPSec
Receiver sensitivityDiffers	11n (300 Mbps): 20 MHz: -71 dBm; 40MHz: -68 dBm 11g (54 Mbps): -74 dBm 11b (11 Mbps): -87 dBm	- 11n (300 Mbps) MCS0-15: 20 MHz: -73 dBm; 40 MHz: -68 dBm - 11g (54 Mbps) OFDM: -78 dBm - 11b (11 Mbps) CCK: -91 dBm
Supports ISDN connectionKnown for one	Unknown — not stated by the source	No
Ports & interfacesidentical
Ethernet LAN (RJ-45) ports	4	4
RJ-11 ports quantityKnown for one	0	Unknown — not stated by the source
DC-in jack	Yes	Yes
Management featuresidentical
Web-based management	Yes	Yes
Quality of Service (QoS) support	Yes	Yes
Security1 differ
Security algorithmsDiffers	128-bit WEP, 256-bit WEP, WPA, WPA2	128-bit WEP, 64-bit WEP, WPA, WPA2
DoS attack preventionKnown for one	Yes	Unknown — not stated by the source
Filtering	Yes	Yes
MAC address filtering	Yes	Yes
URL filtering	Yes	Yes
System event log	Yes	Yes
DMZ support	Yes	Yes
NAT functionality	Yes	Yes
FirewallKnown for one	Unknown — not stated by the source	Yes
Protocolsidentical
DHCP clientKnown for one	Yes	Unknown — not stated by the source
DHCP server	Yes	Yes
Universal Plug and Play (UPnP)	Yes	Yes
Supported network protocolsKnown for one	CSMA/CA, CSMA/CD, TCP/IP, UDP, ICMP, PPPoE, NTP, NAT, DHCP, DNS	Unknown — not stated by the source
Design1 differ
Product colour	Grey	Grey
Indication light	Yes	Yes
LED indicatorsDiffers	Yes	LAN, Power, Status, Yes
Packaging content1 differ
Cables includedDiffers	LAN (RJ-45)	USB
AC adapter included	Yes	Yes
Manual	Yes	Yes
Quick start guideKnown for one	Unknown — not stated by the source	No
Certificates1 differ
CertificationDiffers	FCC - B, CE, RoHS	FCC Class B, CE
Antenna1 differ
Antenna gain level (max)	3 dBi	3 dBi
Antennas quantityDiffers	3	2
Featuresidentical
Built-in processor	Yes	Yes
Processor model	Ralink RT3052	Ralink RT3052
Internal memory	16 MB	16 MB
Flash memory	4 MB	4 MB
Plug and Play	Yes	Yes
Firmware upgradeable	Yes	Yes
Power1 differ
Power consumption (typical)Differs	6.3 W	5 W
Power over Ethernet (PoE)	No	No
Operational conditions2 differ
Operating relative humidity (H-H)Differs	10 - 95%	10 - 90%
Operating temperature (T-T)Differs	0 - 00 °C	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C	-20 - 60 °C
Weight & dimensions1 differ
WeightDiffers	1 kg	215 g
Other features4 differ
Cable length	1 m	1 m
CompatibilityKnown for one	IEEE 802.1d IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.3 IEEE 802.3u	Unknown — not stated by the source
Dimensions (WxDxH)Differs	195 x 127 x 35 mm	157 x 127 x 30 mm
Filtering description	URL	URL
Frequency range	2.400 - 2.4835 GHz	2.400 - 2.4835 GHz
Indoor range	100 m	100 m
Input current	1 A	1 A
Input frequency	50/60 Hz	50/60 Hz
Input voltageDiffers	100 - 240 / 5 V	100 - 240 V
Operating temperature (T-T)Known for one	32 - 122 °F	Unknown — not stated by the source
Outdoor rangeDiffers	600 m	300 m
Ports quantity	4	4
Power supply typeKnown for one	DC	Unknown — not stated by the source
Rack mounting	No	No
Security featuresKnown for one	MAC, URL, DMZ, anti-DOS	Unknown — not stated by the source
Supported data transfer rates	10/11/54/100/300 Mbit/s	10/11/54/100/300 Mbit/s
ThroughputKnown for one	93 Mb/s	Unknown — not stated by the source
USB ports quantityDiffers	0	1
WLAN data transfer rates supported	300 Mbit/s	300 Mbit/s
xDSL connection	No	No
Dimensions (W x D x H) (imperial)Known for one	193 x 127 x 35.6 mm (7.6 x 5 x 1.4")	Unknown — not stated by the source
LAN features	Auto MDI/MDI-X	Auto MDI/MDI-X
Logging and monitoring	Yes	Yes
Mobile network connectionKnown for one	Unknown — not stated by the source	No
Power requirementsKnown for one	Unknown — not stated by the source	12 V DC
Supported WAN typeKnown for one	Unknown — not stated by the source	3G / 3.5G
Supported protocolsKnown for one	Unknown — not stated by the source	IEEE 802.1d IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.3 IEEE 802.3u
Mobile networkidentical
3GKnown for one	Unknown — not stated by the source	No
4GKnown for one	Unknown — not stated by the source	No

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
