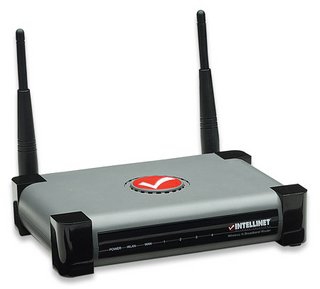

Intellinet 524490 wireless router Fast Ethernet Grey

Model 524490EAN 021113046273

70 specifications

Overview

70 specifications in 16 groups

Specification	Value
Ethernet WAN	Yes

Specification	Value
WLAN data transfer rate (max)	300 Mbit/s
Channels quantity	14 channels

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100BASE-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Full duplex	Yes
VPN support	PPTP, IPSec, L2TP
Receiver sensitivity	11n (300 Mbps) MCS0-15: - 20 MHz: -73 dBm; - 40MHz: -68 dBm 11g (54 Mbps) OFDM: -78 dBm 11b (11 Mbps) CCK: -91 dBm

Specification	Value
Ethernet LAN (RJ-45) ports	4
DC-in jack	Yes

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Supported network protocols	CSMA/CA, CSMA/CD, TCP/IP, UDP, ICMP, PPPoE, NTP, NAT, DHCP, DNS

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes

Specification	Value
Certification	FCC - B, CE, RoHS

Specification	Value
Antenna gain level (max)	3 dBi
Antennas quantity	2

Specification	Value
Power consumption (typical)	2.7 W
Power over Ethernet (PoE)	No

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C

Specification	Value
Weight	800 g

Specification	Value
Cable length	1 m
Compatibility	IEEE 802.1d IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.3 IEEE 802.3u
Compliance industry standards	IEEE 802.3/802.3u, IEEE 802.11b/g/n
Dimensions (WxDxH)	157 x 127 x 30 mm
Frequency range	2.400 - 2.4835 GHz
Indoor range	100 m
Input frequency	50 Hz
Input voltage	5 V
Networking features	Fast Ethernet
Operating temperature (T-T)	32 - 122 °F
Outdoor range	300 m
Ports quantity	4
Power requirements	5 V DC, 1.0 A
Power supply type	AC/DC
Rack mounting	No
Security features	MAC, URL, DMZ, anti-DOS
Supported protocols	CSMA/CA, CSMA/CD, TCP/IP, UDP, ICMP, PPPoE, NTP, NAT, DHCP, DNS
Throughput	93 Mb/s
USB ports quantity	0
WLAN data transfer rates supported	300 Mbit/s
xDSL connection	No
Dimensions (W x D x H) (imperial)	193 x 127 x 35.6 mm (7.6 x 5 x 1.4")
LAN features	Auto MDI/MDI-X
Logging and monitoring	Yes
