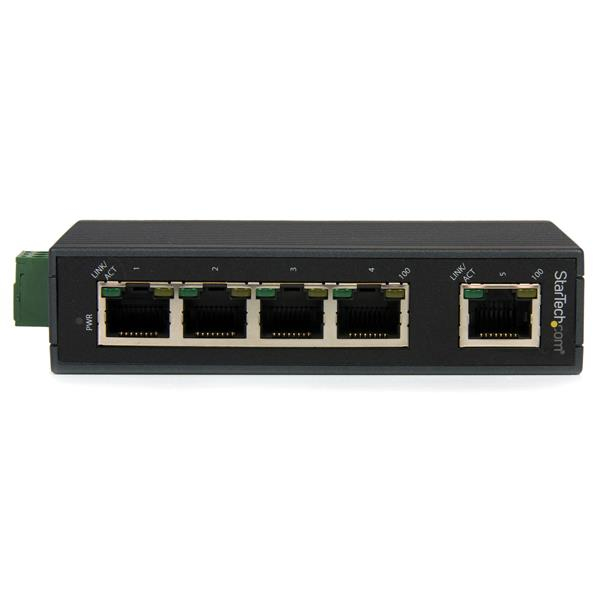

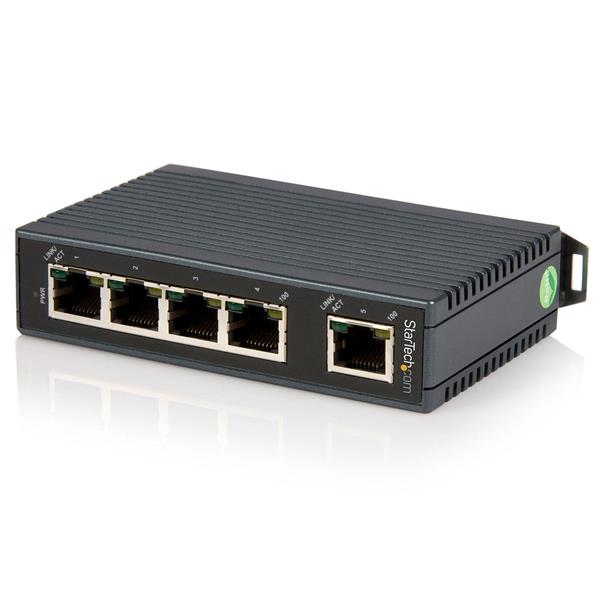

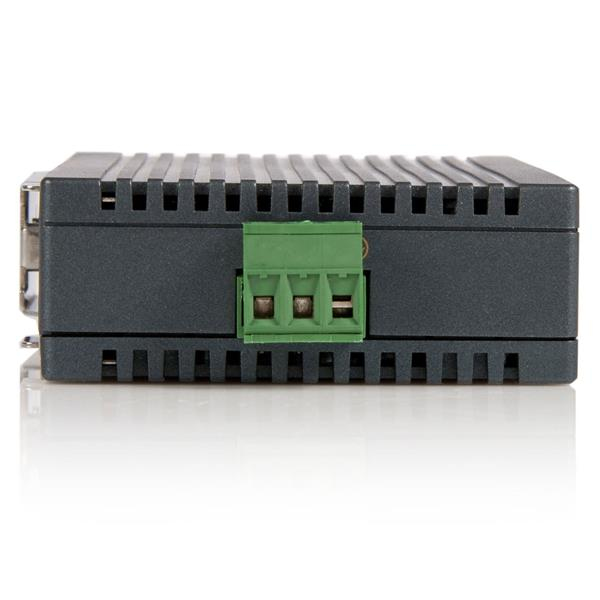

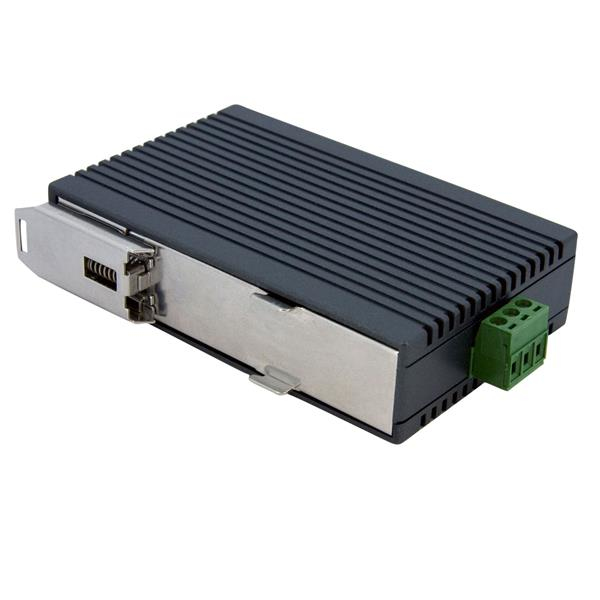

StarTech.com 5 Port Unmanaged Ethernet Switch
Model 5 Port Unmanaged Ethernet SwitchPart no. IES5100EAN 5052217012593
27 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight200 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 200 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Brand
- StarTech.com
- Category
- Network Switch
- Model
- 5 Port Unmanaged Ethernet Switch
- Part number
- IES5100
- EAN / UPC
- 5052217012593, 065030832632, 151903667927, 601000670721 +7 more
- Also known as
- StarTech.com 5 Port Unmanaged Industrial Ethernet Switch - DIN-Rail Mountable
Specifications
27 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
Network
| Specification | Value |
|---|---|
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2048 entries |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.1 Gbit/s |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input current | 0.2 A |
| Input voltage | 12 V |
| Power consumption (typical) | 2.4 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 26 x 70 x 110 mm |
| Connectivity technology | Wired |
| Networking features | 10BaseT/100BaseTX |
| Wi-Fi | No |
| Connectivity LEDs | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 200 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 79 mm |
| Package depth | 196 mm |
| Package height | 176 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | ROHS, UL, FCC, CE |
