Product comparison · 2 network switches

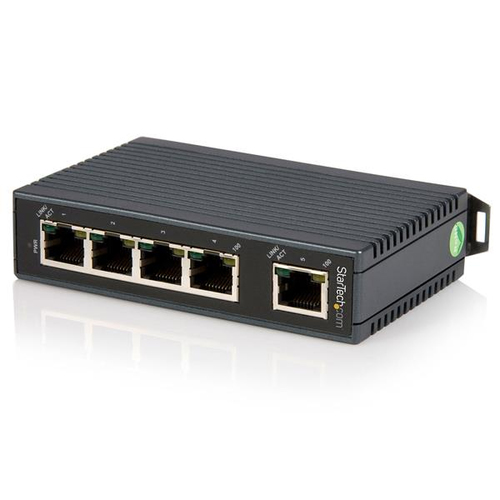

StarTech.com 5 Port Unmanaged Ethernet Switch vs StarTech.com 8 x 10/100

15specifications compared
12differ
3identical
25known for one product only

Key differences

Basic switching RJ-45 Ethernet ports quantity
- 5 Port Unmanaged Ethernet Switch:5
- 8 x 10/100:8
Input voltage
- 5 Port Unmanaged Ethernet Switch:12 V
- 8 x 10/100:110 - 240 V
Power consumption (typical)
- 5 Port Unmanaged Ethernet Switch:2.4 W
- 8 x 10/100:132 W
Power over Ethernet (PoE)
- 5 Port Unmanaged Ethernet Switch:No
- 8 x 10/100:Yes
Dimensions (WxDxH)
- 5 Port Unmanaged Ethernet Switch:26 x 70 x 110 mm
- 8 x 10/100:266 x 160 x 44 mm
Operating temperature (T-T)
- 5 Port Unmanaged Ethernet Switch:-10 - 60 °C
- 8 x 10/100:0 - 45 °C
Storage temperature (T-T)
- 5 Port Unmanaged Ethernet Switch:-25 - 85 °C
- 8 x 10/100:-10 - 70 °C
Weight
- 5 Port Unmanaged Ethernet Switch:200 g
- 8 x 10/100:1.4 kg

Side by side

Differences highlightedShow differences only

Comparison of 5 Port Unmanaged Ethernet Switch, 8 x 10/100
40 specifications	A StarTech.com 5 Port Unmanaged Ethernet Switch View product	B StarTech.com 8 x 10/100 View product
Ports & interfaces1 differ
Basic switching RJ-45 Ethernet ports quantityDiffers	5	8
Power connectorKnown for one	Unknown — not stated by the source	DC-in jack
Networkidentical
Networking standardsKnown for one	Unknown — not stated by the source	IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
10G supportKnown for one	Unknown — not stated by the source	No
Auto MDI/MDI-X	Yes	Yes
Ethernet LAN data ratesKnown for one	Unknown — not stated by the source	10,100 Mbit/s
Flow control supportKnown for one	Unknown — not stated by the source	Yes
Full duplexKnown for one	Yes	Unknown — not stated by the source
Optical fiberidentical
Fiber ethernet cabling technologyKnown for one	Unknown — not stated by the source	100BASE-FX
Data transmissionidentical
Supported data transfer ratesKnown for one	Unknown — not stated by the source	10/100 Mbps
MAC address tableKnown for one	2048 entries	Unknown — not stated by the source
Store-and-forwardKnown for one	Yes	Unknown — not stated by the source
Maximum data transfer rateKnown for one	0.1 Gbit/s	Unknown — not stated by the source
Designidentical
Rack mountingKnown for one	Unknown — not stated by the source	Yes
Product colour	Black	Black
LED indicatorsKnown for one	Unknown — not stated by the source	Link, Status
StackableKnown for one	No	Unknown — not stated by the source
Power2 differ
Input voltageDiffers	12 V	110 - 240 V
Power consumption (typical)Differs	2.4 W	132 W
Power sourceKnown for one	DC	Unknown — not stated by the source
Input currentKnown for one	0.2 A	Unknown — not stated by the source
Power over Ethernet (PoE)1 differ
Power over Ethernet (PoE)Differs	No	Yes
Other features1 differ
Dimensions (WxDxH)Differs	26 x 70 x 110 mm	266 x 160 x 44 mm
Connectivity technology	Wired	Wired
Ethernet LANKnown for one	Unknown — not stated by the source	Yes
Ethernet interface typeKnown for one	Unknown — not stated by the source	Fast Ethernet
MaterialKnown for one	Unknown — not stated by the source	Steel
Power LEDKnown for one	Unknown — not stated by the source	Yes
Networking featuresKnown for one	10BaseT/100BaseTX	Unknown — not stated by the source
Wi-FiKnown for one	No	Unknown — not stated by the source
Connectivity LEDsKnown for one	Yes	Unknown — not stated by the source
Operational conditions2 differ
Operating temperature (T-T)Differs	-10 - 60 °C	0 - 45 °C
Storage temperature (T-T)Differs	-25 - 85 °C	-10 - 70 °C
Operating relative humidity (H-H)Known for one	5 - 95%	Unknown — not stated by the source
Weight & dimensions1 differ
WeightDiffers	200 g	1.4 kg
Packaging data3 differ
Package widthDiffers	79 mm	240 mm
Package depthDiffers	196 mm	295 mm
Package heightDiffers	176 mm	65.4 mm
Certificates1 differ
CertificationDiffers	ROHS, UL, FCC, CE	RoHS, CE, FCC
Management featuresidentical
Switch typeKnown for one	Unmanaged	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
