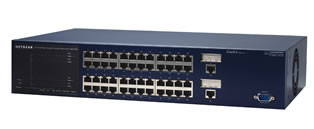

NETGEAR ProSafe™ 48 Port 10/100 L2 Managed Stackable Switch with 2 Gigabit ports
Model ProSafe™ 48 Port 10/100 L2 Managed Stackable Switch with 2 Gigabit portsPart no. FSM750SEU
20 specifications
- Speed1 Gbit/s
- Weight4.5 kg
- Basic switching RJ-45 Ethernet ports quantity50
- Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
- MAC address table8000 entries
- Mean time between failures (MTBF)54481 h
Overview
- Speed
- 1 Gbit/s
- Weight
- 4.5 kg
- Basic switching RJ-45 Ethernet ports quantity
- 50
- Copper ethernet cabling technology
- 1000BASE-T, 100BASE-TX, 10BASE-T
- MAC address table
- 8000 entries
- Mean time between failures (MTBF)
- 54481 h
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- ProSafe™ 48 Port 10/100 L2 Managed Stackable Switch with 2 Gigabit ports
- Part numbers
- FSM750SEU, FSM750SNA
- Also known as
- NETGEAR ProSafe™ 48 Port 10/100 L2 Managed Stackable Switch with 2 Gigabit ports
Specifications
20 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 50 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
Protocols
| Specification | Value |
|---|---|
| Data link protocols | Ethernet, Fast Ethernet, Gigibit Ethernet |
Design
| Specification | Value |
|---|---|
| Safety | CE mark, commercial; CSA certified (CSA 22.2 #950); TUV licensed (EN 60 950); UL listed (UL 1950)/cUL IEC950/EN60950 |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 54481 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 47 W |
Other features
| Specification | Value |
|---|---|
| Latency | 80 microseconds for 64-byte frames |
| Data transfer rate | 1000 Mbit/s |
| Dimensions (WxDxH) | 440 x 260 x 86 mm |
| Power requirements | 100 - 127/200 - 240 VAC, 50-60 Hz |
| Electromagnetic emissions | CE mark, commercial, FCC Part 15 Class A, VCCI Class A, EN 55022 (CISPR 22), Class A, C-Tick |
| I/O ports | • 48 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink on all ports) • Two RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink on all ports) • Gigabit Interface Converter (GBIC) slots for GBIC modules • RS-232 Console Port |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.5 kg |
