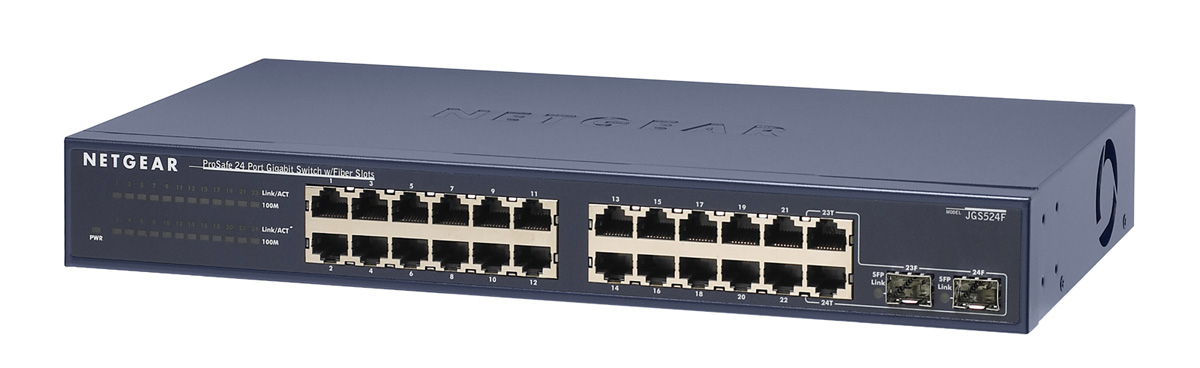

NETGEAR Prosafe JGS524F

NETGEAR Prosafe JGS524F

Model Prosafe JGS524FPart no. JGS524F-100EUSEAN 6064490522378

26 specifications
  • Speed1 Gbit/s
  • ConnectivityWired
  • Weight2.4 kg
  • Switch typeUnmanaged
  • Basic switching RJ-45 Ethernet ports quantity24
  • Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
See all specifications

Overview

Speed
1 Gbit/s
Connectivity
Wired
Weight
2.4 kg
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
24
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
Brand
NETGEAR
Model
Prosafe JGS524F
Part number
JGS524F-100EUS
EAN / UPC
6064490522378, 141291050296, 606449040760, 606449052237 +3 more
Also known as
NETGEAR Prosafe JGS524F Unmanaged

Specifications

26 specifications in 11 groups

Management features

Switch typeUnmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
SFP module slots quantity2
SFP/SFP+ slots quantity2

Network

Networking standardsIEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3X, IEEE 802.3z
Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Flow control supportYes

Data transmission

MAC address table8000 entries
Maximum data transfer rate1 Gbit/s
Packet buffer memory2 MB

Design

SafetyUL (UL 1950)/cUL, IEC950/EN60950

Performance

Mean time between failures (MTBF)87600 h

Power

Power consumption (typical)40 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Other features

Latency20 µs
Dimensions (WxDxH)330 x 107 x 43 mm
Connectivity technologyWired
Bandwidth48 Gbit/s
Networking featuresGigabit Ethernet
Power requirements100 - 240 V, 50 - 60 Hz
Electromagnetic emissionsCE mark, FCC Part 15 Class A, VCCI Class A, EN 55022 (CISPR 22), Class A, EN 50082-1, EN 55024, C-Tick

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)10 - 95%

Weight & dimensions

Weight2.4 kg
