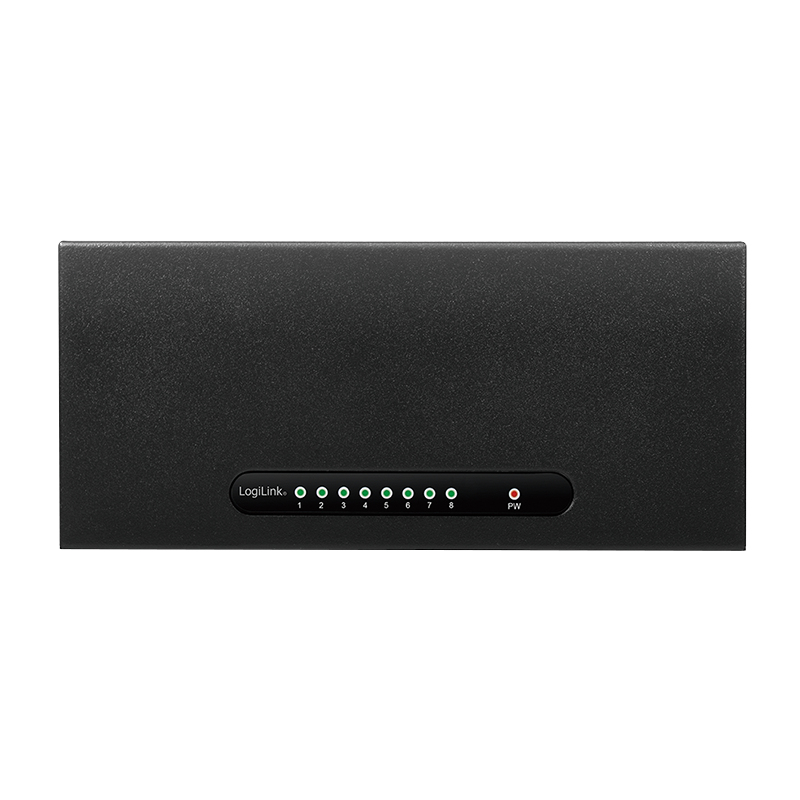

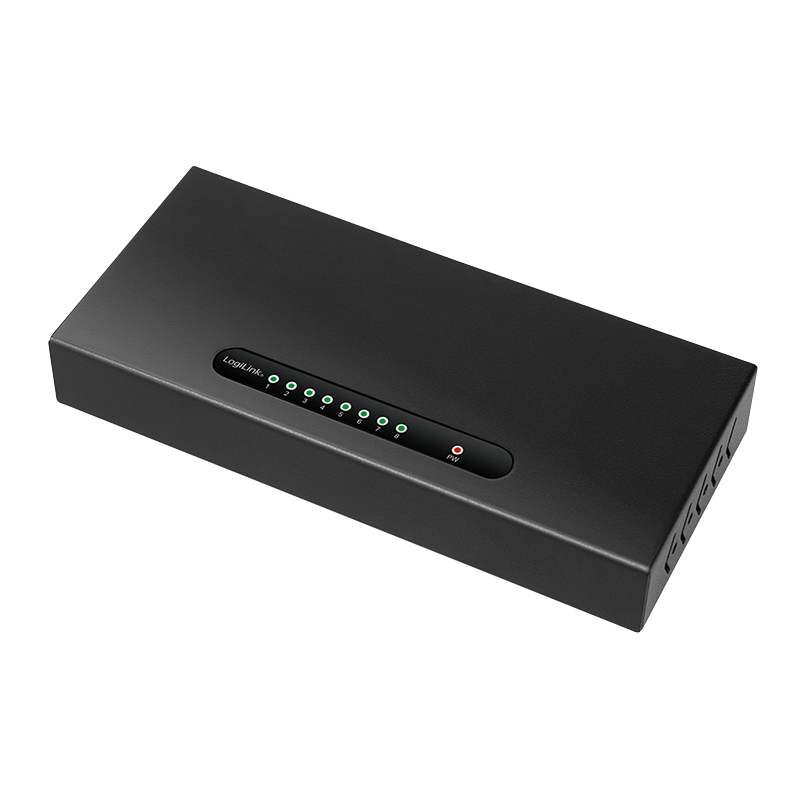

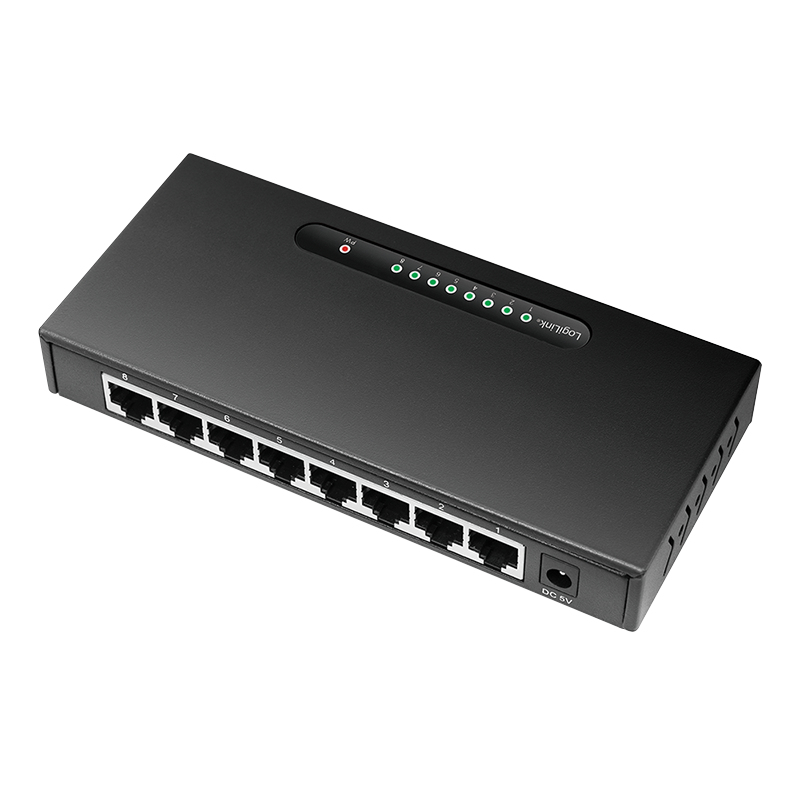

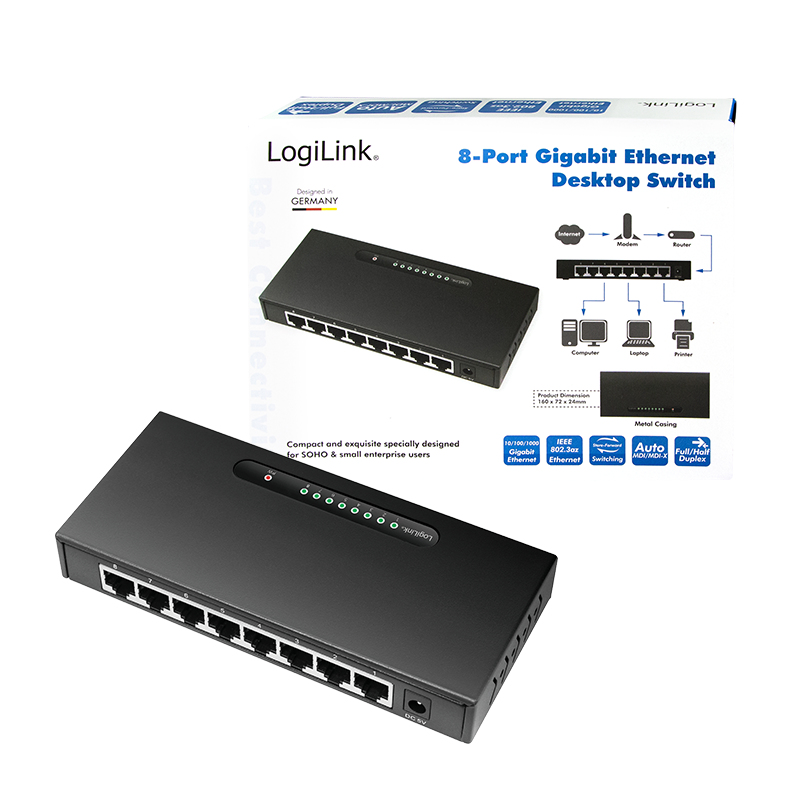

NS0111 network switch Gigabit Ethernet (10/100/1000) Black
Model NS0111EAN 4052792054828
31 specifications
- Weight280 g
- ColourBlack
- Quality of Service (QoS) supportYes
- Basic switching RJ-45 Ethernet ports quantity8
- MAC address table8000 entries
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 280 g
- Colour
- Black
- Quality of Service (QoS) support
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 8
- MAC address table
- 8000 entries
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- LogiLink
- Category
- Network Switch
- Model
- NS0111
- Part number
- NS0111
- EAN / UPC
- 4052792054828
- Also known as
- LogiLink NS0111 network switch Gigabit Ethernet (10/100/1000) Black
Specifications
31 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 1.488 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
| Wall mountable | Yes |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| DC input voltage | 5 V |
| Power consumption (max) | 4.5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 72 mm |
| Depth | 160 mm |
| Height | 24 mm |
| Weight | 280 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 180 mm |
| Package depth | 140 mm |
| Package height | 35 mm |
| Package weight | 400 g |
