Product comparison · 2 network switches

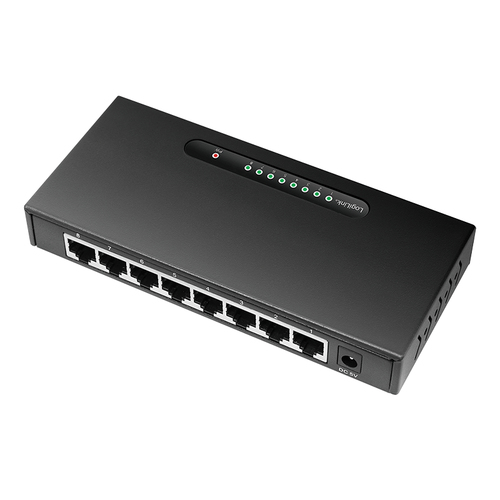

LogiLink NS0110 network switch Gigabit Ethernet (10/100/1000) Black vs LogiLink NS0111 network switch Gigabit Ethernet (10/100/1000) Black

31specifications compared
5differ
26identical
1known for one product only

Key differences

Basic switching RJ-45 Ethernet ports quantity
- NS0110 network switch Gigabit Ethernet (10/100/1000) Black:5
- NS0111 network switch Gigabit Ethernet (10/100/1000) Black:8
MAC address table
- NS0110 network switch Gigabit Ethernet (10/100/1000) Black:2000 entries
- NS0111 network switch Gigabit Ethernet (10/100/1000) Black:8000 entries
Depth
- NS0110 network switch Gigabit Ethernet (10/100/1000) Black:124 mm
- NS0111 network switch Gigabit Ethernet (10/100/1000) Black:160 mm
Weight
- NS0110 network switch Gigabit Ethernet (10/100/1000) Black:172 g
- NS0111 network switch Gigabit Ethernet (10/100/1000) Black:280 g
Package weight
- NS0110 network switch Gigabit Ethernet (10/100/1000) Black:320 g
- NS0111 network switch Gigabit Ethernet (10/100/1000) Black:400 g

Side by side

Differences highlightedShow differences only

Comparison of NS0110, NS0111
32 specifications	A LogiLink NS0110 network switch Gigabit Ethernet (10/100/1000) Black Model NS0110 View product	B LogiLink NS0111 network switch Gigabit Ethernet (10/100/1000) Black Model NS0111 View product
Management featuresidentical
Quality of Service (QoS) support	Yes	Yes
Ports & interfaces1 differ
Basic switching RJ-45 Ethernet ports quantityDiffers	5	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)	Gigabit Ethernet (10/100/1000)
Networkidentical
Networking standards	IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x	IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Port mirroring	Yes	Yes
Broadcast storm control	Yes	Yes
Data transmission1 differ
MAC address tableDiffers	2000 entries	8000 entries
Switching capacity	10 Gbit/s	10 Gbit/s
Forwarding rate	1.488 Mpps	1.488 Mpps
Jumbo frames support	Yes	Yes
Jumbo frames	9000	9000
Securityidentical
Access Control List (ACL)	Yes	Yes
Designidentical
Product colour	Black	Black
Housing material	Metal	Metal
LED indicators	Activity, Link, Power	Activity, Link, Power
Wall mountable	Yes	Yes
Poweridentical
Power supply included	Yes	Yes
DC input voltage	5 V	5 V
Power consumption (max)	4.5 W	4.5 W
Operational conditionsidentical
Operating temperature (T-T)	0 - 50 °C	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%	10 - 90%
Storage relative humidity (H-H)	5 - 90%	5 - 90%
Weight & dimensions2 differ
Width	72 mm	72 mm
DepthDiffers	124 mm	160 mm
Height	24 mm	24 mm
WeightDiffers	172 g	280 g
Packaging contentidentical
ManualKnown for one	Yes	Unknown — not stated by the source
Packaging data1 differ
Package width	180 mm	180 mm
Package depth	140 mm	140 mm
Package height	35 mm	35 mm
Package weightDiffers	320 g	400 g

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
