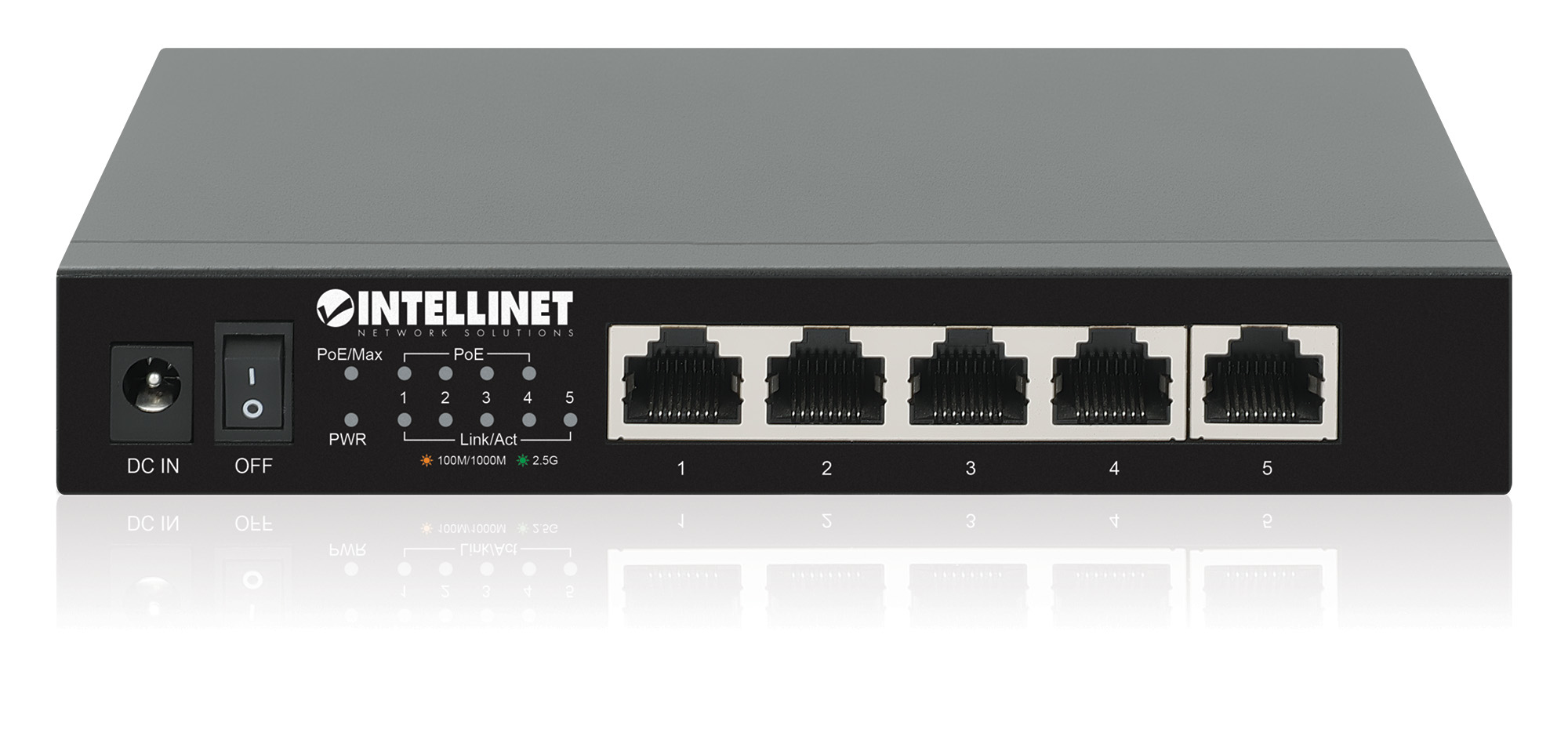

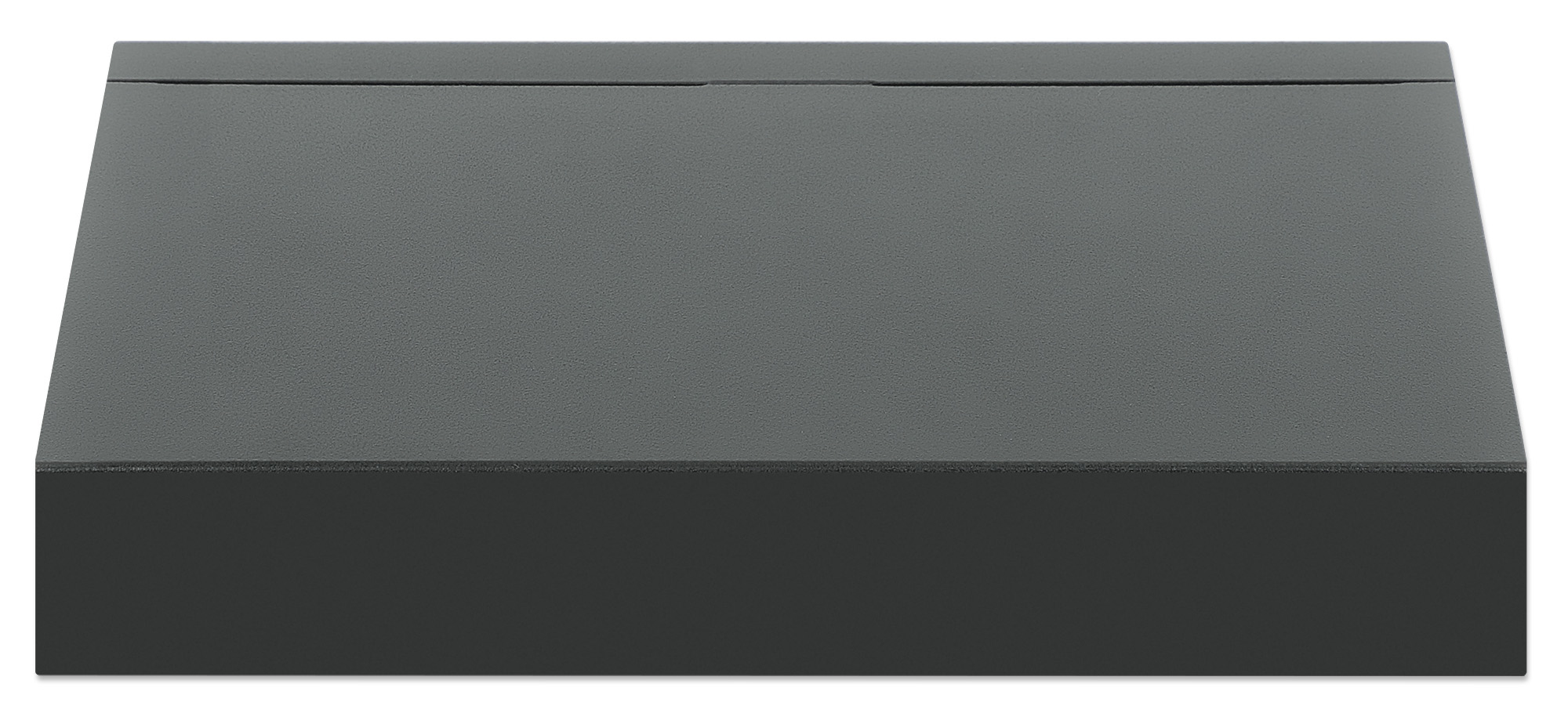

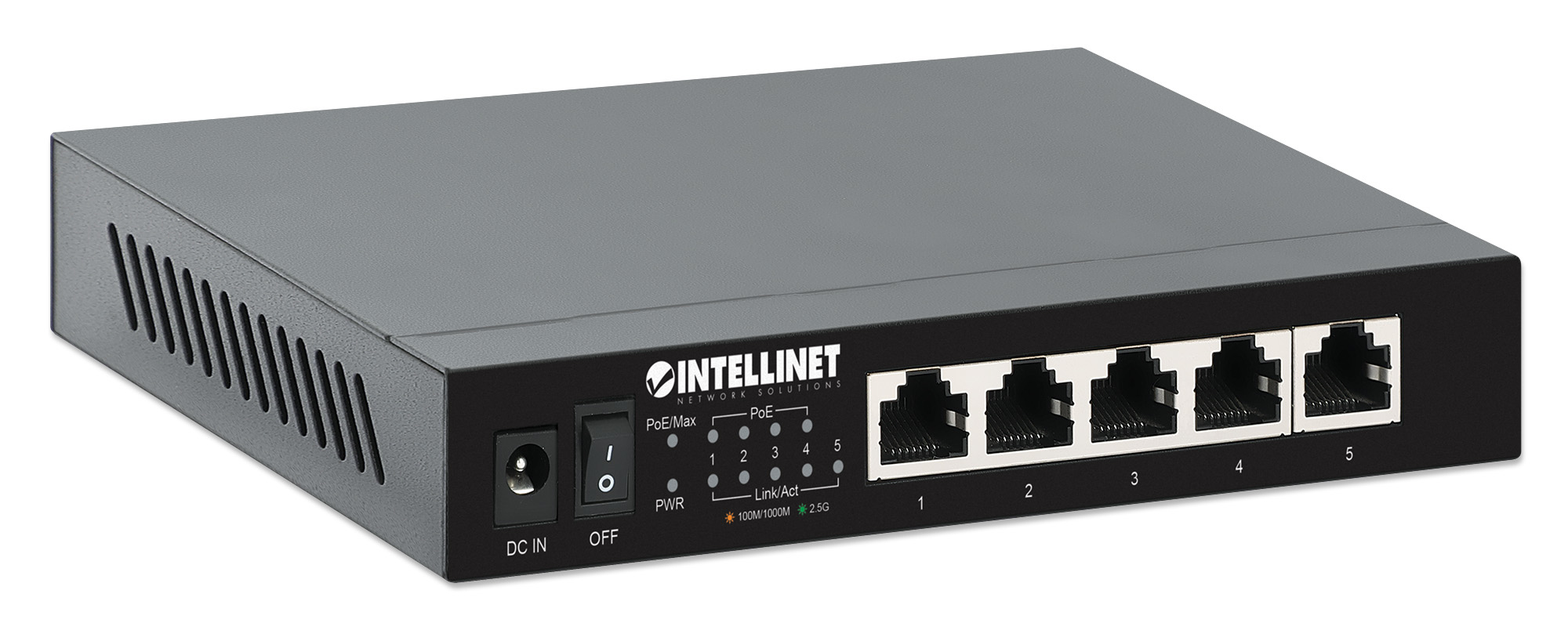

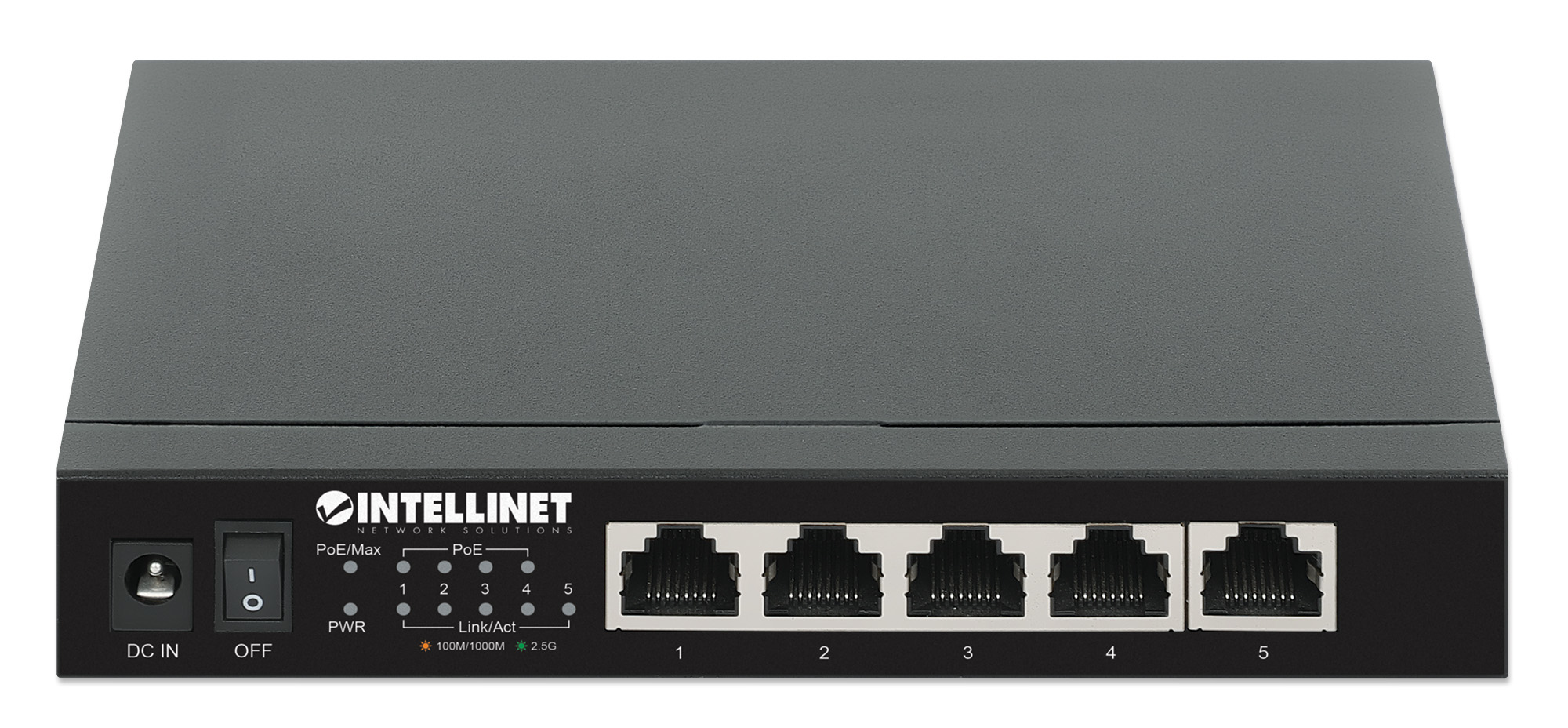

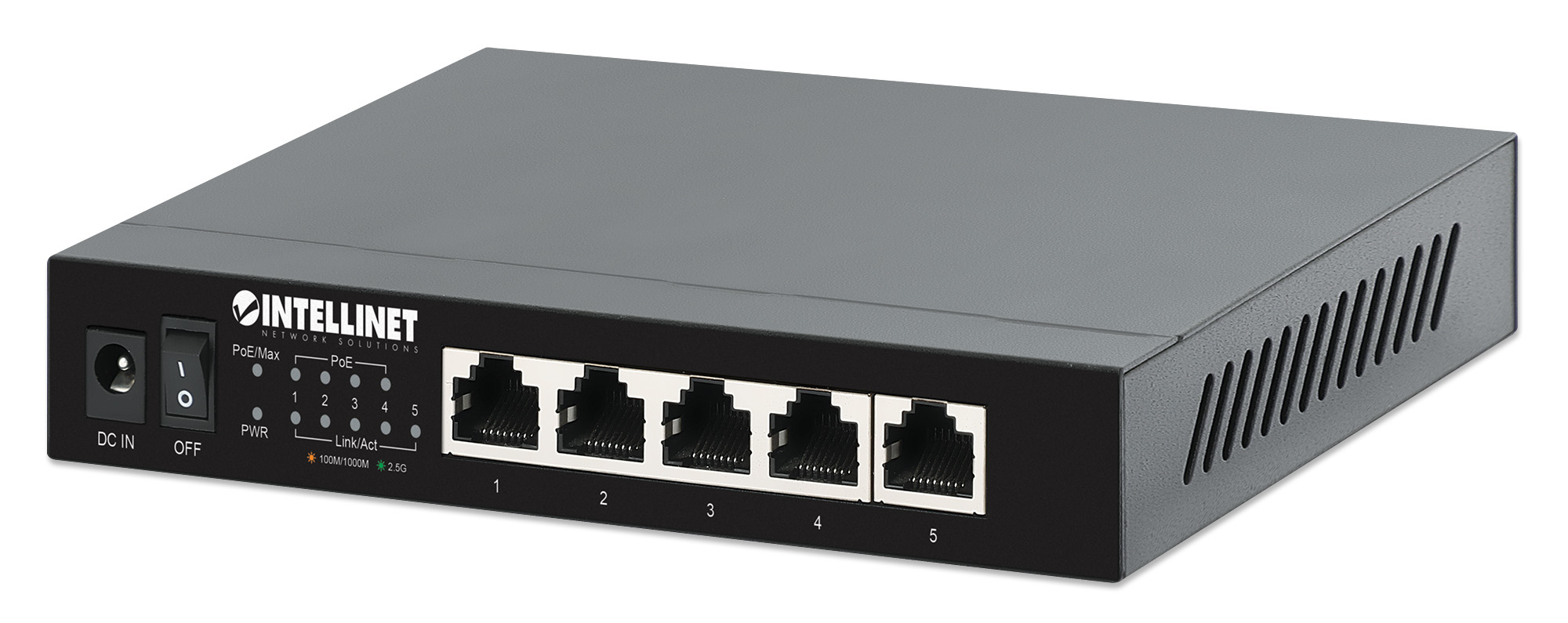

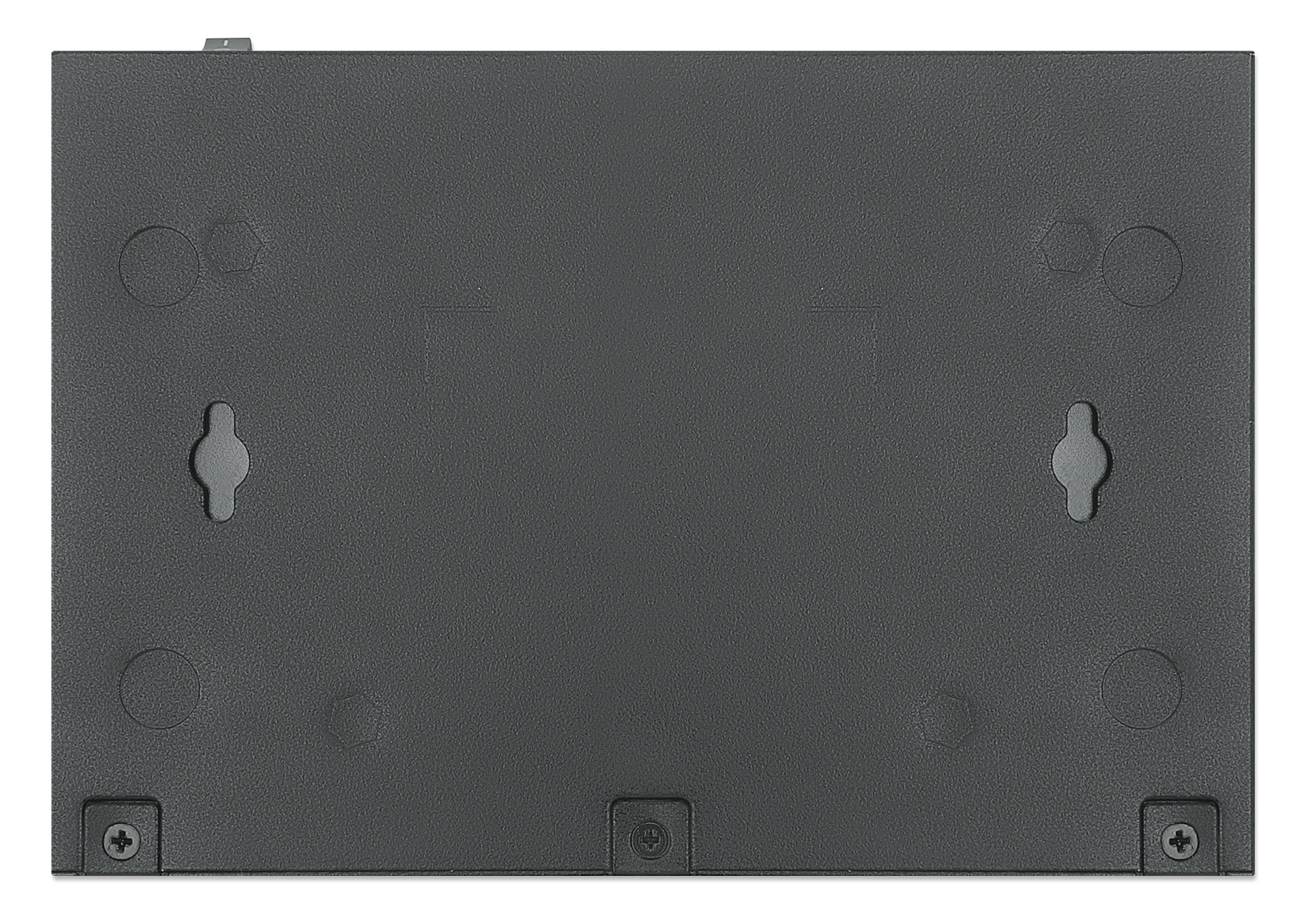

5-Port 2.5G Ethernet PoE+ Switch Four PSE PoE+ Ports, 10/100/1000/2500 Mbps on all Ports, 55 W PoE Power Budget, Unmanaged, Desktop Format, Wall-moun
Model 561921-UKEAN 766623996365
62 specifications
- Weight500 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table16000 entries
Overview
- Weight
- 500 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 16000 entries
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 561921-UK
- Part number
- 561921-UK
- EAN / UPC
- 766623996365
- Also known as
- Intellinet 5-Port 2.5G Ethernet PoE+ Switch Four PSE PoE+ Ports, 10/100/1000/2500 Mbps on all Ports, 55 W PoE Power Budget, Unmanaged, Desktop Format, Wall-moun
Specifications
62 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 5 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 2500BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6a |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Auto-sensing | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 25 Gbit/s |
| Forwarding rate | 18.6 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 12 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
| Wall mountable | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC/DC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 2 A |
| Power consumption (max) | 58 W |
| Power protection features | Over voltage, Overload, Short circuit |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 55 W |
Other features
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 110 mm |
| Height | 26 mm |
| Weight | 500 g |
Packaging content
| Specification | Value |
|---|---|

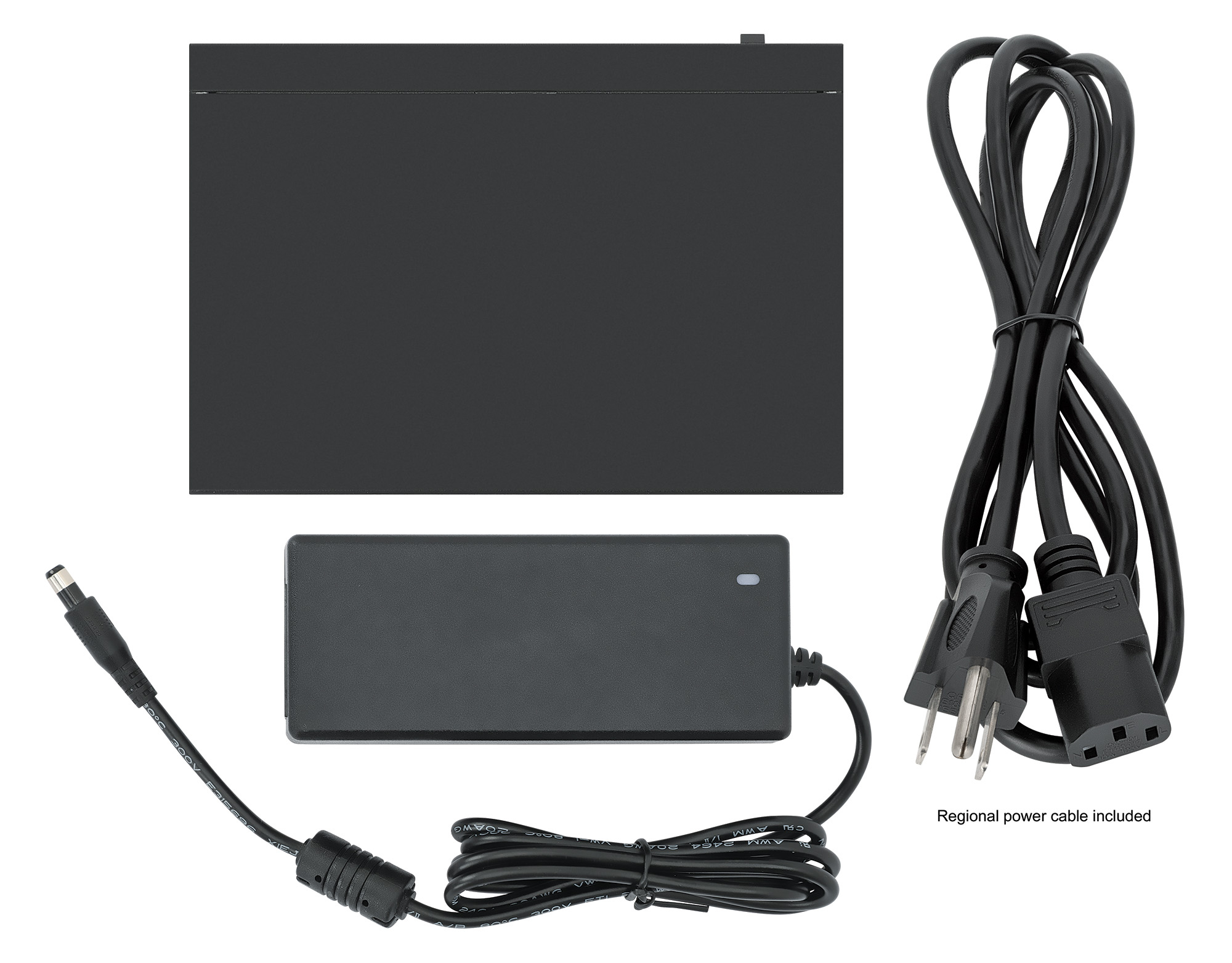

| Cables included | AC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 132 mm |
| Package depth | 210 mm |
| Package height | 78 mm |
| Package weight | 1.1 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE, RoHS, UKCA, NDAA |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 283 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case height | 238 mm |
| Master (outer) case gross weight | 11.3 kg |
| Products per master (outer) case | 10 pc(s) |
