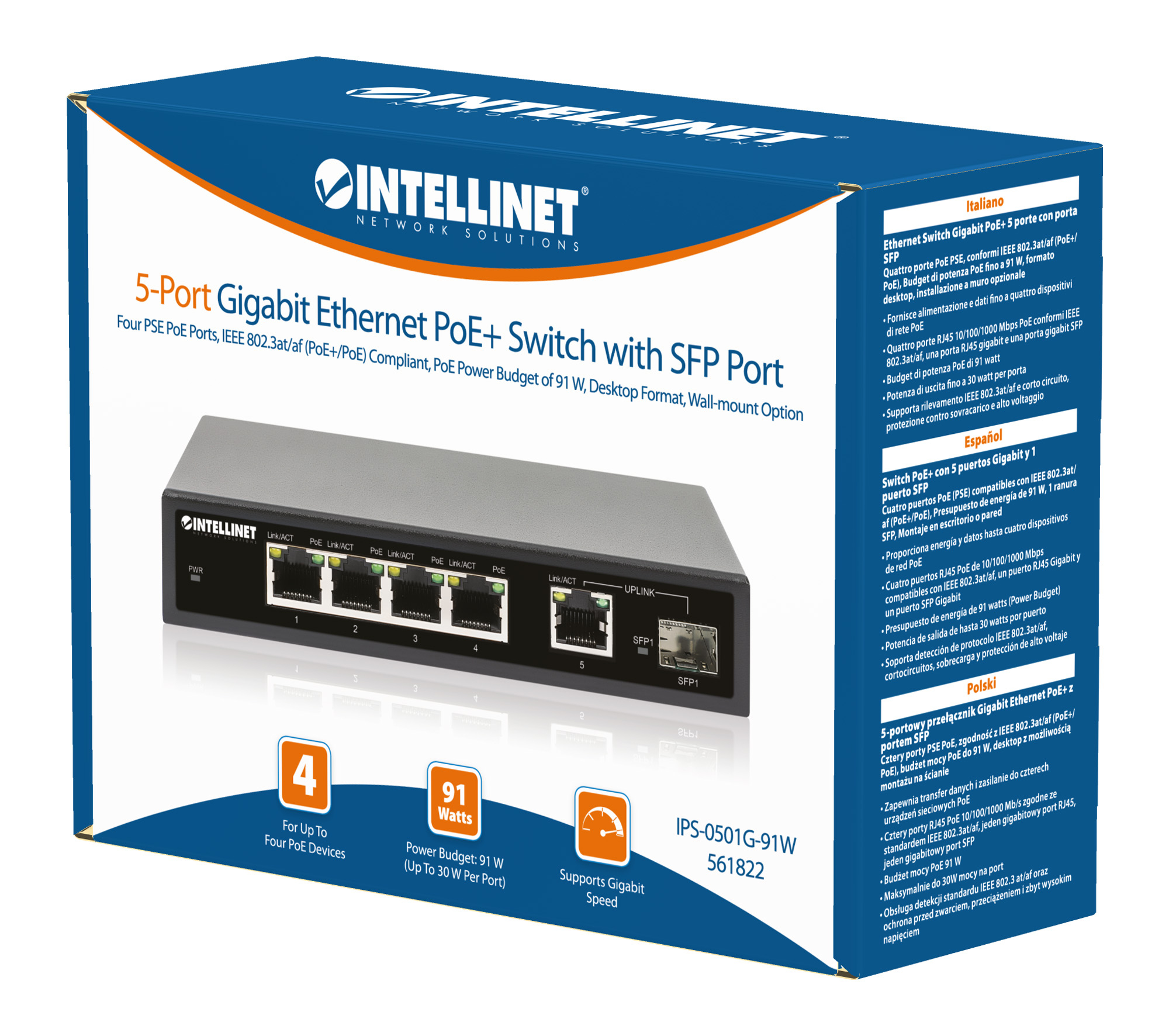

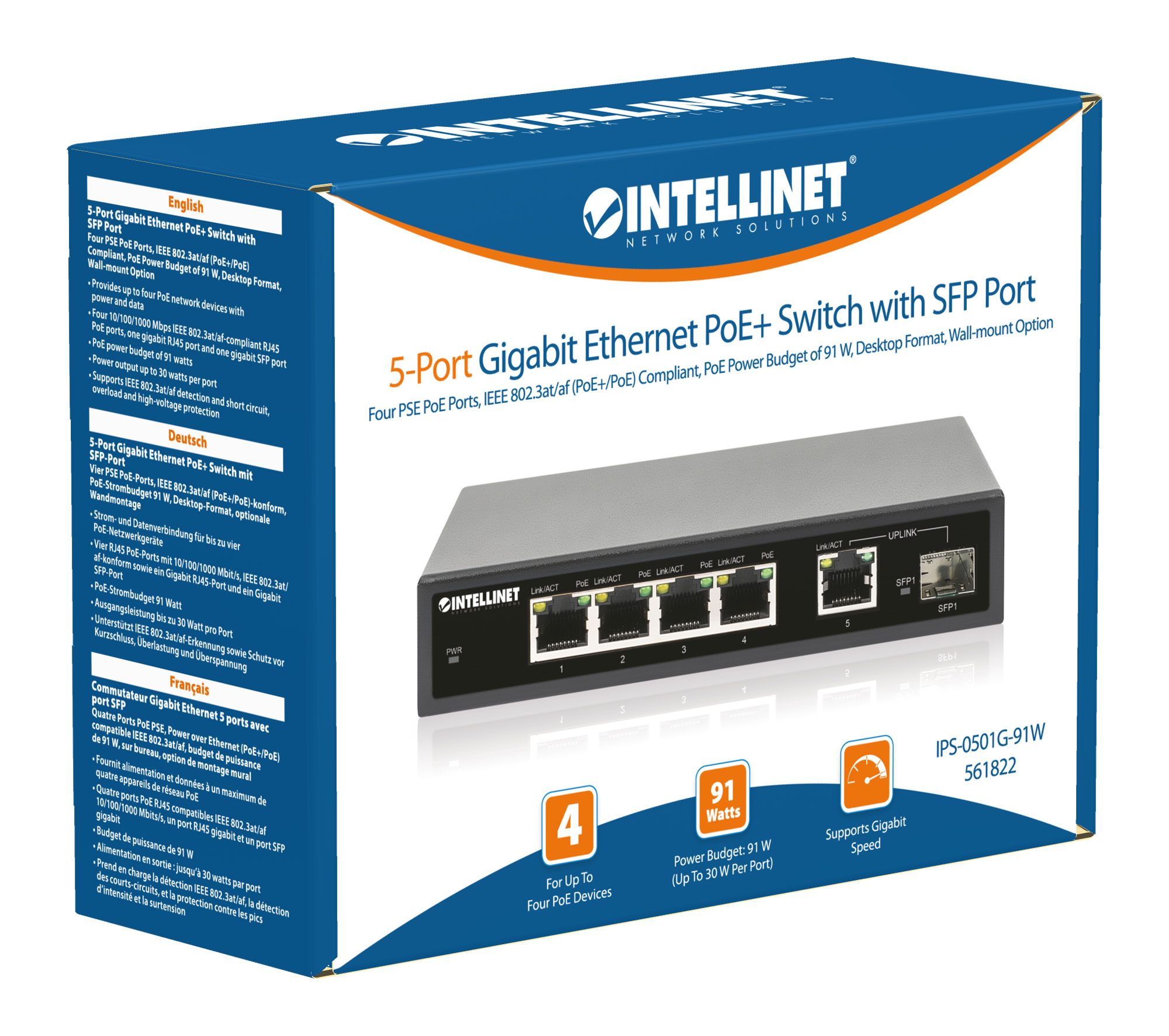

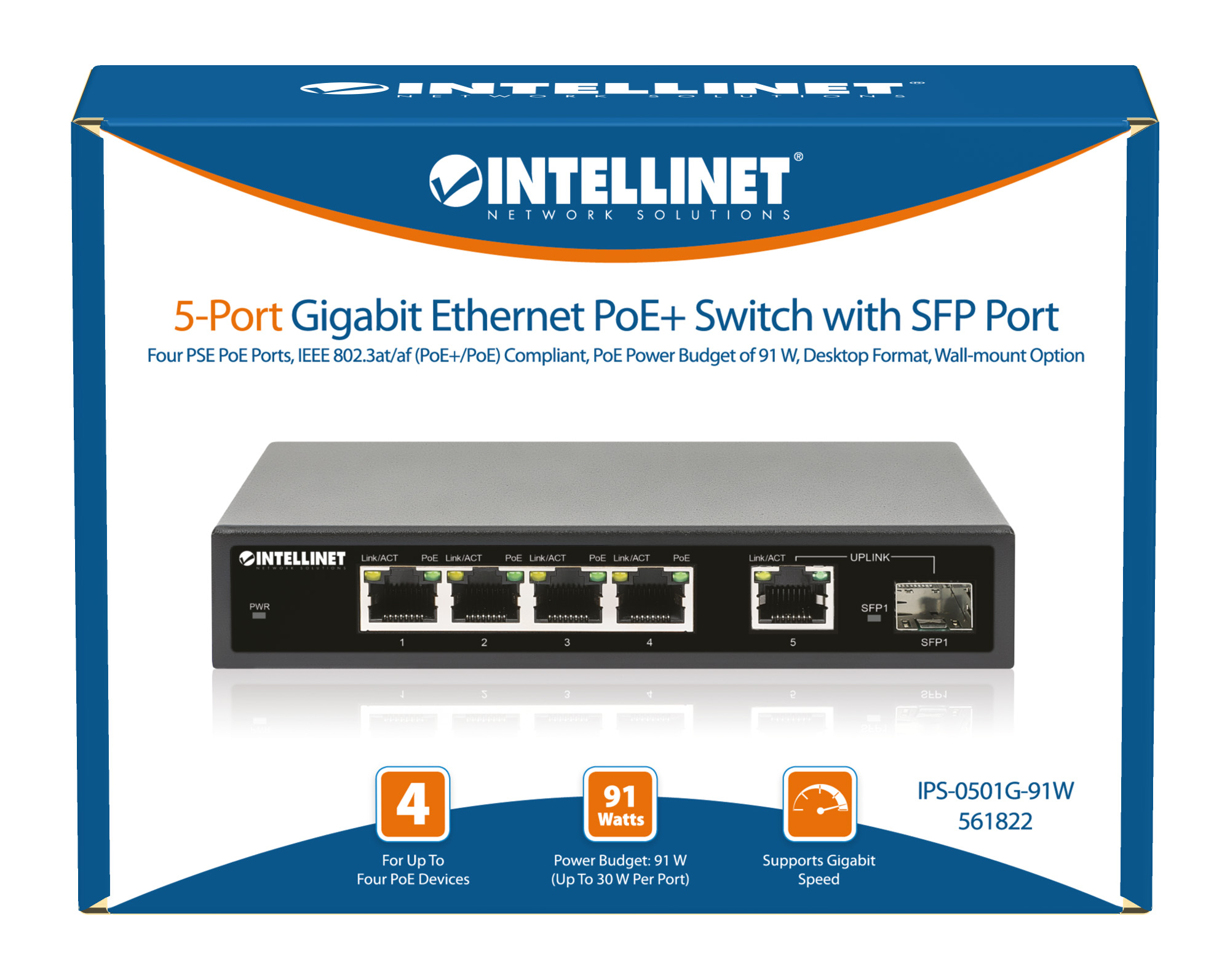

5-Port Gigabit Ethernet PoE+ Switch with SFP Port, Four PSE PoE Ports, IEEE 802.3at/af (PoE+/PoE) Compliant, PoE Power Budget of
91 W, Desktop Format
Model 561822-UKEAN 766623996310
50 specifications
- Weight800 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table2000 entries
- FanlessYes
Overview
- Weight
- 800 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 2000 entries
- Fanless
- Yes
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 561822-UK
- Part number
- 561822-UK
- EAN / UPC
- 766623996310
- Also known as
- Intellinet 5-Port Gigabit Ethernet PoE+ Switch with SFP Port, Four PSE PoE Ports, IEEE 802.3at/af (PoE+/PoE) Compliant, PoE Power Budget of 91 W, Desktop Format
Specifications
50 specifications in 14 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5e |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 12 Gbit/s |
| Forwarding rate | 8928 Mpps |
| Store-and-forward | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 96 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 91 W |
Other features
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 153 mm |
| Depth | 86 mm |
| Height | 29 mm |
| Weight | 800 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 140 mm |
| Package depth | 190 mm |
| Package height | 70 mm |
| Package weight | 925 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE, RoHS, UKCA, NDAA |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 405 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 380 mm |
| Master (outer) case gross weight | 20.5 kg |
| Products per master (outer) case | 20 pc(s) |
