Product comparison · 2 network switches

Intellinet 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power vs Intellinet 5-Port Gigabit Ethernet PoE+ Switch with SFP Port, Four PSE PoE Ports, IEEE 802.3at/af (PoE+/PoE) Compliant, PoE Power Budget of

40specifications compared
14differ
26identical
19known for one product only

Key differences

Basic switching RJ-45 Ethernet ports quantity
- 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power:6
- 5-Port Gigabit Ethernet PoE+ Switch with SFP Port, Four PSE PoE Ports, IEEE 802.3at/af (PoE+/PoE) Compliant, PoE Power Budget of:5
MAC address table
- 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power:1000 entries
- 5-Port Gigabit Ethernet PoE+ Switch with SFP Port, Four PSE PoE Ports, IEEE 802.3at/af (PoE+/PoE) Compliant, PoE Power Budget of:2000 entries
Switching capacity
- 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power:1.2 Gbit/s
- 5-Port Gigabit Ethernet PoE+ Switch with SFP Port, Four PSE PoE Ports, IEEE 802.3at/af (PoE+/PoE) Compliant, PoE Power Budget of:12 Gbit/s
Power source
- 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power:AC/PoE
- 5-Port Gigabit Ethernet PoE+ Switch with SFP Port, Four PSE PoE Ports, IEEE 802.3at/af (PoE+/PoE) Compliant, PoE Power Budget of:AC
Total Power over Ethernet (PoE) budget
- 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power:65 W
- 5-Port Gigabit Ethernet PoE+ Switch with SFP Port, Four PSE PoE Ports, IEEE 802.3at/af (PoE+/PoE) Compliant, PoE Power Budget of:91 W
Operating relative humidity (H-H)
- 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power:5 - 95%
- 5-Port Gigabit Ethernet PoE+ Switch with SFP Port, Four PSE PoE Ports, IEEE 802.3at/af (PoE+/PoE) Compliant, PoE Power Budget of:20 - 85%
Depth
- 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power:87 mm
- 5-Port Gigabit Ethernet PoE+ Switch with SFP Port, Four PSE PoE Ports, IEEE 802.3at/af (PoE+/PoE) Compliant, PoE Power Budget of:86 mm
Weight
- 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power:410 g
- 5-Port Gigabit Ethernet PoE+ Switch with SFP Port, Four PSE PoE Ports, IEEE 802.3at/af (PoE+/PoE) Compliant, PoE Power Budget of:800 g

Side by side

Differences highlightedShow differences only

Comparison of 561686-UK, 561822-UK

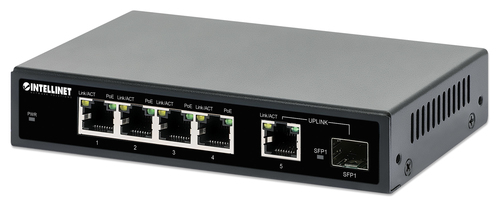

59 specifications	A Intellinet 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power Model 561686-UK View product	B Intellinet 5-Port Gigabit Ethernet PoE+ Switch with SFP Port, Four PSE PoE Ports, IEEE 802.3at/af (PoE+/PoE) Compliant, PoE Power Budget of Model 561822-UK View product
Ports & interfaces2 differ
Basic switching RJ-45 Ethernet ports quantityDiffers	6	5
Basic switching RJ-45 Ethernet ports typeDiffers	Fast Ethernet (10/100)	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0	0
Installed SFP+ modules quantity	0	0
SFP module slots quantityKnown for one	Unknown — not stated by the source	1
Network1 differ
Networking standardsDiffers	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G supportKnown for one	Unknown — not stated by the source	No
Copper ethernet cabling technologyKnown for one	Unknown — not stated by the source	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat5e	Cat5e
Auto MDI/MDI-XKnown for one	Unknown — not stated by the source	Yes
Auto-sensing	Yes	Yes
Flow control support	Yes	Yes
Full duplexKnown for one	Yes	Unknown — not stated by the source
Half duplexKnown for one	Yes	Unknown — not stated by the source
MAC address auto-aging supportedKnown for one	Yes	Unknown — not stated by the source
MAC address auto-learning supportedKnown for one	Yes	Unknown — not stated by the source
Data transmission2 differ
MAC address tableDiffers	1000 entries	2000 entries
Switching capacityDiffers	1.2 Gbit/s	12 Gbit/s
Forwarding rateKnown for one	Unknown — not stated by the source	8928 Mpps
Store-and-forward	Yes	Yes
Packet forwarding rate (10 Mbps)Known for one	14880 pps	Unknown — not stated by the source
Packet forwarding rate (100 Mbps)Known for one	148800 pps	Unknown — not stated by the source
Designidentical
Rack mounting	No	No
Product colour	Black	Black
Housing material	Metal	Metal
LED indicators	Activity, Link, PoE, Power	Activity, Link, PoE, Power
Wall mountableKnown for one	Unknown — not stated by the source	Yes
Performanceidentical
FanlessKnown for one	Unknown — not stated by the source	Yes
Power1 differ
Power sourceDiffers	AC/PoE	AC
Power supply included	Yes	Yes
AC input voltage	100 - 240 V	100 - 240 V
AC input frequency	50/60 Hz	50/60 Hz
Power consumption (max)Known for one	Unknown — not stated by the source	96 W
DC input voltageKnown for one	44 - 57 V	Unknown — not stated by the source
Power protection featuresKnown for one	Over voltage, Overload, Short circuit	Unknown — not stated by the source
Power over Ethernet (PoE)1 differ
Power over Ethernet (PoE)	Yes	Yes
Total Power over Ethernet (PoE) budgetDiffers	65 W	91 W
Other featuresidentical
Warranty period	3 year(s)	3 year(s)
Operational conditions1 differ
Operating temperature (T-T)	0 - 40 °C	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C	-10 - 70 °C
Operating relative humidity (H-H)Differs	5 - 95%	20 - 85%
Storage relative humidity (H-H)Known for one	Unknown — not stated by the source	5 - 90%
Weight & dimensions2 differ
Width	153 mm	153 mm
DepthDiffers	87 mm	86 mm
Height	29 mm	29 mm
WeightDiffers	410 g	800 g
Packaging contentidentical
Cables includedKnown for one	Unknown — not stated by the source	AC
Manual	Yes	Yes
Packaging data1 differ
Package width	140 mm	140 mm
Package depth	190 mm	190 mm
Package height	70 mm	70 mm
Package weightDiffers	830 g	925 g
Package typeKnown for one	Box	Unknown — not stated by the source
Certificates1 differ
CertificationDiffers	FCC Class B, CE, RoHS, UKCA, NDAA	FCC Class A, CE, RoHS, UKCA, NDAA
Logistics data2 differ
Master (outer) case widthDiffers	305 mm	405 mm
Master (outer) case length	400 mm	400 mm
Master (outer) case height	380 mm	380 mm
Master (outer) case gross weightDiffers	18.9 kg	20.5 kg
Products per master (outer) case	20 pc(s)	20 pc(s)

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
