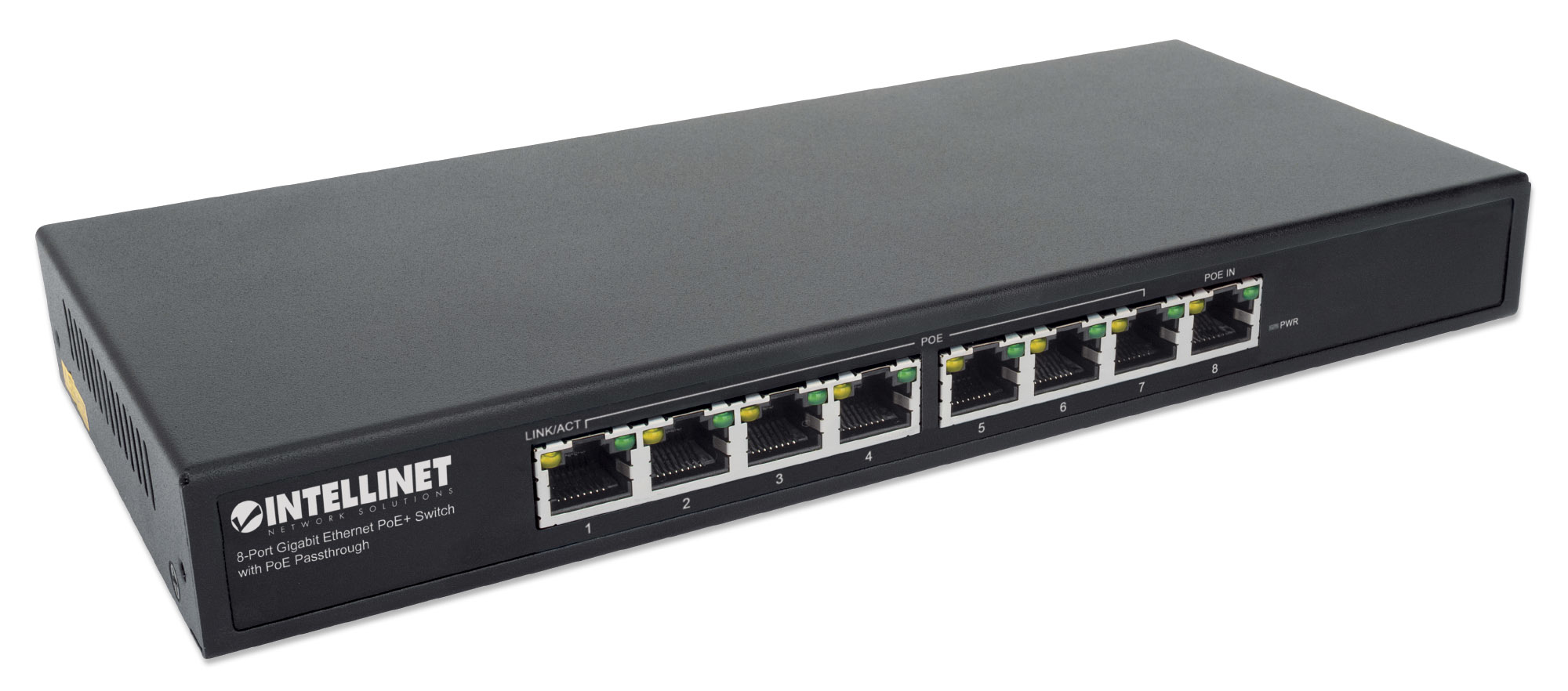

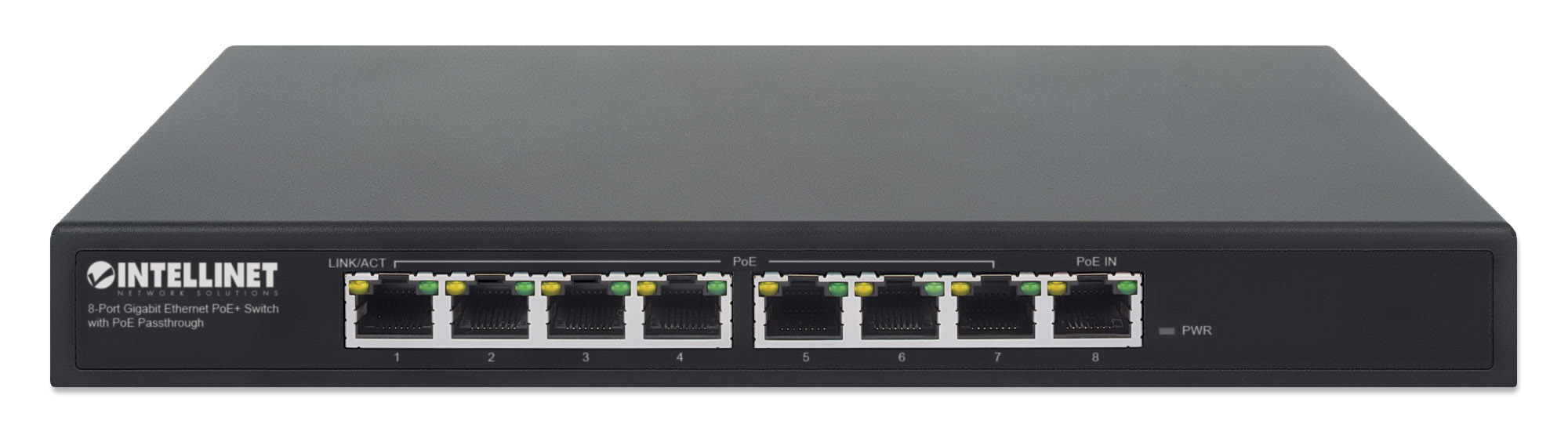

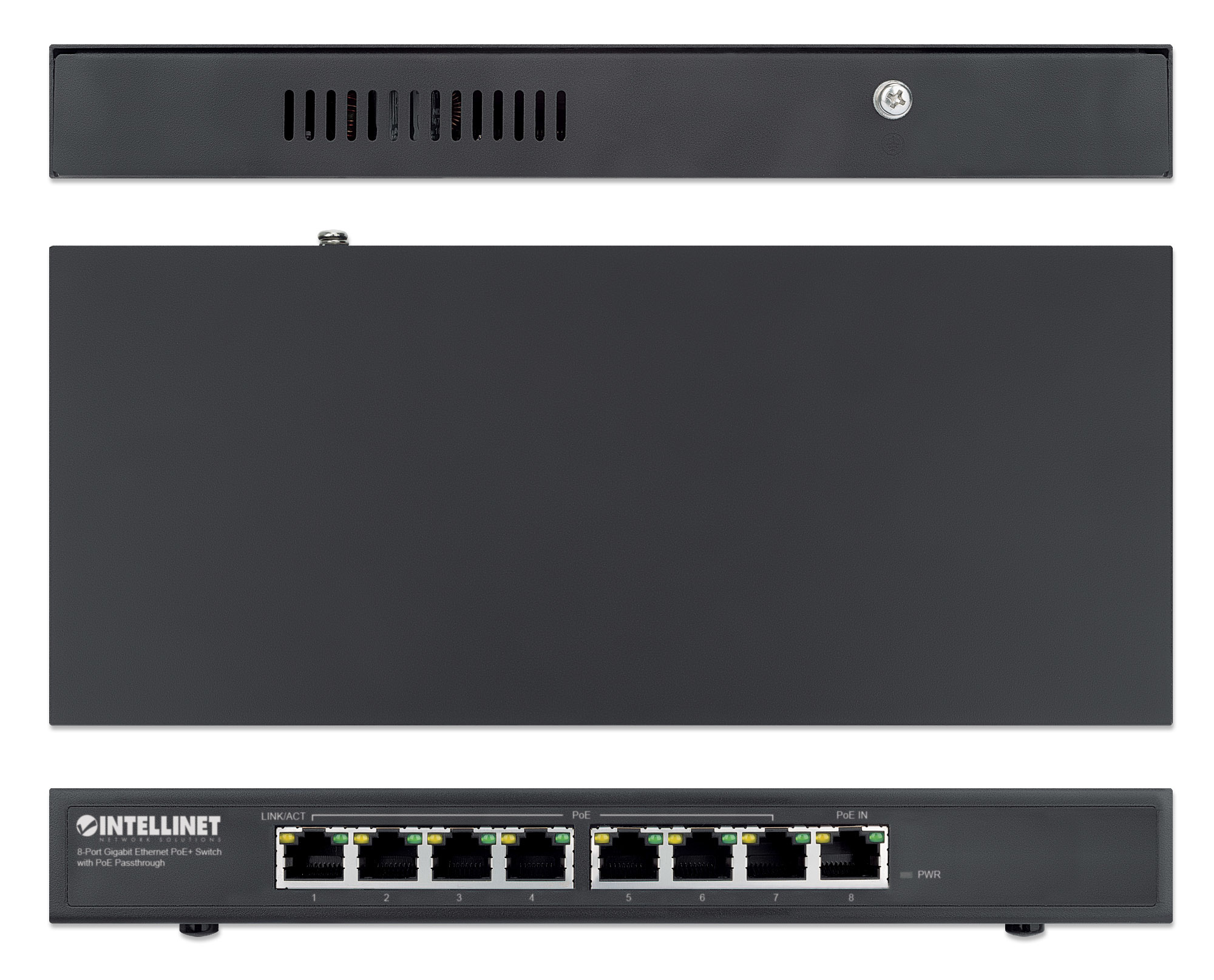

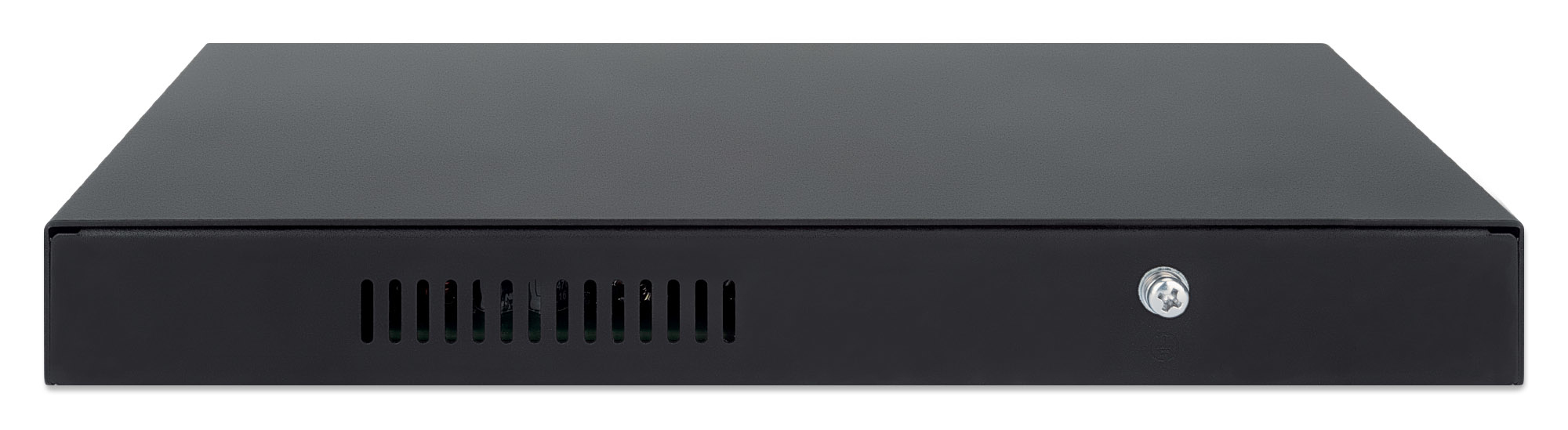

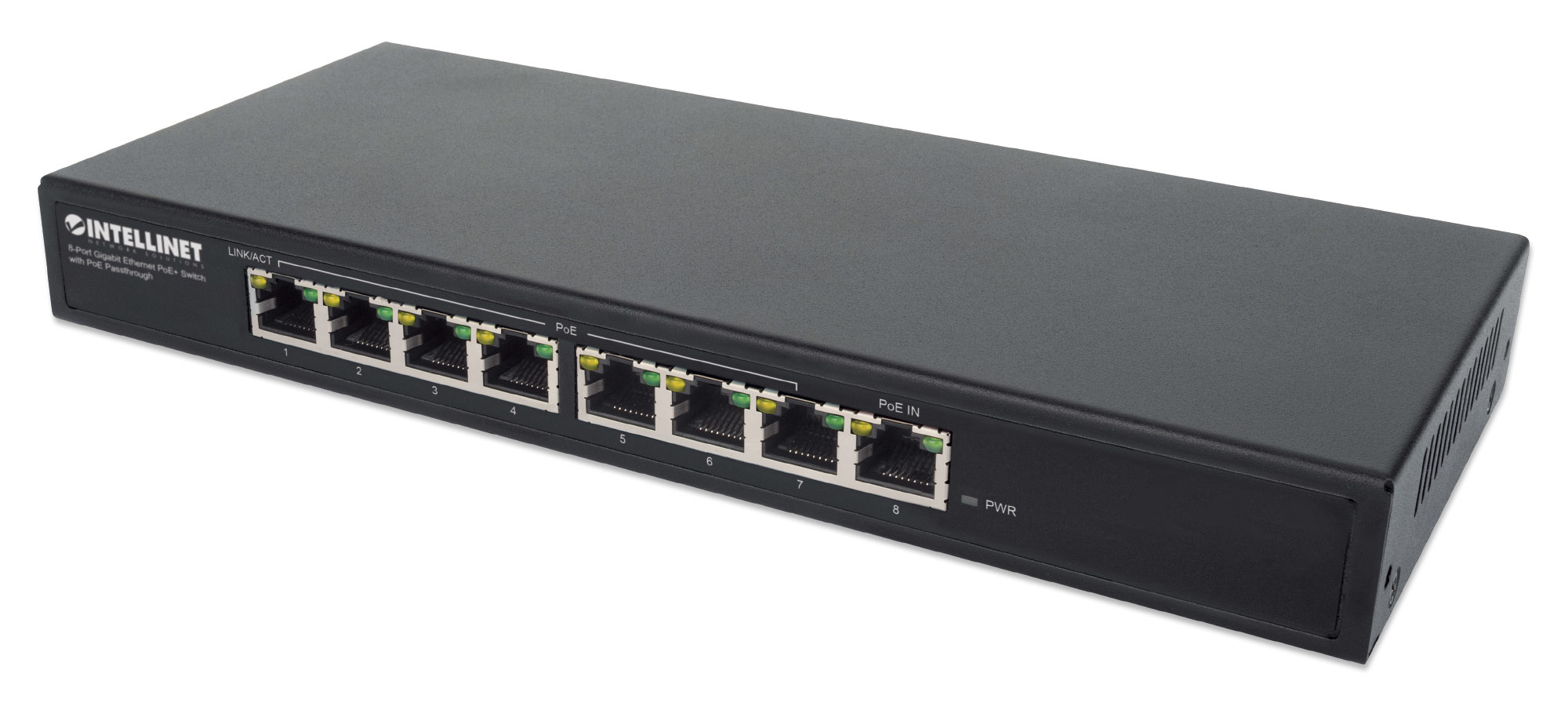

8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough, 1x Ultra PoE++ IEEE 802.3bt (4PPoE) PD PoE Port with
90 W Power Input, 7x PSE PoE Ports, Po
Model 561679-UKEAN 766623996280
47 specifications
- Weight660 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity8
- Cable types supportedCat5e
- MAC address table2000 entries
- Power sourcePoE
Overview
- Weight
- 660 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Cable types supported
- Cat5e
- MAC address table
- 2000 entries
- Power source
- PoE
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 561679-UK
- Part number
- 561679-UK
- EAN / UPC
- 766623996280
- Also known as
- Intellinet 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough, 1x Ultra PoE++ IEEE 802.3bt (4PPoE) PD PoE Port with 90 W Power Input, 7x PSE PoE Ports, Po
Specifications
47 specifications in 13 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Cable types supported | Cat5e |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Activity, Link, PoE, Power |
Power
| Specification | Value |
|---|---|
| Power source | PoE |
| Power protection features | Over voltage, Overload, Short circuit |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 85 W |
Other features
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 240 mm |
| Depth | 104 mm |
| Height | 29 mm |
| Weight | 660 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 155 mm |
| Package depth | 267 mm |
| Package height | 90 mm |
| Package weight | 920 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class B, CE, RoHS, UKCA, NDAA |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 280 mm |
| Master (outer) case length | 480 mm |
| Master (outer) case height | 340 mm |
| Master (outer) case gross weight | 9.32 kg |
| Products per master (outer) case | 10 pc(s) |
