Product comparison · 2 network switches

Intellinet 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough, 1x Ultra PoE++ IEEE 802.3bt (4PPoE) PD PoE Port with vs Intellinet 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power

42specifications compared
21differ
21identical
12known for one product only

Key differences

Basic switching RJ-45 Ethernet ports quantity
- 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough, 1x Ultra PoE++ IEEE 802.3bt (4PPoE) PD PoE Port with:8
- 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power:6
MAC address table
- 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough, 1x Ultra PoE++ IEEE 802.3bt (4PPoE) PD PoE Port with:2000 entries
- 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power:1000 entries
Switching capacity
- 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough, 1x Ultra PoE++ IEEE 802.3bt (4PPoE) PD PoE Port with:16 Gbit/s
- 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power:1.2 Gbit/s
Power source
- 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough, 1x Ultra PoE++ IEEE 802.3bt (4PPoE) PD PoE Port with:PoE
- 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power:AC/PoE
Total Power over Ethernet (PoE) budget
- 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough, 1x Ultra PoE++ IEEE 802.3bt (4PPoE) PD PoE Port with:85 W
- 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power:65 W
Storage temperature (T-T)
- 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough, 1x Ultra PoE++ IEEE 802.3bt (4PPoE) PD PoE Port with:-20 - 70 °C
- 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power:-10 - 70 °C
Operating relative humidity (H-H)
- 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough, 1x Ultra PoE++ IEEE 802.3bt (4PPoE) PD PoE Port with:10 - 90%
- 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power:5 - 95%
Width
- 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough, 1x Ultra PoE++ IEEE 802.3bt (4PPoE) PD PoE Port with:240 mm
- 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power:153 mm

Side by side

Differences highlightedShow differences only

Comparison of 561679-UK, 561686-UK

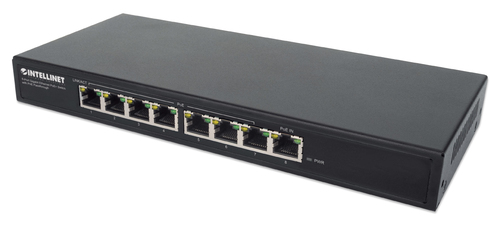

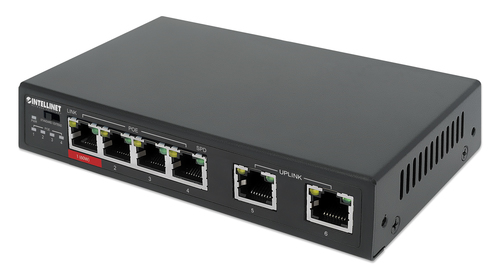

54 specifications	A Intellinet 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough, 1x Ultra PoE++ IEEE 802.3bt (4PPoE) PD PoE Port with Model 561679-UK View product	B Intellinet 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power Model 561686-UK View product
Ports & interfaces2 differ
Basic switching RJ-45 Ethernet ports quantityDiffers	8	6
Basic switching RJ-45 Ethernet ports typeDiffers	Gigabit Ethernet (10/100/1000)	Fast Ethernet (10/100)
Installed SFP modules quantity	0	0
Installed SFP+ modules quantity	0	0
Network1 differ
Networking standardsDiffers	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Cable types supported	Cat5e	Cat5e
Full duplex	Yes	Yes
Half duplexKnown for one	Unknown — not stated by the source	Yes
Auto-sensing	Yes	Yes
Flow control support	Yes	Yes
MAC address auto-aging supported	Yes	Yes
MAC address auto-learning supported	Yes	Yes
Auto MDI/MDI-XKnown for one	Yes	Unknown — not stated by the source
Ethernet LAN data ratesKnown for one	10,100,1000 Mbit/s	Unknown — not stated by the source
Data transmission2 differ
MAC address tableDiffers	2000 entries	1000 entries
Switching capacityDiffers	16 Gbit/s	1.2 Gbit/s
Store-and-forward	Yes	Yes
Packet forwarding rate (10 Mbps)	14880 pps	14880 pps
Packet forwarding rate (100 Mbps)	148800 pps	148800 pps
Packet forwarding rate (1 Gbps)Known for one	1488000 pps	Unknown — not stated by the source
Designidentical
Rack mountingKnown for one	Unknown — not stated by the source	No
Product colour	Black	Black
Housing materialKnown for one	Unknown — not stated by the source	Metal
LED indicators	Activity, Link, PoE, Power	Activity, Link, PoE, Power
Power1 differ
Power sourceDiffers	PoE	AC/PoE
Power supply includedKnown for one	Unknown — not stated by the source	Yes
AC input voltageKnown for one	Unknown — not stated by the source	100 - 240 V
AC input frequencyKnown for one	Unknown — not stated by the source	50/60 Hz
DC input voltageKnown for one	Unknown — not stated by the source	44 - 57 V
Power protection features	Over voltage, Overload, Short circuit	Over voltage, Overload, Short circuit
Power over Ethernet (PoE)1 differ
Power over Ethernet (PoE)	Yes	Yes
Total Power over Ethernet (PoE) budgetDiffers	85 W	65 W
Power over Ethernet (PoE) power per portKnown for one	30 W	Unknown — not stated by the source
Other featuresidentical
Warranty period	3 year(s)	3 year(s)
Operational conditions2 differ
Operating temperature (T-T)	0 - 40 °C	0 - 40 °C
Storage temperature (T-T)Differs	-20 - 70 °C	-10 - 70 °C
Operating relative humidity (H-H)Differs	10 - 90%	5 - 95%
Storage relative humidity (H-H)Known for one	5 - 95%	Unknown — not stated by the source
Weight & dimensions3 differ
WidthDiffers	240 mm	153 mm
DepthDiffers	104 mm	87 mm
Height	29 mm	29 mm
WeightDiffers	660 g	410 g
Packaging contentidentical
Manual	Yes	Yes
Packaging data4 differ
Package type	Box	Box
Package widthDiffers	155 mm	140 mm
Package depthDiffers	267 mm	190 mm
Package heightDiffers	90 mm	70 mm
Package weightDiffers	920 g	830 g
Certificatesidentical
Certification	FCC Class B, CE, RoHS, UKCA, NDAA	FCC Class B, CE, RoHS, UKCA, NDAA
Logistics data5 differ
Master (outer) case widthDiffers	280 mm	305 mm
Master (outer) case lengthDiffers	480 mm	400 mm
Master (outer) case heightDiffers	340 mm	380 mm
Master (outer) case gross weightDiffers	9.32 kg	18.9 kg
Products per master (outer) caseDiffers	10 pc(s)	20 pc(s)

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
