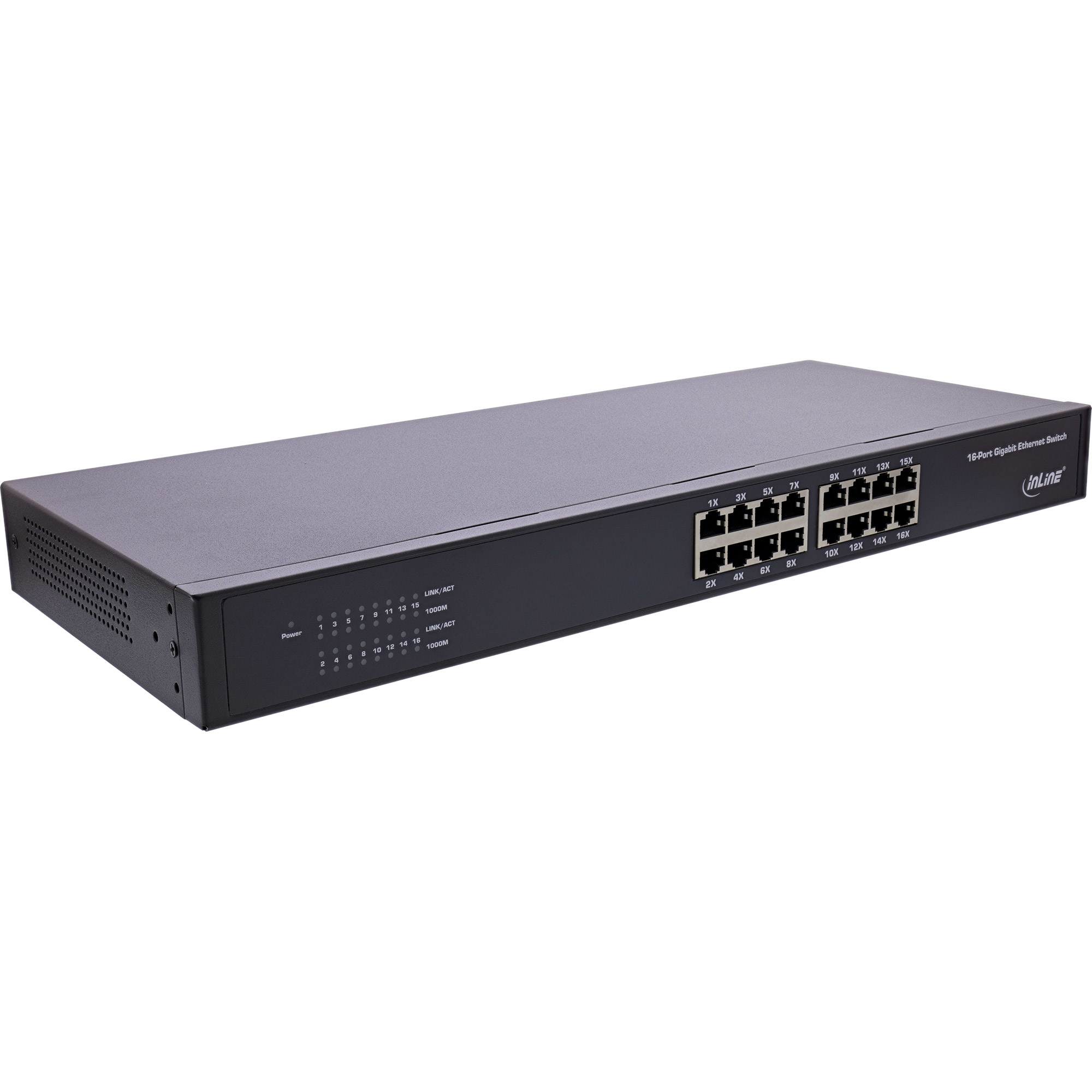

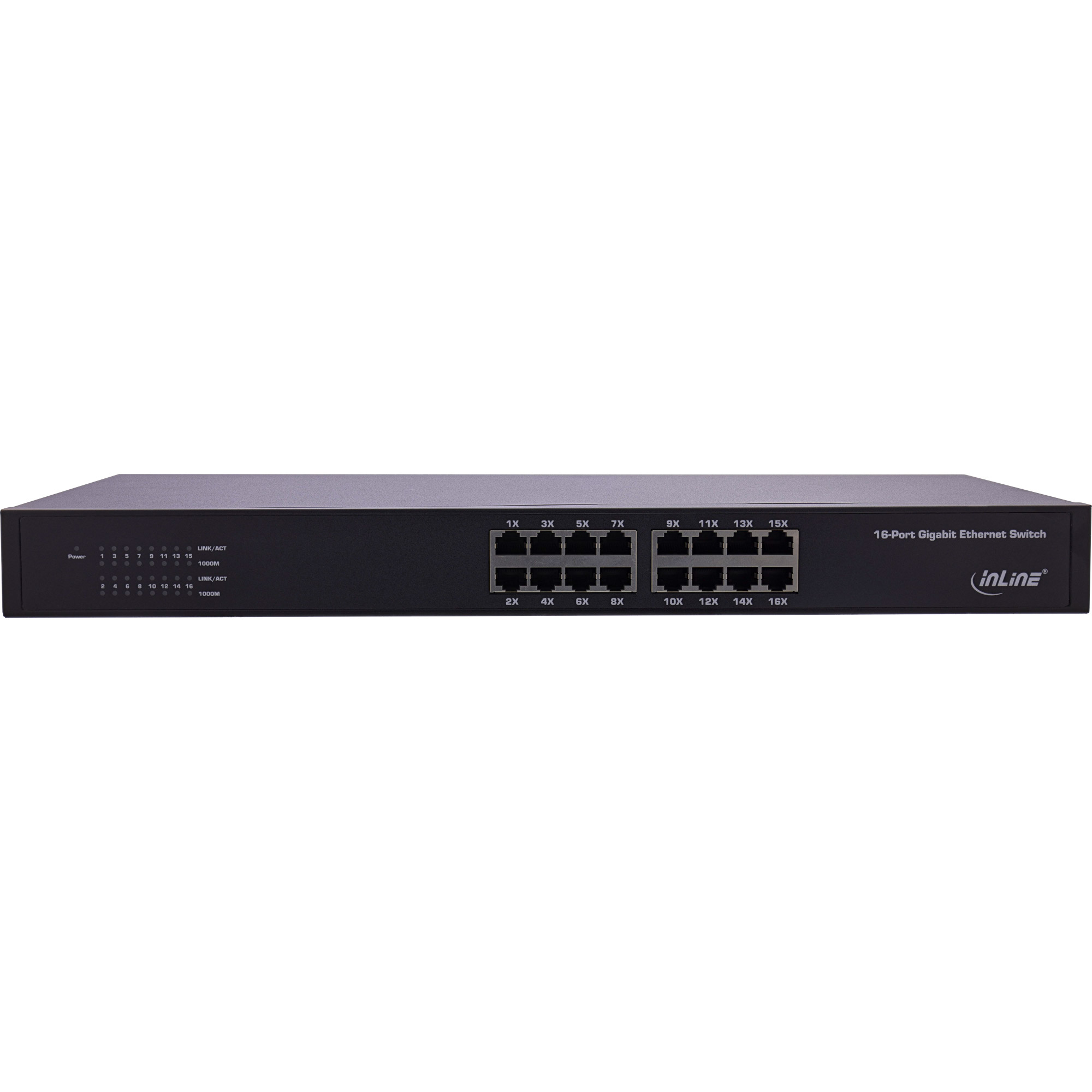

Gigabit Network Switch 16-Port
1Gb/s, 19" 1U, fanless
Model 32311OEAN 4043718298112
48 specifications
- Speed1000 Mbit/s
- Type1U
- Weight4.7 kg
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
Overview
- Speed
- 1000 Mbit/s
- Type
- 1U
- Weight
- 4.7 kg
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- Brand
- InLine
- Category
- Network Switch
- Model
- 32311O
- Part number
- 32311O
- EAN / UPC
- 4043718298112
- Also known as
- InLine Gigabit Network Switch 16-Port, 1Gb/s, 19" 1U, fanless
Specifications
48 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 21 W |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 24.39 x 180 mm |
| Ethernet LAN (RJ-45) ports | 16 |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 24.4 mm |
| Height | 180 mm |
| Weight | 4.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 260 mm |
| Package depth | 520 mm |
| Package height | 110 mm |
| Package weight | 1.76 kg |
