Product comparison · 2 network switches

InLine Gigabit Network Switch 16-Port vs InLine Gigabit Network Switch 24-Port

40specifications compared
12differ
28identical
14known for one product only

Key differences

Basic switching RJ-45 Ethernet ports quantity
- Gigabit Network Switch 16-Port:16

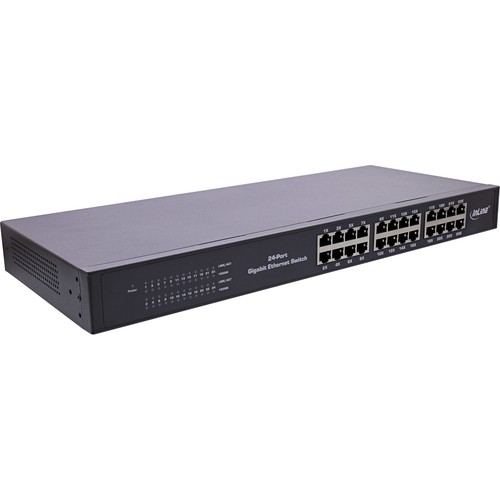

- Gigabit Network Switch 24-Port:24
MAC address table
- Gigabit Network Switch 16-Port:8000 entries
- Gigabit Network Switch 24-Port:16000 entries
Switching capacity
- Gigabit Network Switch 16-Port:32 Gbit/s
- Gigabit Network Switch 24-Port:52 Gbit/s
LED indicators
- Gigabit Network Switch 16-Port:Activity, Link, Power
- Gigabit Network Switch 24-Port:Activity, Link, Power, Speed
Dimensions (WxDxH)
- Gigabit Network Switch 16-Port:440 x 24.39 x 180 mm
- Gigabit Network Switch 24-Port:440 x 25.16 x 180 mm
Ethernet LAN (RJ-45) ports
- Gigabit Network Switch 16-Port:16
- Gigabit Network Switch 24-Port:24
Storage temperature (T-T)
- Gigabit Network Switch 16-Port:-40 - 70 °C
- Gigabit Network Switch 24-Port:-10 - 70 °C
Depth
- Gigabit Network Switch 16-Port:24.4 mm
- Gigabit Network Switch 24-Port:25.2 mm

Side by side

Differences highlightedShow differences only

Comparison of 32311O, 32324O
54 specifications	A InLine Gigabit Network Switch 16-Port Model 32311O View product	B InLine Gigabit Network Switch 24-Port Model 32324O View product
Ports & interfaces1 differ
Basic switching RJ-45 Ethernet ports quantityDiffers	16	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantityKnown for one	16	Unknown — not stated by the source
Installed SFP modules quantity	0	0
Installed SFP+ modules quantity	0	0
Power connectorKnown for one	AC-in jack	Unknown — not stated by the source
Networkidentical
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	No	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e	Cat3, Cat4, Cat5, Cat5e
Auto MDI/MDI-XKnown for one	Yes	Unknown — not stated by the source
Ethernet LAN data rates	10,100,1000 Mbit/s	10,100,1000 Mbit/s
Full duplexKnown for one	Unknown — not stated by the source	Yes
Data transmission2 differ
MAC address tableDiffers	8000 entries	16000 entries
Switching capacityDiffers	32 Gbit/s	52 Gbit/s
Store-and-forward	Yes	Yes
Jumbo frames support	Yes	Yes
Jumbo framesKnown for one	9216	Unknown — not stated by the source
Packet forwarding rate (1 Gbps)Known for one	Unknown — not stated by the source	1488000 pps
Packet forwarding rate (10 Mbps)Known for one	Unknown — not stated by the source	14880 pps
Packet forwarding rate (100 Mbps)Known for one	Unknown — not stated by the source	148800 pps
Design1 differ
Rack mounting	Yes	Yes
Form factor	1U	1U
Product colourKnown for one	Black	Unknown — not stated by the source
Housing material	Metal	Metal
LED indicatorsDiffers	Activity, Link, Power	Activity, Link, Power, Speed
Performanceidentical
Built-in processorKnown for one	Yes	Unknown — not stated by the source
Maximum data transfer rate	1000 Mbit/s	1000 Mbit/s
Fanless	Yes	Yes
Poweridentical
Power source	AC	AC
Power supply included	Yes	Yes
AC input voltage	100 - 240 V	100 - 240 V
AC input frequency	50 - 60 Hz	50 - 60 Hz
Power consumption (max)	21 W	21 W
Other features2 differ
Dimensions (WxDxH)Differs	440 x 24.39 x 180 mm	440 x 25.16 x 180 mm
Ethernet LAN (RJ-45) portsDiffers	16	24
Ethernet interface type	Fast Ethernet, Gigabit Ethernet	Fast Ethernet, Gigabit Ethernet
Operational conditions1 differ
Operating temperature (T-T)	0 - 40 °C	0 - 40 °C
Storage temperature (T-T)Differs	-40 - 70 °C	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%	10 - 90%
Storage relative humidity (H-H)	5 - 90%	5 - 90%
Weight & dimensions2 differ
Width	440 mm	440 mm
DepthDiffers	24.4 mm	25.2 mm
Height	180 mm	180 mm
WeightDiffers	4.7 kg	4.6 kg
Packaging contentidentical
Cables includedKnown for one	AC	Unknown — not stated by the source
Rack mount kit	Yes	Yes
Packaging data3 differ
Package typeKnown for one	Box	Unknown — not stated by the source
Package width	260 mm	260 mm
Package depthDiffers	520 mm	516 mm
Package heightDiffers	110 mm	107 mm
Package weightDiffers	1.76 kg	1.84 kg
Package volumeKnown for one	Unknown — not stated by the source	14400 cm³
Power over Ethernet (PoE)identical
Power over Ethernet (PoE)Known for one	Unknown — not stated by the source	No

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
