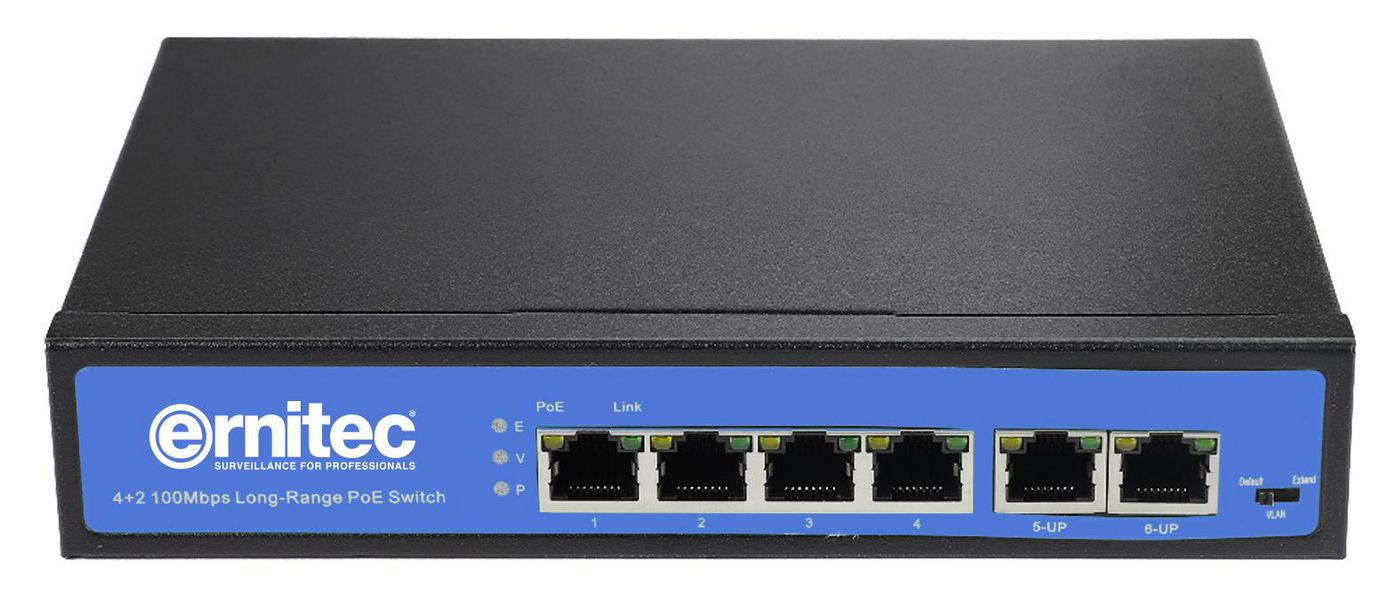

Unmanaged, 4 x 10/100Mbps PoE Ports, 2 x 10/100Mbps RJ45 Uplink Ports
Model ELECTRA-U04EAN 5715063037034
50 specifications
- Weight200 g
- ColourBlack, Blue
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity4
- Networking standardsIEEE 802.3af
- MAC address table2000 entries
Overview
- Weight
- 200 g
- Colour
- Black, Blue
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 4
- Networking standards
- IEEE 802.3af
- MAC address table
- 2000 entries
- Brand
- Ernitec
- Category
- Network Switch
- Model
- ELECTRA-U04
- Part number
- ELECTRA-U04
- EAN / UPC
- 5715063037034
- Also known as
- Ernitec Unmanaged, 4 x 10/100Mbps PoE Ports, 2 x 10/100Mbps RJ45 Uplink Ports
Specifications
50 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Uplink ports quantity | 2 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3af |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 1.2 Gbit/s |
| Forwarding rate | 0.89 Mpps |
| Store-and-forward | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Blue |
| LED indicators | Link, PoE, Power |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC/PoE |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 15 W |
| Total Power over Ethernet (PoE) budget | 65 W |
Other features
| Specification | Value |
|---|---|
| Warranty period | 5 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 35 mm |
| Height | 130 mm |
| Weight | 200 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 270 mm |
| Package depth | 220 mm |
| Package height | 605 mm |
| Package weight | 500 g |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
