Product comparison · 2 network switches

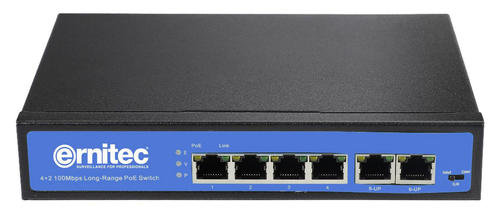

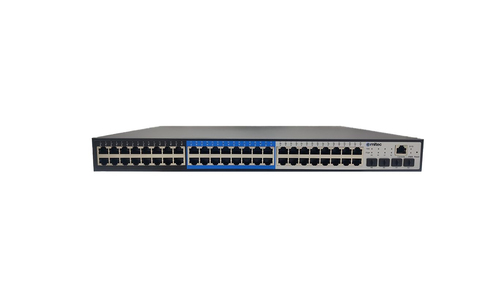

Ernitec ELECTRA-248/4 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) vs Ernitec Unmanaged, 4 x 10/100Mbps PoE Ports, 2 x 10/100Mbps RJ45 Uplink Ports

13specifications compared
11differ
2identical
37known for one product only

Key differences

Switch type
- ELECTRA-248/4 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):Managed
- Unmanaged, 4 x 10/100Mbps PoE Ports, 2 x 10/100Mbps RJ45 Uplink Ports:Unmanaged
Basic switching RJ-45 Ethernet ports quantity
- ELECTRA-248/4 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):48
- Unmanaged, 4 x 10/100Mbps PoE Ports, 2 x 10/100Mbps RJ45 Uplink Ports:4
Networking standards
- ELECTRA-248/4 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):IEEE 802.3
- Unmanaged, 4 x 10/100Mbps PoE Ports, 2 x 10/100Mbps RJ45 Uplink Ports:IEEE 802.3af
Width
- ELECTRA-248/4 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):440 mm
- Unmanaged, 4 x 10/100Mbps PoE Ports, 2 x 10/100Mbps RJ45 Uplink Ports:190 mm
Depth
- ELECTRA-248/4 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):360 mm
- Unmanaged, 4 x 10/100Mbps PoE Ports, 2 x 10/100Mbps RJ45 Uplink Ports:35 mm
Height
- ELECTRA-248/4 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):45 mm
- Unmanaged, 4 x 10/100Mbps PoE Ports, 2 x 10/100Mbps RJ45 Uplink Ports:130 mm
Weight
- ELECTRA-248/4 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):5.6 kg
- Unmanaged, 4 x 10/100Mbps PoE Ports, 2 x 10/100Mbps RJ45 Uplink Ports:200 g
Package width
- ELECTRA-248/4 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):553 mm
- Unmanaged, 4 x 10/100Mbps PoE Ports, 2 x 10/100Mbps RJ45 Uplink Ports:270 mm

Side by side

Differences highlightedShow differences only

Comparison of ELECTRA-248/4, ELECTRA-U04
50 specifications	A Ernitec ELECTRA-248/4 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Model ELECTRA-248/4 View product	B Ernitec Unmanaged, 4 x 10/100Mbps PoE Ports, 2 x 10/100Mbps RJ45 Uplink Ports Model ELECTRA-U04 View product
Management features1 differ
Switch typeDiffers	Managed	Unmanaged
Ports & interfaces1 differ
Basic switching RJ-45 Ethernet ports quantityDiffers	48	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantityKnown for one	Unknown — not stated by the source	0
Installed SFP+ modules quantityKnown for one	Unknown — not stated by the source	0
Uplink ports quantityKnown for one	Unknown — not stated by the source	2
Power connectorKnown for one	Unknown — not stated by the source	AC-in jack
Network1 differ
Networking standardsDiffers	IEEE 802.3	IEEE 802.3af
10G supportKnown for one	Unknown — not stated by the source	No
Copper ethernet cabling technologyKnown for one	Unknown — not stated by the source	10BASE-T, 100BASE-TX
Cable types supportedKnown for one	Unknown — not stated by the source	Cat3, Cat4, Cat5, Cat5e
Full duplexKnown for one	Unknown — not stated by the source	Yes
Half duplexKnown for one	Unknown — not stated by the source	Yes
Flow control supportKnown for one	Unknown — not stated by the source	Yes
MAC address auto-aging supportedKnown for one	Unknown — not stated by the source	Yes
MAC address auto-learning supportedKnown for one	Unknown — not stated by the source	Yes
VLAN supportKnown for one	Unknown — not stated by the source	Yes
Data transmissionidentical
MAC address tableKnown for one	Unknown — not stated by the source	2000 entries
Switching capacityKnown for one	Unknown — not stated by the source	1.2 Gbit/s
Forwarding rateKnown for one	Unknown — not stated by the source	0.89 Mpps
Store-and-forwardKnown for one	Unknown — not stated by the source	Yes
Designidentical
Product colourKnown for one	Unknown — not stated by the source	Black, Blue
LED indicatorsKnown for one	Unknown — not stated by the source	Link, PoE, Power
Wall mountableKnown for one	Unknown — not stated by the source	Yes
Performanceidentical
FanlessKnown for one	Unknown — not stated by the source	Yes
Poweridentical
Power sourceKnown for one	Unknown — not stated by the source	AC/PoE
Power supply includedKnown for one	Unknown — not stated by the source	Yes
AC input voltageKnown for one	Unknown — not stated by the source	100 - 240 V
AC input frequencyKnown for one	Unknown — not stated by the source	50/60 Hz
Power over Ethernet (PoE)identical
Power over Ethernet (PoE)	Yes	Yes
Power over Ethernet (PoE) ports quantityKnown for one	Unknown — not stated by the source	4
Power over Ethernet (PoE) power per portKnown for one	Unknown — not stated by the source	15 W
Total Power over Ethernet (PoE) budgetKnown for one	Unknown — not stated by the source	65 W
Other featuresidentical
Warranty periodKnown for one	Unknown — not stated by the source	5 year(s)
Operational conditionsidentical
Operating temperature (T-T)Known for one	Unknown — not stated by the source	-10 - 55 °C
Storage temperature (T-T)Known for one	Unknown — not stated by the source	-40 - 70 °C
Operating relative humidity (H-H)Known for one	Unknown — not stated by the source	10 - 90%
Storage relative humidity (H-H)Known for one	Unknown — not stated by the source	5 - 90%
Weight & dimensions4 differ
WidthDiffers	440 mm	190 mm
DepthDiffers	360 mm	35 mm
HeightDiffers	45 mm	130 mm
WeightDiffers	5.6 kg	200 g
Packaging contentidentical
Cables includedKnown for one	Unknown — not stated by the source	AC
Quick start guideKnown for one	Unknown — not stated by the source	Yes
Packaging data4 differ
Package widthDiffers	553 mm	270 mm
Package depthDiffers	403 mm	220 mm
Package heightDiffers	45 mm	605 mm
Package weightDiffers	6.45 kg	500 g
Sustainabilityidentical
Sustainability complianceKnown for one	Unknown — not stated by the source	Yes
Certificatesidentical
Compliance certificatesKnown for one	Unknown — not stated by the source	CE, Federal Communications Commission (FCC), RoHS, UKCA

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
