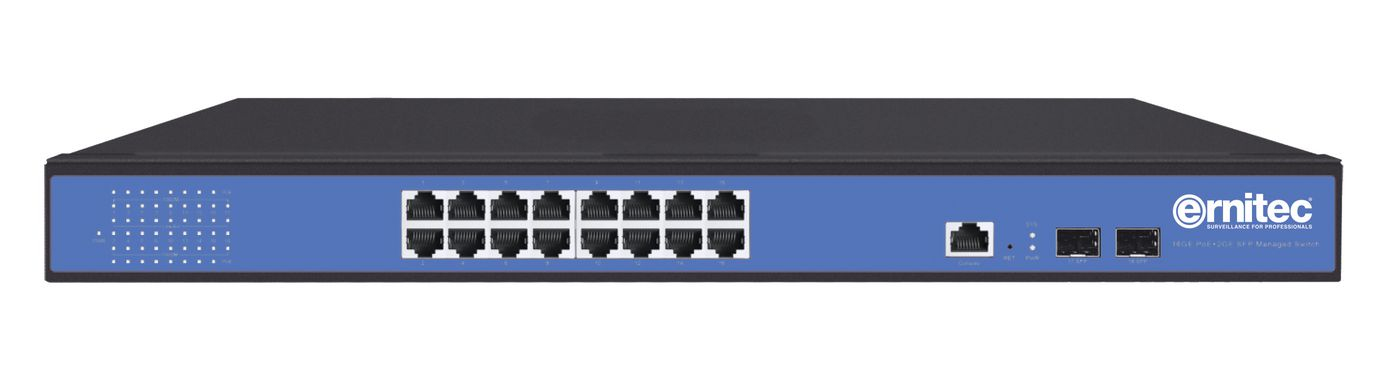

Managed Layer 2, 16 Gigabit ports, 2 Gigabit SFP ports
Model ELECTRA-M216/2EAN 5715063037058
76 specifications
- Weight800 g
- ColourBlack, Blue
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
- Fiber ethernet cabling technology1000BASE-X
Overview
- Weight
- 800 g
- Colour
- Black, Blue
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- Fiber ethernet cabling technology
- 1000BASE-X
- Brand
- Ernitec
- Category
- Network Switch
- Model
- ELECTRA-M216/2
- Part number
- ELECTRA-M216/2
- EAN / UPC
- 5715063037058
- Also known as
- Ernitec Managed Layer 2, 16 Gigabit ports, 2 Gigabit SFP ports
Specifications
76 specifications in 19 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| Console port | RJ-45 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 2.5GBASE-T, 100BASE-X, 1000BASE-T |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-X |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 36 Gbit/s |
| Forwarding rate | 26.8 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Port-based authentication |
| Authentication type | AAA, IEEE 802.1x, RADIUS, TACACS+ |
| IP-MAC-Port binding | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| Queue scheduling algorithms | SP, WFQ, Weighted Round Robin (WRR) |
| Security algorithms | 802.1x RADIUS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Command Line Interface (CLI) through console port, telnet and SSH; Trap/Inform RMON (1, 2, 3, 9) groups; SNTP; Traceroute; Ping; BOOTP Client |
| IPv4 & IPv6 features | IPv6 SSH, IPv6 Path MTU Discovery, ICMPv6, IPv6 SNMP, IPv6 TFTP, Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 tracert |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black, Blue |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
Performance
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC/PoE |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 16 |
| Power over Ethernet plus (PoE+) ports quantity | 11 |
| Power over Ethernet (PoE) power per port | 21.8 W |
| Total Power over Ethernet (PoE) budget | 350 W |
Other features
| Specification | Value |
|---|---|
| Warranty period | 5 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 200 mm |
| Height | 45 mm |
| Weight | 800 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.2 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
